Description
Features of ODB Fiber Distribution Box
- Total enclosed structure with key and buckles.
- High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging.
- Outdoor wall mount, pole mount or aerial mount, protection level up to IP65.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc. all in one.
- Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
Specification
| Model | FDB0216HF-A | FDB0216HF-B | FDB0216HF-C |
| Dimension (A*B*C) | 290*210*82mm | ||
| Cable entry | 1 uncut port, 2 cable glands:ᴓ12.5-15 mm | ||
| Cable exit | 16pcs 2x3mm flat ports with rubber boot | ||
| Max. Capacity | 24core | 16cores | 16cores |
| Adapter quantity | 16SC | 18SC | – |
| Splitter quantity | 2pcs 1×8, or 1pc 1×16 mini splitter | 2pcs 1×8 mini splitter | 2pcs 1×8 or 1pc 1×16 LGX splitter |
| Waterproof grade | IP65 | ||
| Material | PC+ABS | ||
| Color | black | ||
Detailed Display of ODB Fiber Distribution Box
Made of durable, weather-resistant plastic (likely ABS or PC/ABS composite), this box ensures protection against outdoor elements like rain, dust, and UV radiation. And there is a secure screw lock, which makes sure the box remains closed and tamper-proof during operation.

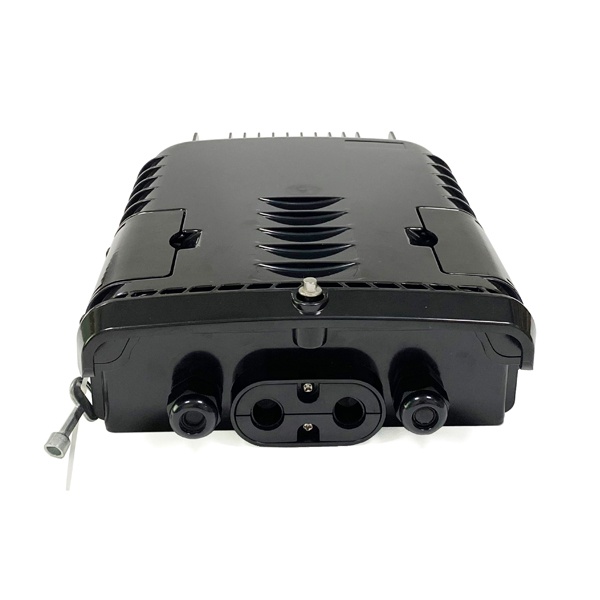

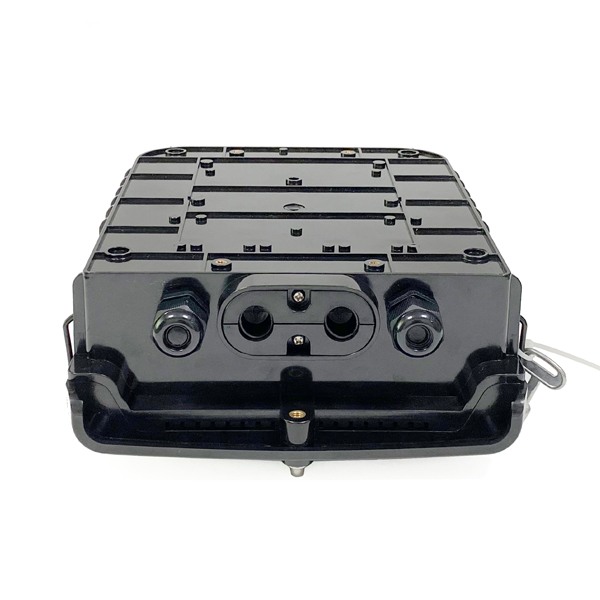

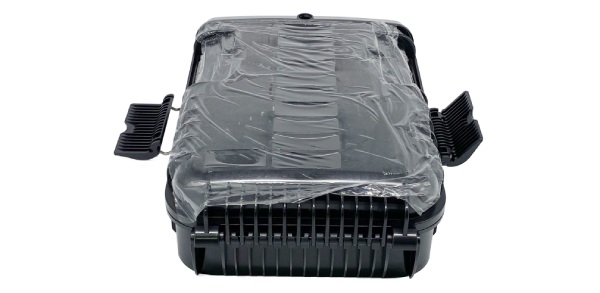

On both sides of the box, there are latches, which are black, located and are designed to securely close the lid. The latches appear to be sturdy and are part of the enclosure’s mechanism to keep the internal components protected. The lower part has a structure for fixing incoming/outgoing cables and stripping fiber jackets, ensuring fibers are properly prepared for splicing or connection.
Moreover, there is a warning label inside the lid cautions against optical radiation, reminding users to handle with care to avoid eye damage.
A circular splice tray is present, designed to hold and protect fiber splices (connections between fibers). It can accommodate multiple fusion splices, providing organization and strain relief. The design allows for easy expansion, as additional splice trays or adapter panels can be added to accommodate more fibers as the network grows.

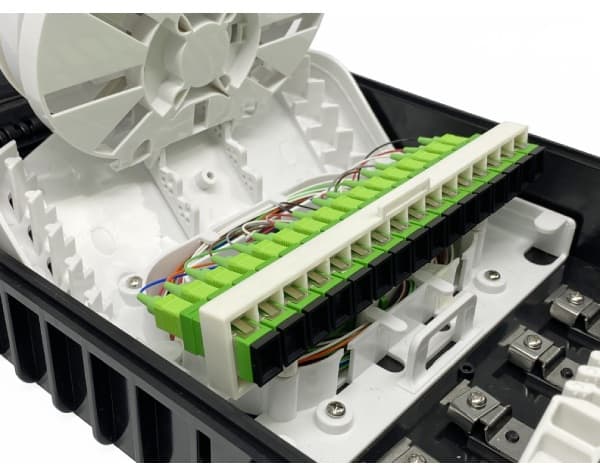

Features a row of green fiber SC adapters, which are used for connecting patch cords. These adapters enable the distribution of optical signals to different users or devices.

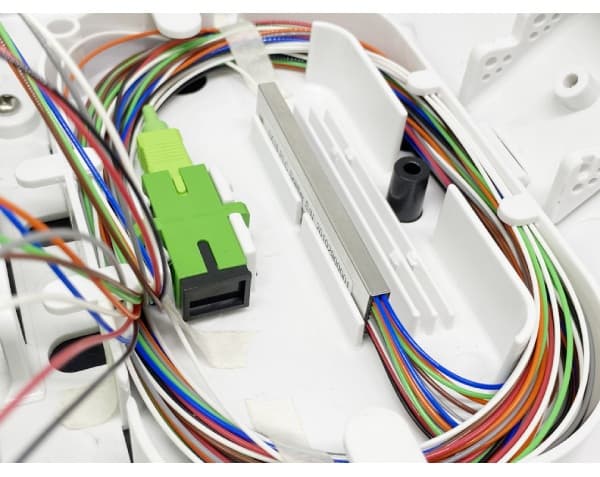

2pcs 1×8 or 1pc 1×16 mini splitter are both suitable for it. There are multiple colorful optical fibers (in red, blue, green, orange, and other colors) neatly arranged and routed. A green fiber optic adapter is visible, which is used for connecting optical fibers. Also present is a component for fiber management, ensuring the fibers are organized and protected. This setup is typical in fiber optic networks for managing, terminating, and connecting optical fibers.

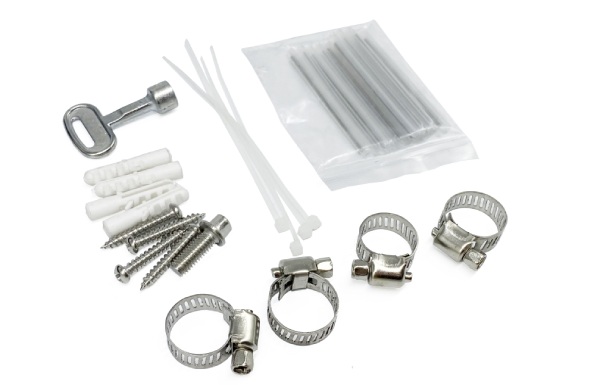

The following picture displays a collection of hardware components arranged on a white background. Included are: a metallic key, several white plastic wall anchors, a set of metal screws, white nylon cable ties, a plastic bag containing metal rods, and four metal hose clamps (also known as worm gear clamps) used for securing hoses or cables. These components are typical hardware items used for installation, fastening, and organization in various projects.
