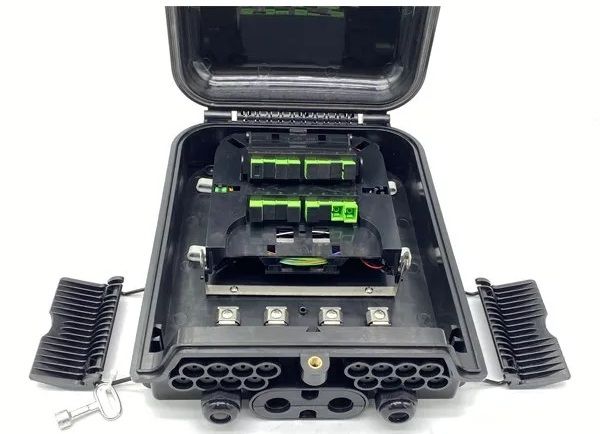

New Black Ip65 Outdoor Fdb Fiber Distribution Box, 16 Round Ports, 4 Cable Entry, 1×16 1×8 Splitter

Description

Features of FDB Fiber Distribution Box

• Total enclosed structurewith key and buckles
• High strength engineer plastic,wet-proof, water-proof, dust-proof, anti-aging
• Outdoor wall mount, pole mount or aerial mount, protection level up to IP65
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one
• Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

Specification

Detailed Display of FDB Fiber Distribution Box

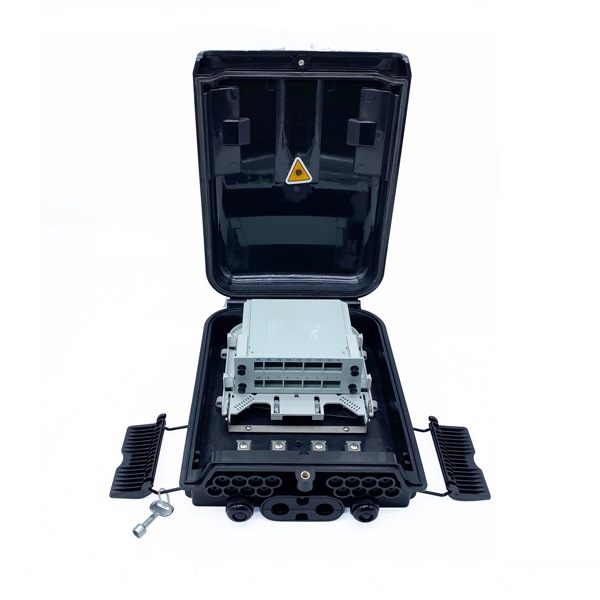

Equipped with a locking mechanism (visible with a key), providing physical security and preventing unauthorized access. The enclosure has tight seals to maintain an IP-rated (Ingress Protection) environment, crucial for outdoor applications. 2pcs 1×8 or 1pc 1×16 mini splitter are both compatible with this box.

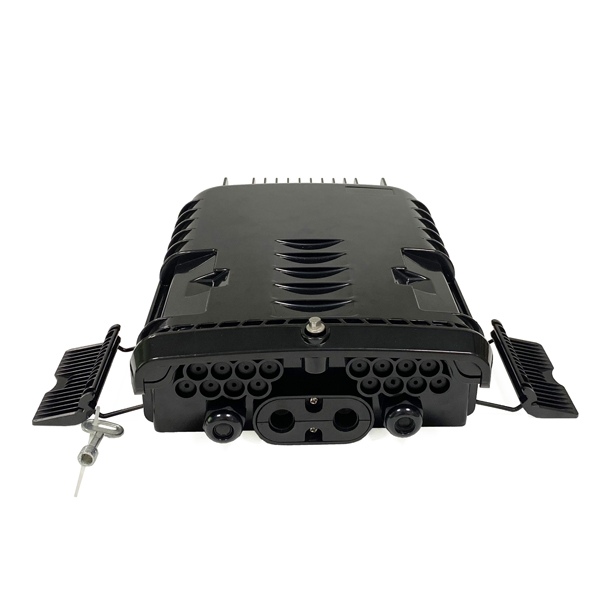

On both sides of the box, there are latches. They are black, and are designed to securely close the lid. The latches appear to be sturdy and are part of the enclosure’s mechanism to keep the internal components protected.

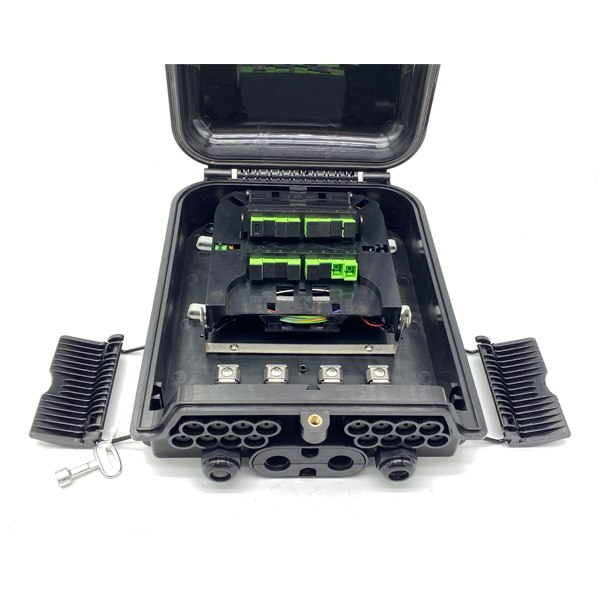

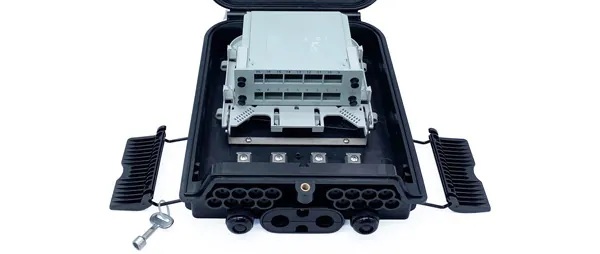

Outdoor fiber optic distribution boxes are typically multi-functional solutions. To cater to diverse customer requirements while retaining a consistent external structure, their internal designs commonly feature three distinct configurations.

However, in numerous scenarios, only two design options are available. You can select the one that aligns best with your requirements based on the specific details of your project.

Here take Option B as an example to display the details:

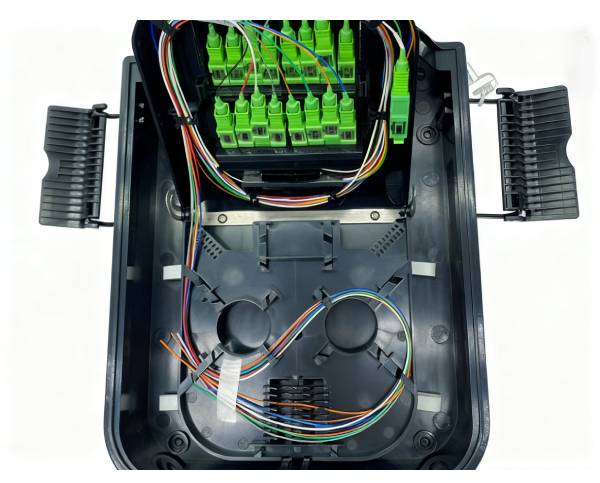

It is integrated cable entry/exit ports (multiple circular openings at the bottom/side) and cable organizers (like the black spool-like structures for fiber coiling) to manage fiber optic cables neatly, avoiding bends or stresses that could damage the fibers.

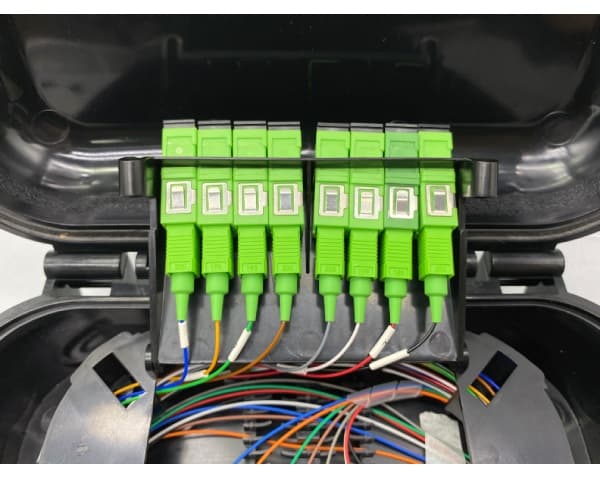

This box features fiber optic adapters (the green SC/APC connectors visible in several images) that enable the connection between patch cords and the terminated fibers. These adapters are arranged in panels for easy access and management.

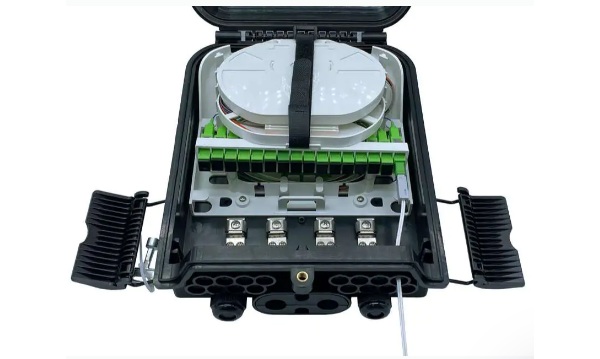

The box comes in different form factors and capacities. For example, one variant shown has multiple adapter ports (e.g., 16 or 18 green connectors), indicating it can serve several end-users or network segments. The modular design allows for expansion or customization based on the network’s fiber distribution needs.

Optional Accessory

SC Adapter	1:8 Splitter	SC Type Pigtail	Cassette splitter 1 * 8
SC/APC, green SC/UPC, blue IL<0.2dB	Mini Splitter 1×12,1×4,1×8	SC Type Pigtail IL<0.3dB	Casstte module size:130*100*25mm SC/UPC, SC/APC connectors
