Description
FTTH drop cable type fiber optic splice & splitter closure features with ruggedness, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design help user get better experience.
Fiber Optic Splitter Distribution Box Feature:
- Dis-mountable adaptor panel
- Support midspan termination
- Easy operation and installation
- Rotable and dis-mountable splice tray for easy splicing
- Outdoor wall mounting and pole mounting
- 2x3mm indoor ftth drop cable and outdoor figure 8 ftth drop cable
Fiber Optic Splitter Distribution Box Application
- Outdoor wall mounting, pole mounting, pipe-lined
- 2*3.0mm indoor FTTH drop cable and outdoor figure 8 FTTH drop cable
Fiber Optic Splitter Distribution Box Specification
| Model | FDB0216F | FDB0224F | FDB0224G | ||
| Dimension(mm) | 385*245*130 | 385*245*155 | 385*245*130 | ||
| Cable ports | 1uncut port | 2round ports | 1uncut port | 2round ports | 1uncut port |
| Applicable cable diameter(mm) | 10-17.5 | 8-17.5 | 10-17.5 | 8-17.5 | 10-17.5 |
| Drop cable ports | 16ports | 24portss | 24ports | ||
| Applicable cable | 2*3mm ftth drop cable, 2*5mm figure 8 ftth drop cable | ||||
| Maximum Splicing | 48 fibers (4 trays, 12 fibers/tray) | ||||
| Applicable Splitter | 1x 1*16 (PLC) ; 2x (1*8 (PLC) | ||||
| Impact Test | IK10 | ||||
| Pull-force | 100N | ||||
| Mid-span Entry | yes | ||||
| Storag((Tube/Micro Cable) | yes | ||||
| Material | Modified polymer plastic | ||||
| Color | Black | ||||
| Net weight | 4kgs | ||||
| Gross weight | 4kgs | ||||
| Packaging | 540*410*375mm (4pcs per carton) | ||||
You can visit the impact test like below:
https://www.facebook.com/reel/1423647954983635

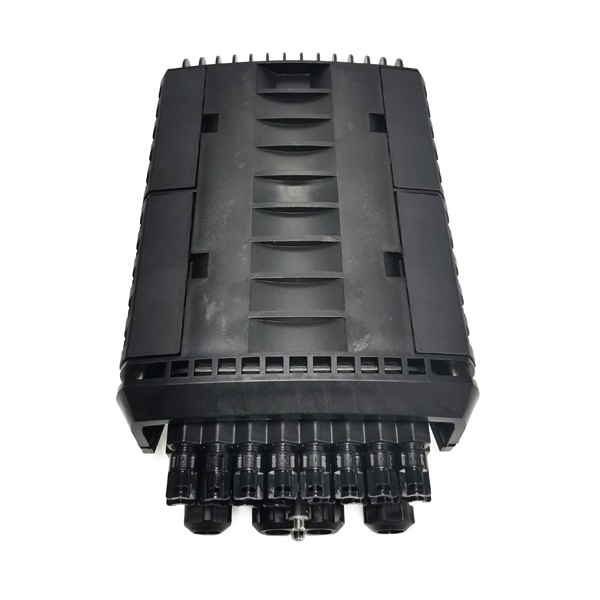

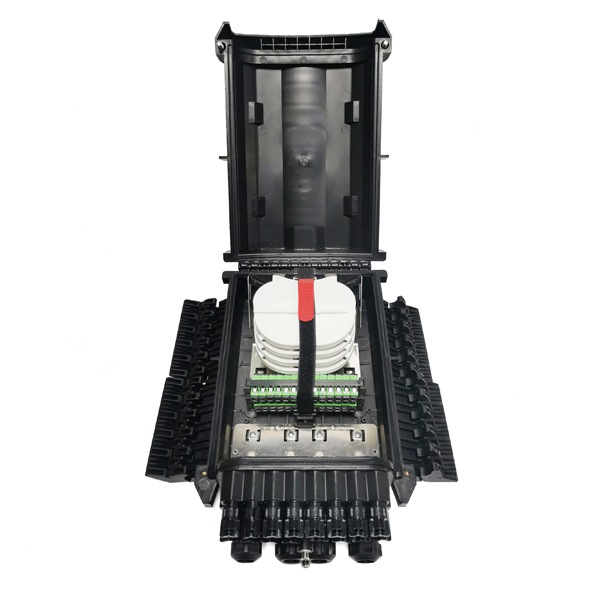

FDB0216F Splitter Distribution Box Product Details

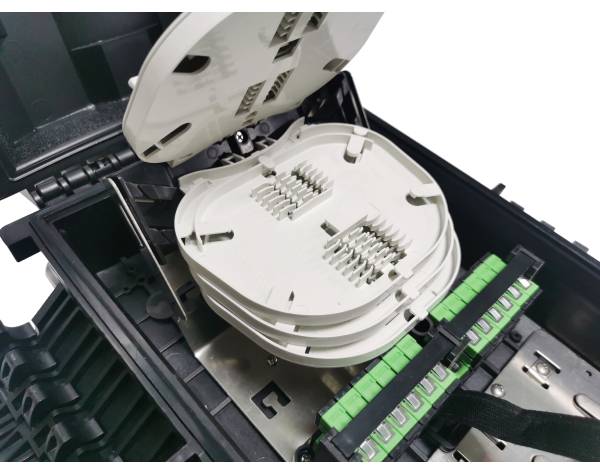

Each of the splice tray is brand new ABS materials, white color, the tray cover with a fiber management tool. There are 12 slots for fiber optic pigtails fusion splicing and storage, and 1 slot for steel tube size 60*7*4mm for 1×2 1×4 1×8 mini splitters. And there is cable winding guiding rails at back of the tray and can fix the tray on the bottom stainless steel holders by hand.

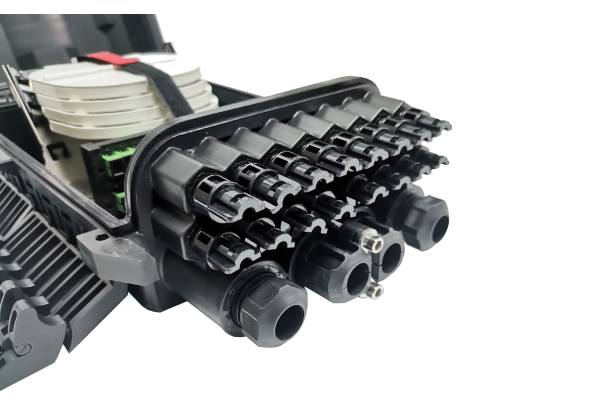

Yingda will configure with all necessary mounting kits on delivery: drop cable port opening tool, big round ports wrench, mounting expansion screws, clip for cover fixture, nylon ties, buffer tube, spiral tubes, rubber plugs and gaskets, insulating tape, sealant, heat shrink sleeve, cleaning tissue, etc

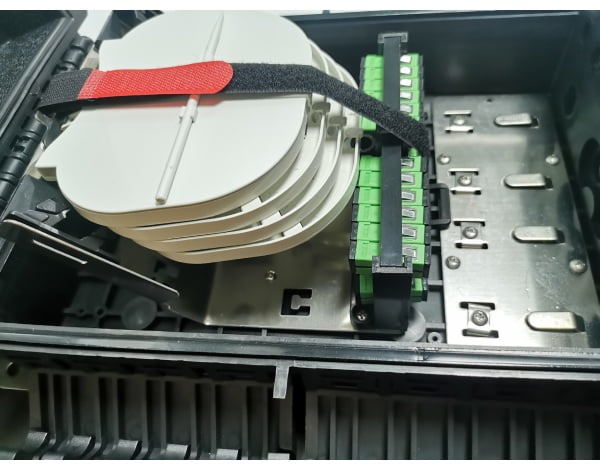

The splitter input and output can be guided into the splice tray, and the outputs pigtails of the splitter will fix on the adapter plates, total can load 16pcs SC simplex adapters with flange by 4pc adapter plates.
This outdoor fiber optic splitter distribution box can use on wall or pole. If mounting on wall, due to the box is very heavy (empty box net weight will be 4kg each), so many clients choose 2 metal sheets to hold it more tightly, like below:
This 16 ports ftth drop cable closure can wall mounting or pole mounting, all metal parts are stainless steel materials.
If pole mounting, it can be 1 or 2 metal sheets with 2 stainless steel clamps, if harsh environment, suggest to upgrade into SS304 stainless steel.
The same IP68 structure and function closures are like below:
FDB0224G FDB0224F FDB0216F-S
