Description
Features of Fiber Distribution Unit
- Box totally closed with rubber seal and bracket, dust proof waterproof protection class IP65.
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance.
- FTTH outdoor wall mount or pole mount.
- High quality engineering plastic, all metal parts stainless steel, life span>20years.
- 2layer splice tray set, 1 for adapter and splitter tube fix, the other for fusion, storage and management.
- Good cable clamp and fixture for entry and exit, and large redundant fiber routing area with reasonable bend radius.
Specification
| Model | FDB0216B |
| Dimension (A*B*C) | 295*245*130mm |
| Max. Capacity | 16 cores (single fiber) |
| Cable ports | 2mid span, 16 out |
| Cable diameter | 2 uncut ports: Φ8-Φ15mm, or Φ6-Φ8mm;
16 drop cable ports: 2*3mm or 4.5*5.3mm |
| Splitter quantity | 1×16 or 2pc 1×8 steel tube |
| Material | PP+GF |
Detailed Display of Fiber Distribution Unit
A robust, sealed black enclosure with a secure locking mechanism to maintain integrity. This box can be mounted using metal brackets for wall, pole, or rack installation.
Multiple cable entry/exit ports accommodate incoming and outgoing fiber cables. These ports are equipped with gaskets or seals to maintain the enclosure’s weatherproofing, supporting different cable diameters and including strain relief features to protect fiber cables from mechanical stress.

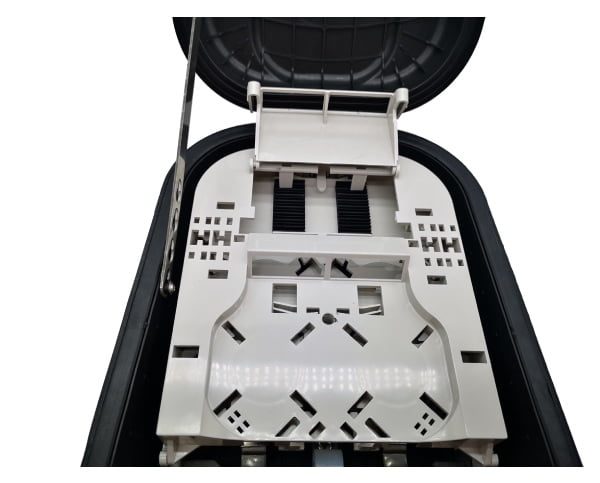

Black fiber holders and various routing slots keep fibers organized, preventing tangling and ensuring minimal bend radius to avoid signal loss. And rows of fiber optic connectors (likely SC, LC, or FC types) are integrated for easy fiber termination and connection.
Two circular splice trays are provided for organizing and protecting fiber optic splices. These trays allow for efficient fiber routing and management. Based on the internal trays and connector count, it likely supports splitter with 1×16 or 2pc 1×8 steel tube.
Optional Accessory
|
SC Adapter |
1:8 Splitter |
SC Type Pigtail |
 |
 |
 |
| SC/APC, green
SC/UPC, blue IL<0.2dB |
Mini Splitter
1×12,1×4,1×8 |
SC Type Pigtail IL<0.3dB |
