Plastic Optical Fiber Distribution Box 12 Ports Sc Apc Pigtails / 1×8 Splitter Cassette, 2 In 12 Out For Fttx Drop Cable, With Grounding Wire

Description

Features of Optical Fiber Distribution Box

• Box is with small special lock with 2clips
• It is applicable for outdoor cables or indoor soft cable
• The box can use for a minimum period of 20 years
• FTTH outdoor wall mounted or pole mount
• Box with waterproof circle, protection class IP65
• High quality ABS+PC plastic, all metal parts stainless steel
• Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance
• Rotating splice plate front with 12SC adapter fix, back with 12cores fusion splice and routing area
• Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius

Specification

Detailed Display of Optical Fiber Distribution Box

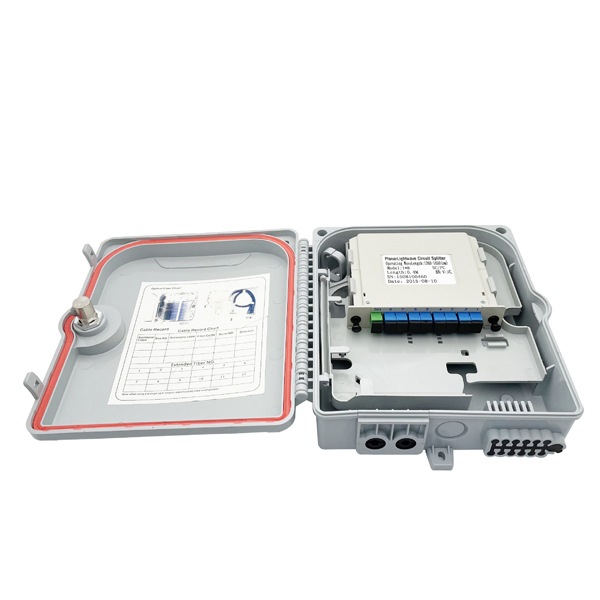

This box has a hinged lid that can be opened and closed securely. Its lid could be fully opened, revealing the internal components. There are also locking mechanisms (visible as a knob on the lid) to ensure the box stays closed when needed. It is made of durable plastic in light gray, providing good protection against environmental factors like dust, moisture, and minor physical impacts.

There are multiple green and black fiber adapters (connectors) where optical fibers can be plugged in. These adapters allow for the connection of patch cords or pigtails.

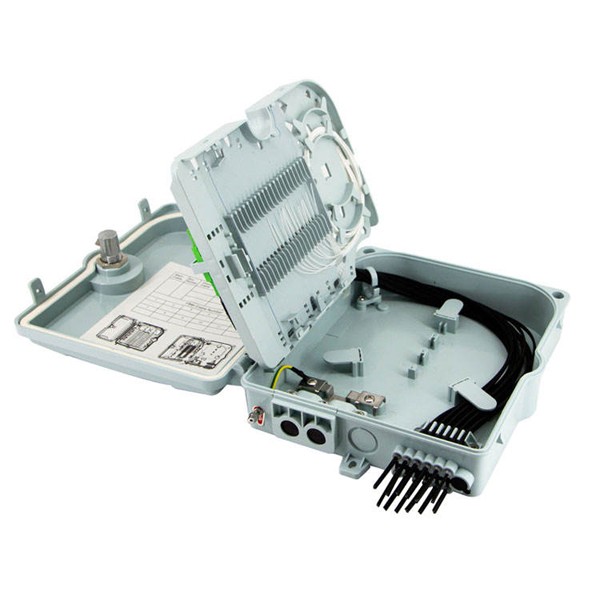

The following picture shows a tray that can be lifted or opened. This tray is used for splicing optical fibers (joining two fibers together) and managing the slack of fibers. It has slots and guides to organize the fibers, preventing them from being bent excessively (which could damage the fiber or affect signal transmission).

At the bottom of the box, there are several ports for incoming and outgoing fiber optic cables. The black fibers visible at the bottom are the incoming or outgoing cables, and there are also rubber grommets or seals around these ports to maintain the box’s integrity against dust and moisture.

Inside the lid, there is a printed label or form that can be used to document the fiber connections, making it easier for technicians to identify and manage different fibers.

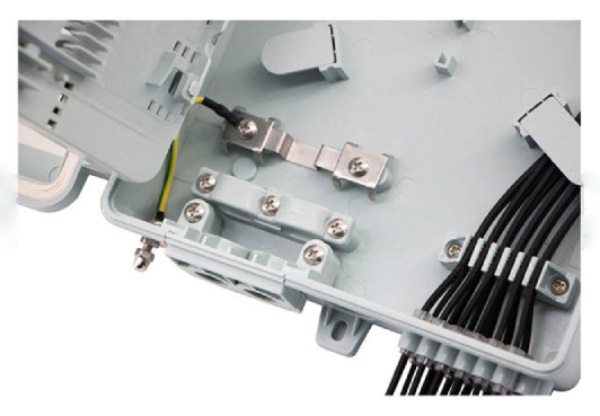

There are metal grounding parts with screws, including a grounding wire (visible with a yellow-green sheath), ensuring electrical safety and preventing static interference. On the right side, multiple black fiber optic cables are neatly organized and secured, likely entering or exiting the box. The cables are held in place by a cable management fixture, maintaining order and preventing damage. Various metal screws and fixtures are present, used for securing internal components, ensuring the box’s structural integrity and the stability of the fiber optic connections.
