Description

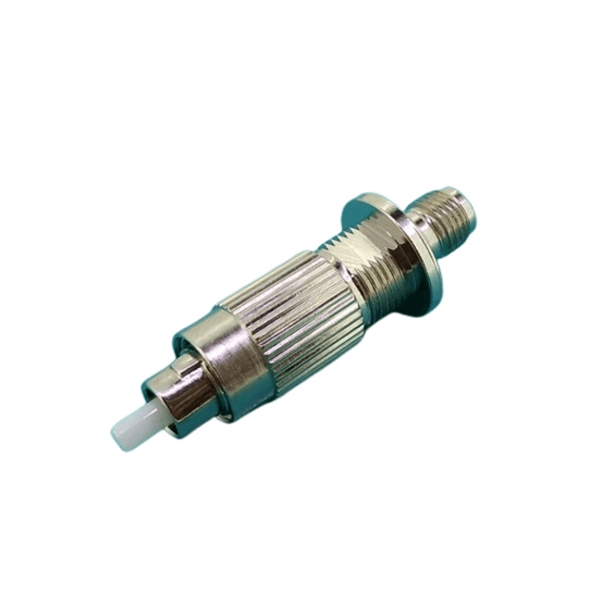

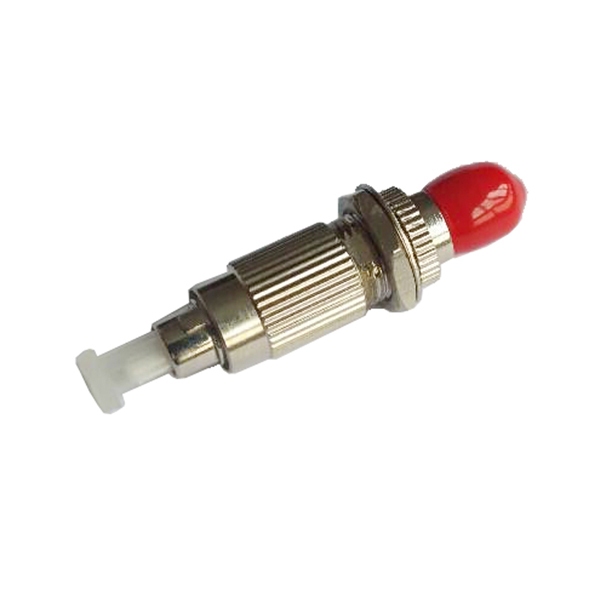

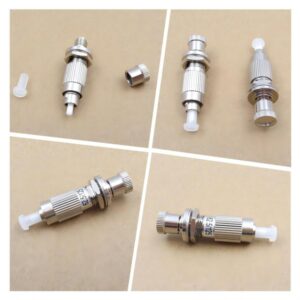

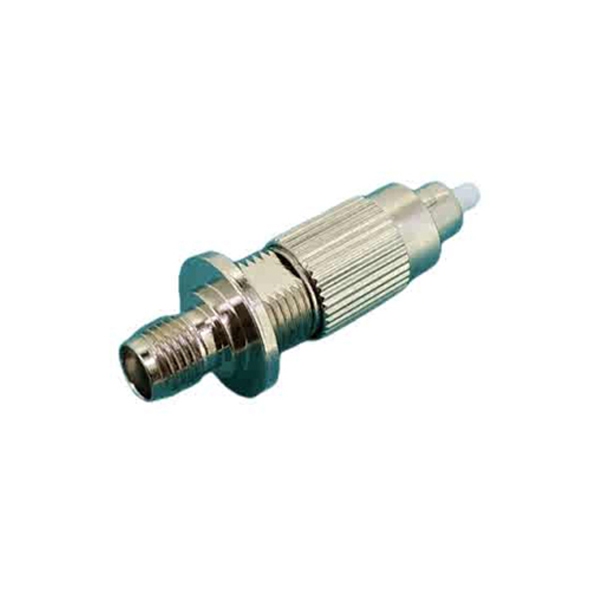

The male-to-female fiber optic adapters inexpensively adapt connector interfaces to new equipment, upgrade distribution panels and eliminate the need to re-terminate cable assemblies.
Features
- Adopt high precise ceramic sleeve, high reliability and interchangeability
- Single mode or multi-mode connector can be used interchangeability
- Low insertion loss, high return loss
- Compliance with IEC and ROHS standards
- All types of connectors available
- Custom logo or brand available
- Sample is available, fast delivery
- 100% qualified test before delivery
Application
- Telecommunications, Networking, and Broadcasting
- Optical Data Transmission Connections
- Fiber Optic Equipment Testing and Emergency Repair Construction
Technical parameter
| Item | Parameters | |
| Single mode (SM 9/125) | Multi-mode (MM 50/125, 62.5/125) | |
| Insertion Loss | ≤0.5dB | ≤0.5dB |
| Return Loss | ≥45dB | ≥30dB |
| Durability (500 Mating) | Max.0.2dB | |
| Operating Temperature | -40℃~+75℃ | |
| Storage Temperature | -40℃~+85℃ | |
KIND NOTE:
- You may customize the male connector as either UPC or APC, but the female connector is available in UPC only.
- For the fiber type, you may select SM-9/125µm single-mode fiber, or OM1 62.5/125µm, OM2 50/125µm, or similar multi-mode fibers
