Description
Attenuation In Single Mode Fiber
- In accordance with bellcore GR-910-CORE standard
- Adopt high attenuation fiber with the cladding mode suppression design, good optical performance
- Easy connection with coupling structure
- Attenuation precise and high return loss
- Female to female interface

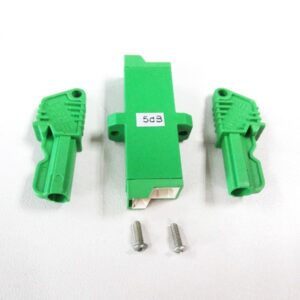

- Customize SC LC FC ST E2000 MPO D4 SMA905, etc
- Attenuation loss can be 1dB, 3dB, 5dB 10dB 15dB till 30dB.
FC Attenautor Specification
| Item | SM 9/125um single mode | Multimode 50/125um&62.5/125um | |
| Operating wavelength | 1310&1550nm | 850&1300nm | |
| Attenuation value | 0~20dB (1 step) | ||
| Connector type | SC FC ST LC MU | ||
| Tolerance | 0-9dB | ±0.5dB | |
| 10-20dB | ±10% | ||
| Return loss | PC≥45dB, UPC≥50dB,APC≥60dB | ||
| Temperature range | – 40 ~+75 ℃ | ||
Attenuation In Single Mode Fiber Details

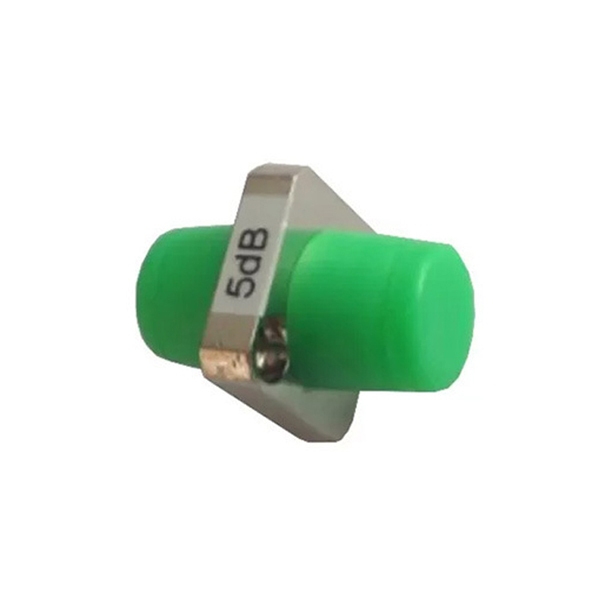

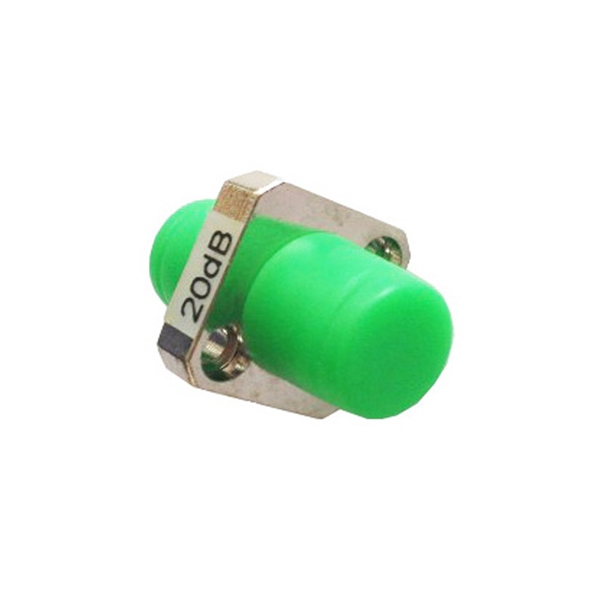

The FC APC attenuator uses a brand-new metal material and features either a one-piece or separate component structure. After passing factory testing, each connector is fitted with a dust cap.

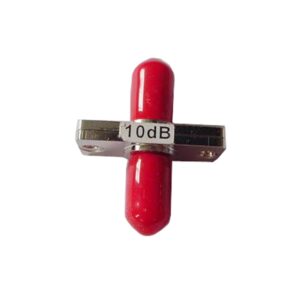

This fixed optical attenuator can only attenuate a fixed optical power, such as 3dB, 5dB, 15dB, 20dB, 25dB, etc. It is an attenuator designed for FC connectors, with a female-to-female connection. It is secured by screwing it in after insertion.
All Yingda fiber optic attenuators built-in single-mode attenuating fibers and are tested at 1310nm and 1550nm wavelengths before shipment. They utilize high-quality ceramic ferrules to secure the fibers, ensuring high attenuation accuracy and excellent stability, with a mating cycle of up to 1000 times. They are widely used in optical transceivers, optical modules, distribution frames (ODF), optical power meters, test equipment, medical equipment, and other products.
