Description
Features of Fiber Splitter Box
- Box is with small special front lock with 2 buckles and 1 screw rod;
- High strength engineering plastic, whole box is enclosed with waterproof circle, protection class IP65;
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance;
- 4pcs splice trays, 2 for fusion, 2 for splitting;
- All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion;
- Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius;
- Top cover with laser mark, and large space for logo or wiring diagram printing;
- FTTH outdoor wall mounted, pole mount, aerial mount;
- It is applicable for outdoor cables or indoor soft cable;
- The box can use for a minimum period of 20 years.
Specification
| Model | FAT-8R | FAT-16R |
| Dimension | 319.3*200*97.5mm | 319.3*214*133mm |
| Adapter | 8pcs SC adapter | 16pcs SC adapter |
| Splitter qty and type | 1pc pcs 1:8 mini splitter | 2pcs pcs 1:8 splitter or 1pc 1:16 mini splitter |
| Cable outlet | 8pcs SC connector with waterproof plugs | 16pcs SC connector with waterproof plugs |
| Cable inlet | 2big round: ᴓ8~14mm, branch cable:ᴓ16mm | |
| Max. Capacity | 40 cores single fiber | |
| Minimum fiber bending | ≥30mm | |
| Color | Grey, black | |
| Protection grade | IP65 | |

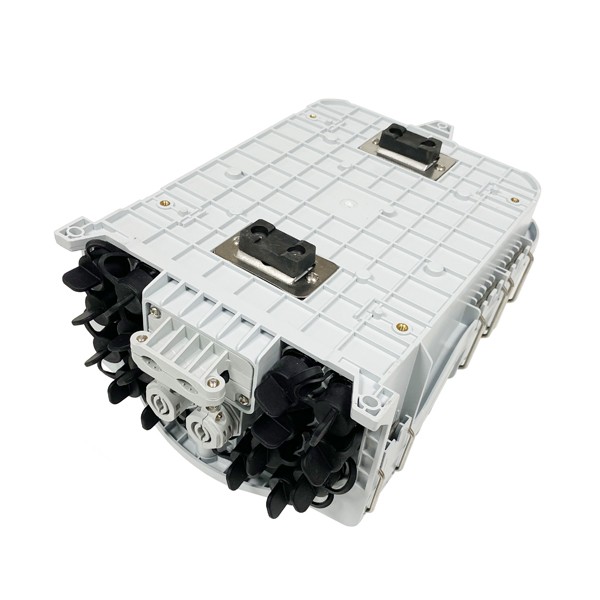

Details of Fiber Splitter Box

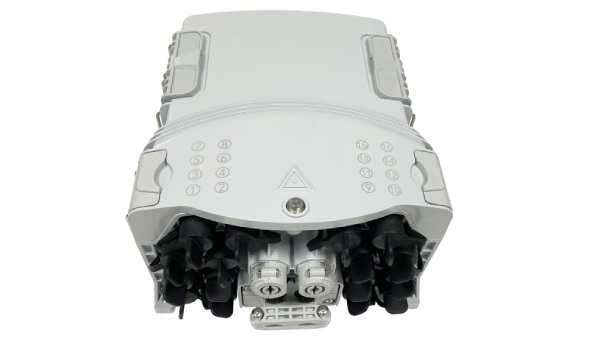

The following picture is the front exterior view of the fiber optic terminal box. It features a light grey (could also be customized in black), rugged plastic casing. On the front, there are two sets of numbered labels (1-8 on the left and 9-16 on the right), for indicating ports for fiber optic cables. At the center, there’s a warning triangle symbol. Below the numbers and symbol, there are multiple fiber optic cable entries/exits with black connectors, and two metallic adapter ports (for fiber optic SC adapter) are also visible, designed for secure fiber connections. The casing has structural reinforcements on the sides, ensuring durability.

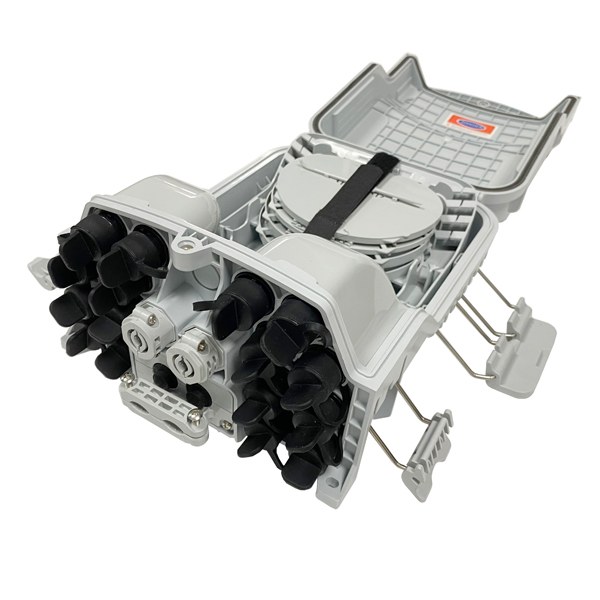

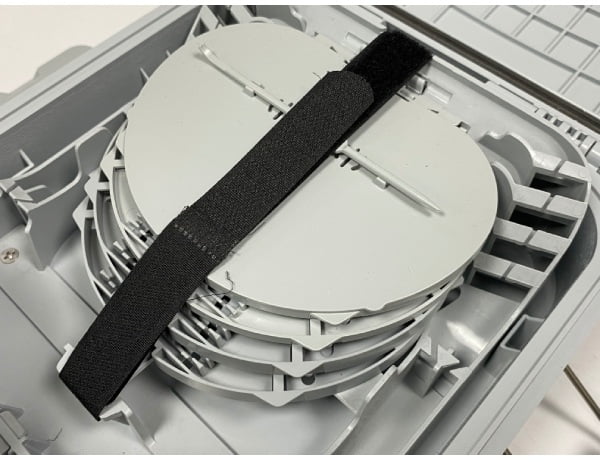

Inside, there are circular fiber optic splice trays, which are used for organizing and protecting fiber optic splices. A black hook-and-loop fastener strap is placed across the tray, serving to secure the fibers and keep them neatly arranged, preventing tangling and ensuring proper management of the fiber optic cables within the box. 1pc pcs 1:8 mini splitter could be well-matched to this box.

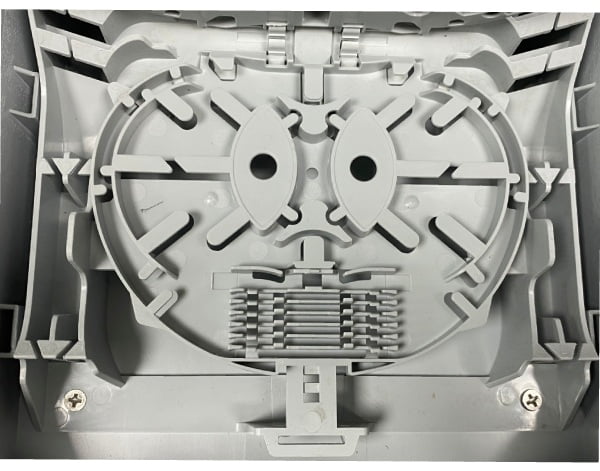

(The interior view of splice trays) The molded plastic structure in the following picture has a circular pattern with slots and two circular openings, used for guiding and positioning fibers. Below, there is a row of small, evenly spaced components, possibly fiber optic splice holders or organizers, which help in aligning and securing individual fibers during the splicing process. The overall design is engineered to facilitate precise fiber management.

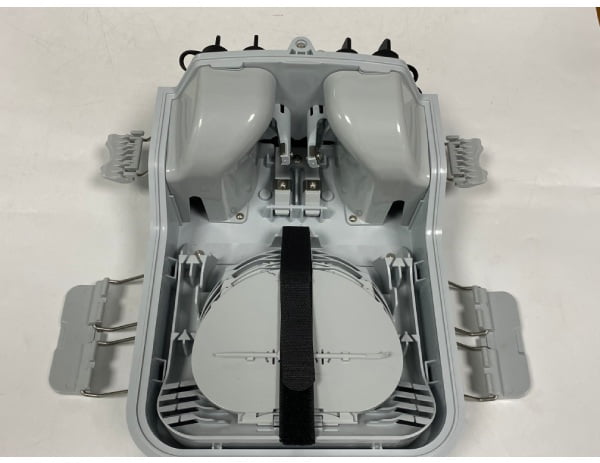

This is a comprehensive interior view of the terminal box. It reveals the full layout, including the two large, bulbous fiber entry/exit compartments on the upper part, which house and protect the incoming and outgoing fiber cables. On both sides, there are metallic mounting brackets, allowing the box to be securely closed. The interior structure is well-organized, with dedicated spaces for fiber entry, splicing, and management, ensuring efficient and orderly handling of fiber optic cables.
Optional Accessory for Fiber Splitter Box
|
SC Adapter |
1×8 Splitter | SC Type Pigtail |
 |
 |
 |
| SC/APC, green
SC/UPC, blue IL<0.2dB |
SC APC Single Mode G657a1 fiber
900um |
0.9mm White Simplex G,657A1 LSZH 2M |
| Read More | Read More |
