Speical Design Ip65 1×8 Splitter Sc Fibre Access Terminal Box, Outdoor Wall Mount, White

Description

Features of Fibre Access Terminal Box

• Box is with small special lock with 2 clips and 1 screw rod;
• High strength engineering plastic, whole box is enclosed with waterproof circle, protection class IP65;
• Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance;

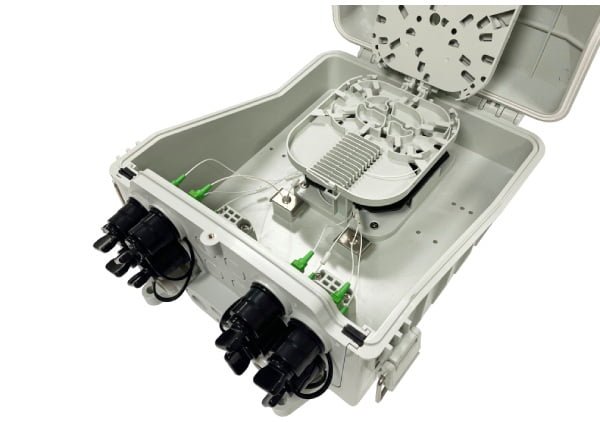

• 2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix and winding, both sides with adapter holders;
• All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion;
• Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius;
• Top cover with laser mark, and large space for logo or wiring diagram printing;
• FTTH outdoor wall mounted, pole mount, aerial mount;
• It is applicable for outdoor cables or indoor soft cable;
• The box can use for a minimum period of 20 years.

Specification

Details of Fibre Access Terminal Box

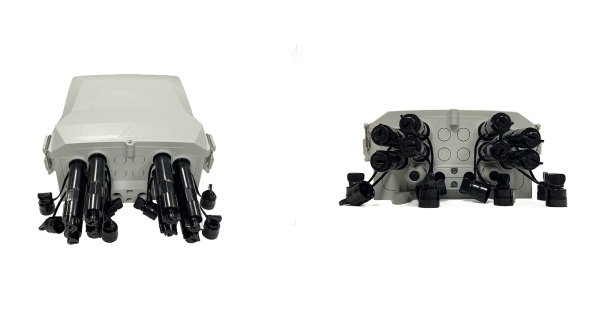

The terminal box has a robust, light grey enclosure, which could be customized in black, too. It features multiple black fiber optic connectors and ports on the front, designed for secure fiber cable connections. These ports support the entry and exit of optical fibers, enabling the distribution and management of optical signals.

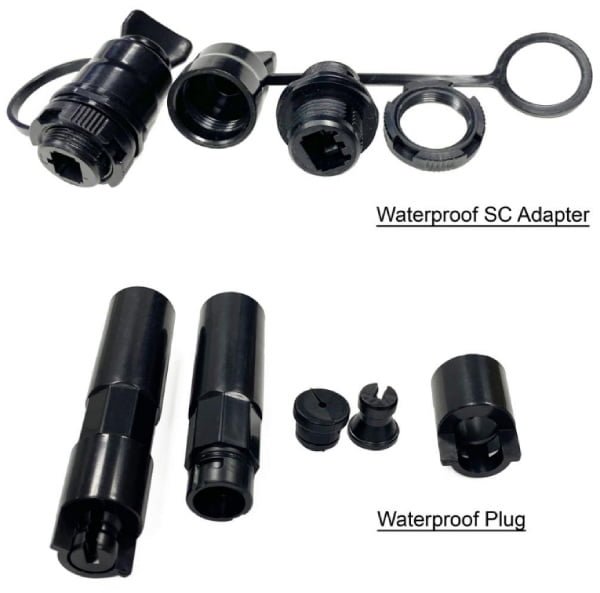

Moreover, this terminal box’d better equipped with waterproof SC adapters and waterproof plugs (as the following picture shows). These components ensure that the fiber connections are protected from moisture and environmental elements, enhancing the durability and reliability of the terminal box, especially in outdoor or harsh environment applications.

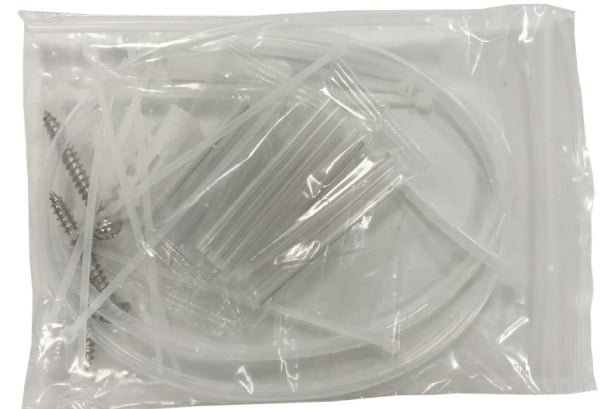

• Cable Ties: Transparent plastic ties used for organizing and securing fiber optic cables, ensuring they are neatly routed and preventing tangling.
• Screws: Metal screws for fixing the terminal box to a surface or securing its cover, providing structural stability.
• Plastic Parts/Adapters: Transparent plastic components, possibly including cable management accessories or adapters that assist in the proper installation and alignment of fibers within the terminal box.
• etc.

Something about installation:

• Wall-Mount Installation: The terminal box can be fixed onto a wall. As indicated by the dimensions (130mm in width and 292mm in height), appropriate mounting hardware is used to secure the box to the wall surface, ensuring it is stable and easily accessible for fiber optic management and maintenance.
• Pole-Mount Installation: It can also be mounted on a telecom pole. Using a pole-mounting bracket or clamp (labeled “POLE CLAMP (OPTIONAL)”), the terminal box is attached to the pole, making it suitable for outdoor environments where wall mounting is not feasible, and enabling the distribution of optical signals in aerial networks.

Optional Accessory for Fibre Access Terminal Box

SC Adapter	1×8 Splitter	SC Type Pigtail
SC/APC, green SC/UPC, blue IL<0.2dB	SC APC Single Mode G657a1 fiber 900um	0.9mm White Simplex G,657A1 LSZH 2M
