8 Port Optical Splitter Access Terminal Box, Mounting On Wall, Ip67, White, Plastic

Description

Features of Access Terminal Box

• Total enclosed with key and 2*buckles, round shape at back, light weight, compact size;
• High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
• Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
• Cable, pigtails are running through own path without disturbing each other;
• Distribution panel can be flipped up,1X8 mini splitter and 8pcs SC standard adapter;
• Fusion plate can be maximum 16cores splicing, large area for routing and storage;
• Outdoor Wall mount or pole mount, IP65 protection class;
• Laser mark and logo print reserved on the lid.

Specification

Details of Access Terminal Box

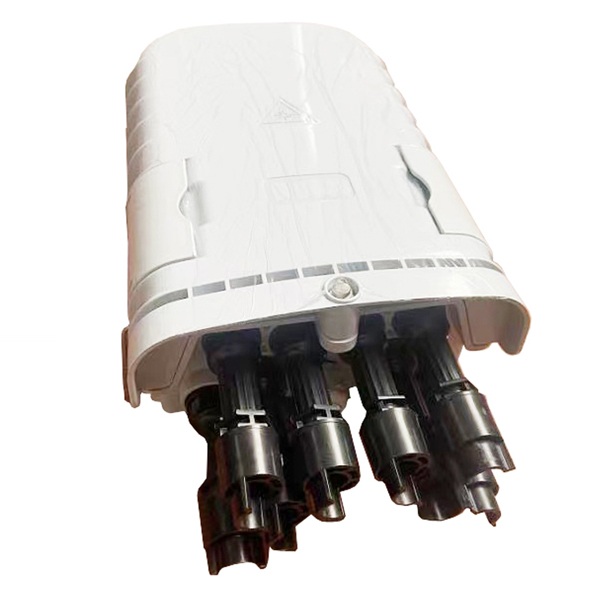

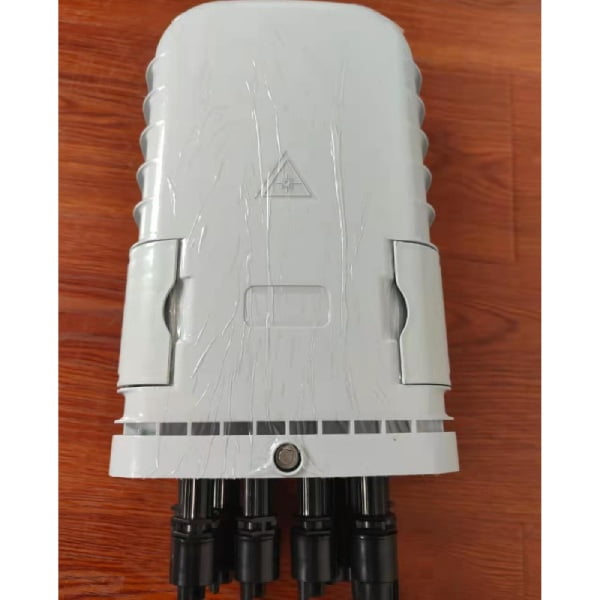

This is an outdoor fiber optic terminal box, mainly grey, which could be also customized in black. It has a rugged, sealed design with a warning triangle symbol (for electrical or optical hazard) on the front. There are two side latches for opening the box, and a small rectangular area that might be for labeling. At the bottom, multiple black fiber optic cable inlets and outlets are visible, indicating it’s built for connecting and managing several fiber cables, with weather-resistant features suitable for outdoor deployment.

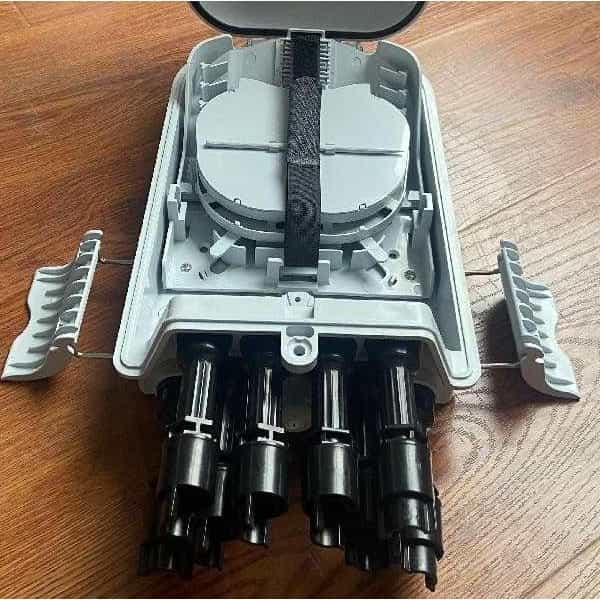

Inside, there’s a circular fiber management area (for splicing and organizing fibers) with a black strap, which is for securing the fibers. The internal structure includes slots and holders for fiber optic components. The ports at the bottom shows how the cables are routed into the box for termination and management. 1pc 1×8 mini splitter could be well-matched here.

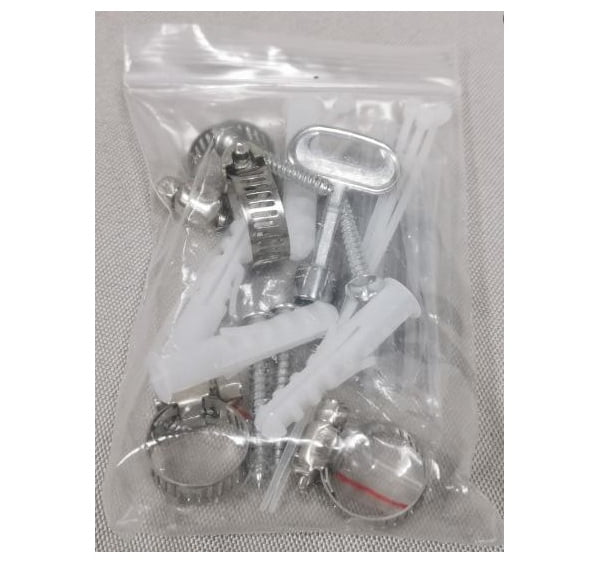

Moreover, some essential components used for installation would be packed and shipped along with the termination box, like:

• Metal Hose Clamps: These are used to securely fasten fiber optic cables or protective sleeves, preventing them from slipping or being damaged. They ensure the cables are firmly fixed during and after the installation of the terminal box.
• Plastic Wall Anchors and Screws: The wall anchors are inserted into pre-drilled holes in the wall, and then the screws are driven through the terminal box and into the anchors. This set is used to mount the fiber optic terminal box firmly onto a wall or other surface, providing stable support.
• Zip Ties (Cable Ties): These are used for organizing and bundling fiber optic cables or other wires inside and around the terminal box. They help keep the cables neat, prevent tangling, and make the overall installation more orderly.
• Metal Tool (a wrench or screwdriver): This tool is used for tightening screws, hose clamps, or other fasteners during the installation process, ensuring all components are securely attached.

Optional Accessory for Access Terminal Box

SC Adapter	1×8 Splitter	SC Type Pigtail
SC/APC, green SC/UPC, blue IL<0.2dB	SC APC Single Mode G657a1 fiber 900um	0.9mm White Simplex G,657A1 LSZH 2M
Read More	Read More	Read More
