Description

FAT-8B Fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 12 fibers; Available for 3trays to splice total 36 fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.



Specification

MODEL	FAT-8B
Dimension	248*276*124.5mm
Cable port	2in 2out (9-11mm), 8 SC adapter port
Fusion capacity	36 cores single fiber / 3tray, each 12cores
Splitter qty	Max.1pc 1x8steel tube splitter 0.9mm
Adapter qty	8 SC
Material	PP+GF, tray:ABS
Color	black
IP grade	IP68
Installation	Pole mount, wall mount
Sealing Method	Mechanical and heat-shrinkable seal



Package information

Quantity/Carton	Carton box size	Gross weight/Carton
4 pcs	57*42*37cm	10.60kgs



Application

• It can be installed in aerial mount, duct, direct buried, man holes, pole mount, wall mount,etc.

• Small volume but large capacity.



Features

• Excessive fibers can be stored in storage baskets. Easy in fiber management.
• Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
• Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.
• The splice trays are hinged for access to any splice tray, without disturbing other trays.
• The inner parts and fixing parts are made of stainless steel.
• With a earthing device protect it from damage by lightning.
• Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, hand hole, manhole)and in many applications(tap-off, expressed, branch, and repair).



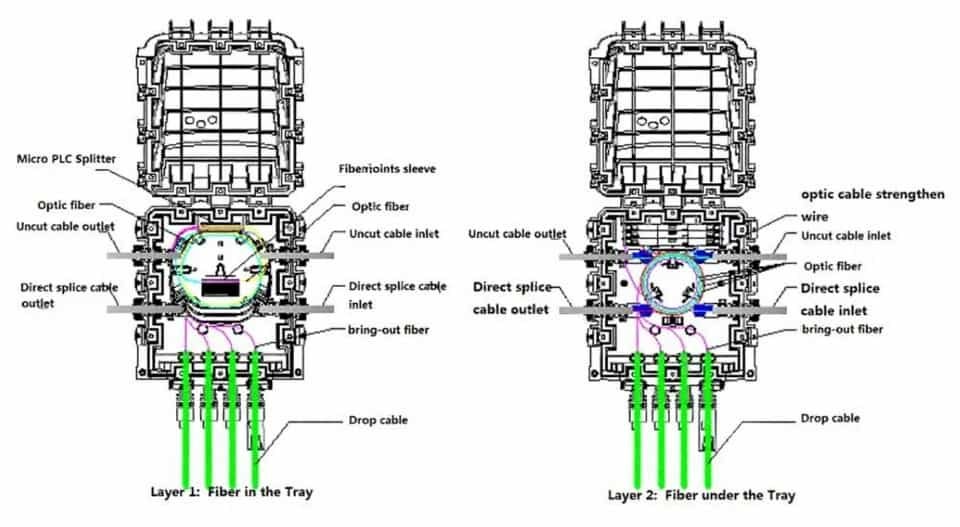

Standard Configuration

Technical Parameter

• Working Temperature: -40~+700C
• Atmospheric Pressure: 70~150Kpa
• Axial Tension: >2000N/1min
• Stretching Resistance: 2500N/10 square centimetre(1min)
• Insulation resistance: >2*104MΩ
• Voltage Strength: 15KV/1min, no arc overor breakdown
• Pressure in the water: 50m/72hours
• Splice tray with optical taking-in radius: 30mm. Low optical loss.



Standard accessory

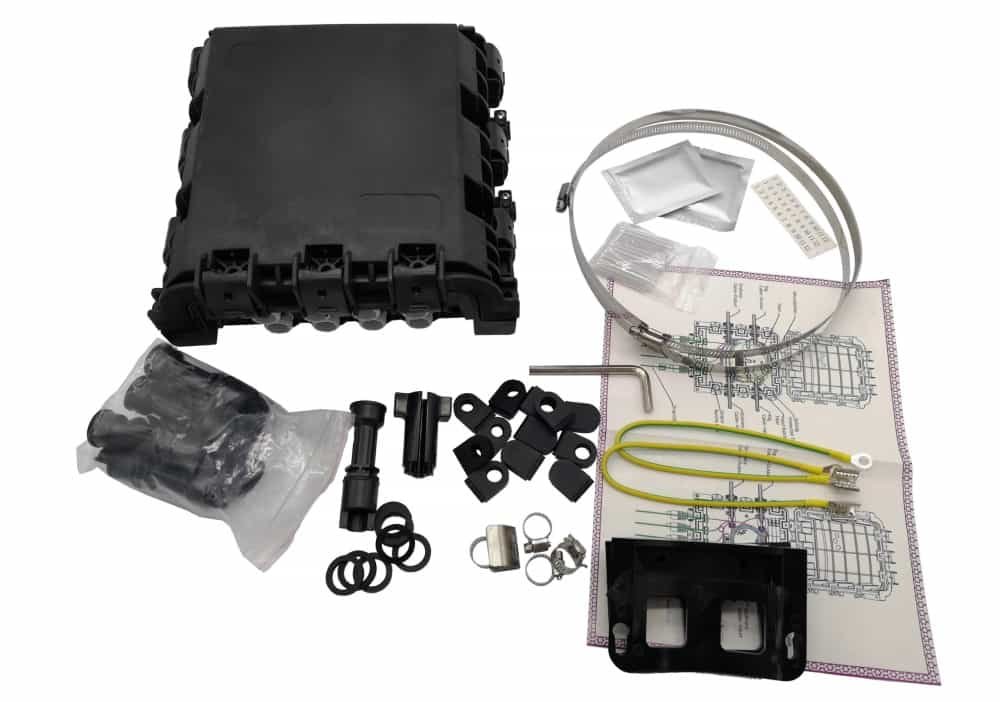

Box, cover, output sc adapter holders, pole mount kits, wall mount screws, cable ties, grounding wire, user manual, Hexagon wrench, label mark, heatshrink protection sleeve, rubber seals for calbe ports, cable port opening tool,cleaning tissue,etc.
