Description
Features of Fiber Access Terminal Box
- Excessive fibers can be stored in storage baskets. Easy in fiber management.
- Fully mechanical sealing. Easy installation and reentry. No other sealing
- adhesive tape is needed.
- Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.
- The splice trays are hinged for access to any splice tray, without disturbing other trays.
- The inner parts and fixing parts are made of stainless steel.
- With a earthing device protect it from damage by lightning.
- Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, hand hole, manhole)and in many applications(tap-off, expressed, branch, and repair).
Specification
| MODEL | FAT-8A |
| Dimension | 182*183mm |
| Cable port | 1oval port (Mid span 10-16mm), 8 round ports for drop cable |
| Fusion capacity | 12 cores single fiber / 1tray |
| Splitter qty | 1pc 1×8 steel tube splitter 0.9mm |
| Adapter qty | 8 SC |
| Material | Dome & base : Modified P.P+GF; Tray: ABS |
| Color | black |
| IP grade | IP65 |

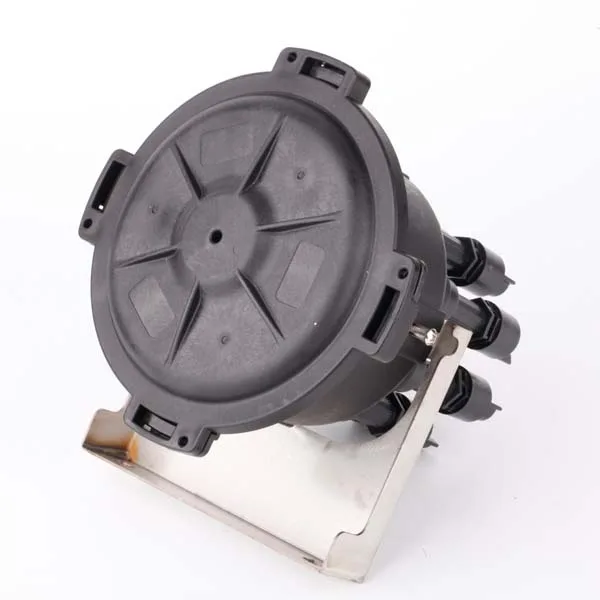

| Installation | Pole mount, wall mount |
| Sealing Method | Mechanical and heat-shrinkable seal |
Details of Fiber Access Terminal Box

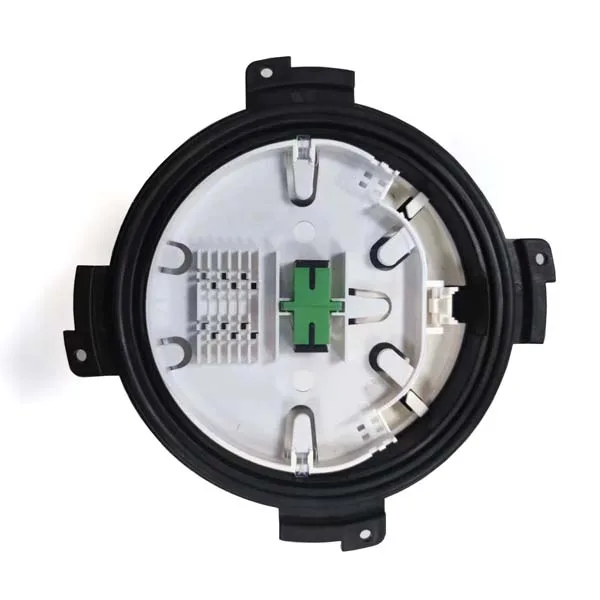

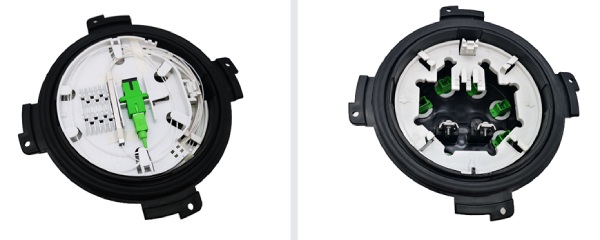

This box supports fiber splicing, distribution, and connection management, ensuring efficient signal transmission in fiber optic networks. Its robust design and multiple components work together to maintain the integrity and performance of optical fibers in both indoor and outdoor applications. Opening the box, there is a white splice tray inside the terminal box. A green fiber optic adapter is prominently placed, and 1pc 1×8 steel tube splitter in size 0.9mm is well-matched to it. On the more internal layer, 8pcs SC adapters could be placed here, which is designed for fiber optic connections and distributions, with components that secure and manage the fibers, facilitating efficient fiber optic network operations.

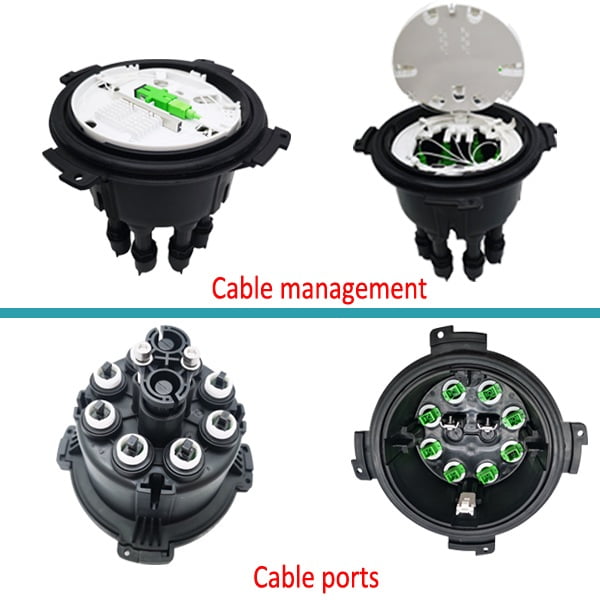

Cable Management Area: Designed to route and store optical fibers, keeping them organized and preventing tangling or damage.

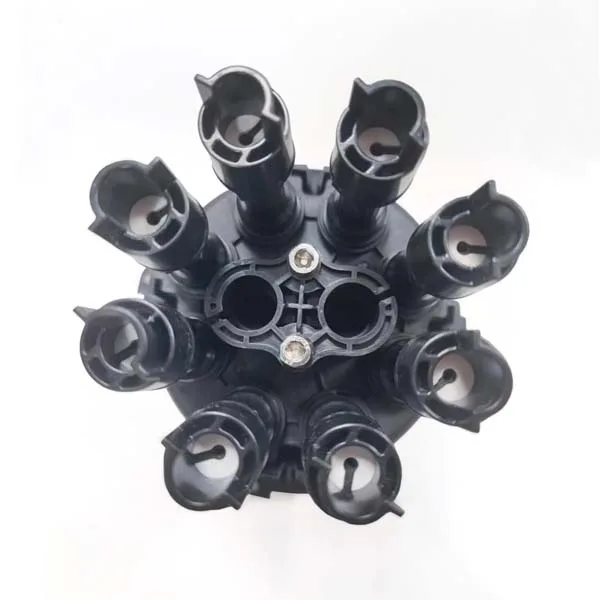

Cable Ports & Mid-Span Port: Multiple ports (with dust caps for protection when not in use) allow fibers to enter and exit the box, enabling connections to different network segments.

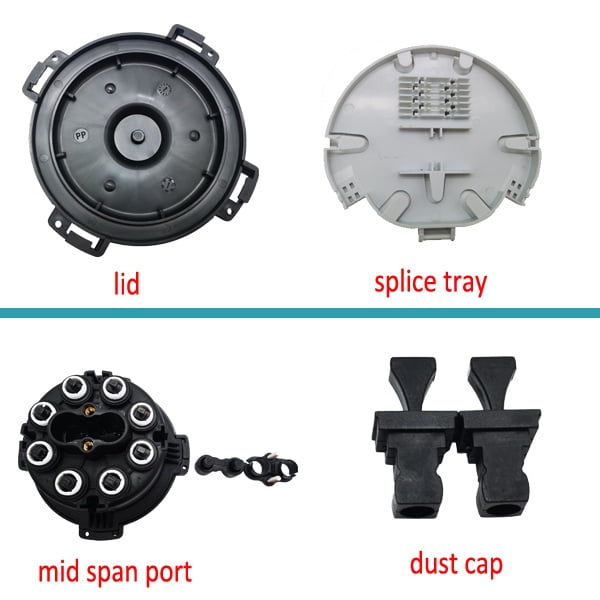

Lid: A durable, black cover that protects internal components from dust, moisture, and physical damage.
Splice Tray: A white tray used for fiber splicing and organization, ensuring fibers are neatly arranged.

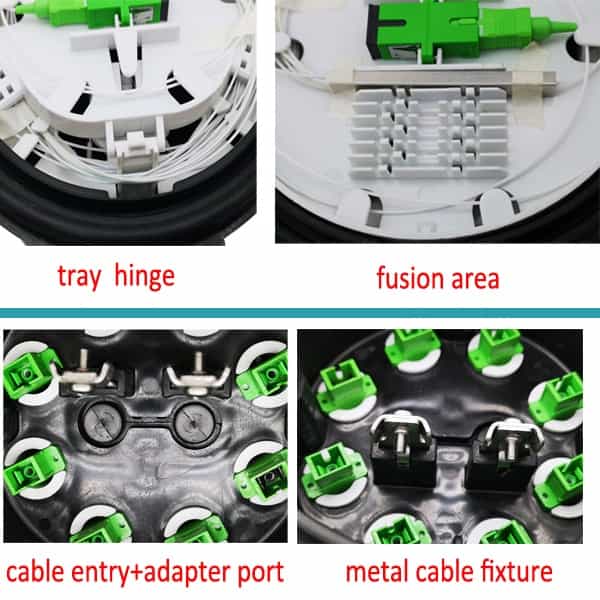

Tray Hinge: Enables the splice tray to open and close smoothly, facilitating easy access for splicing and maintenance.
Fusion Area: A designated space for fiber fusion splicing, where optical fibers are joined together.
Adapter Port & Metal Cable Fixture: Adapter ports (with green connectors) provide interfaces for fiber optic connectors, while metal fixtures secure cables firmly in place, preventing dislodgement.
Optional Accessory for Fiber Access Terminal Box
|
SC Adapter |
1×8 Splitter | SC Type Pigtail |
 |
 |
 |
| SC/APC, green
SC/UPC, blue IL<0.2dB |
SC APC Single Mode G657a1 fiber
900um |
0.9mm White Simplex G,657A1 LSZH 2M |
