Description
FAT-8R FAT+16R Optical Distribution Box is used as a terminal point for the feeder cable to connect with drop cable in telecommunication network system,maximum 16 households end termination.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides protection and management for the FTTx network building.
8 Port NAP Features
- Box is with small special front lock with 2 buckles and 1 screw rod;
- High strength engineering plastic, whole box is enclosed with waterproof circle,protection class IP65;
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance;

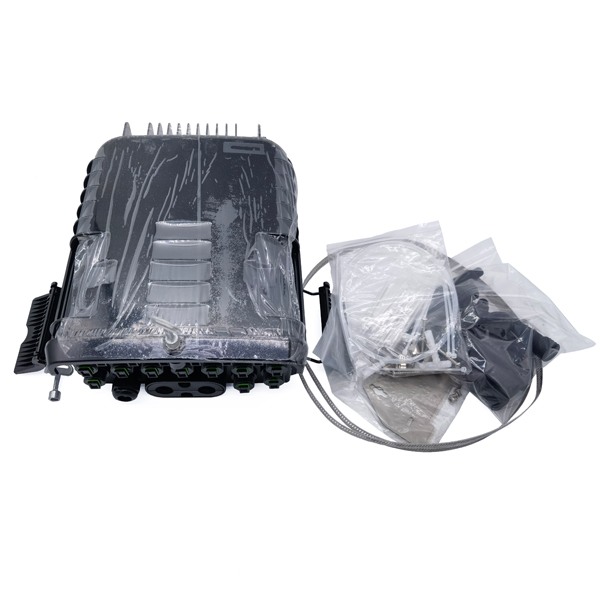

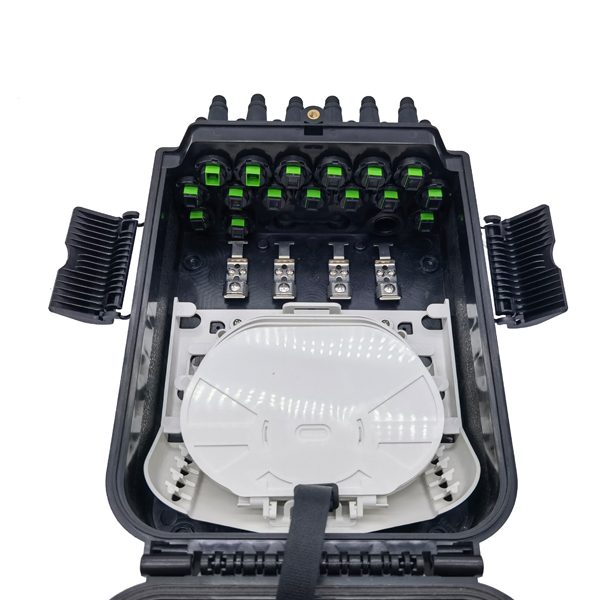

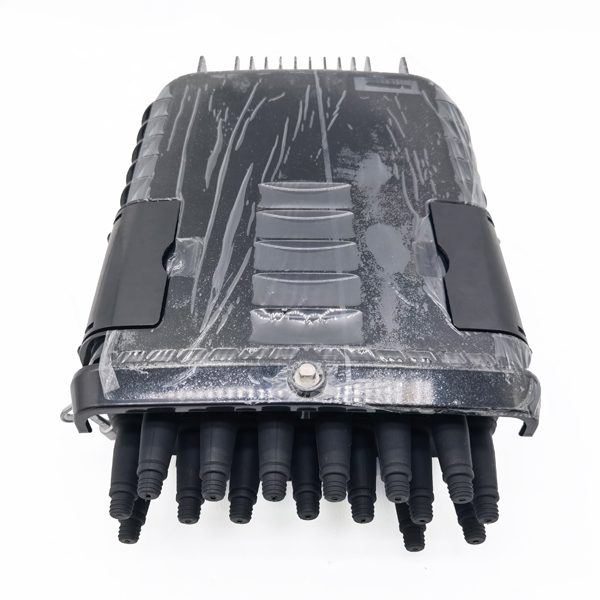

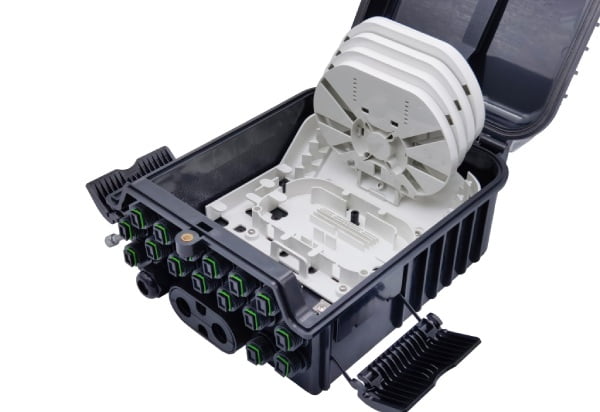

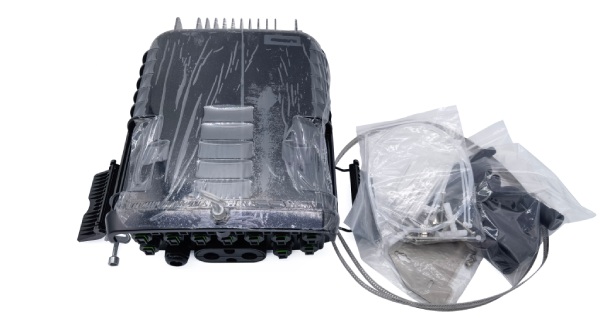

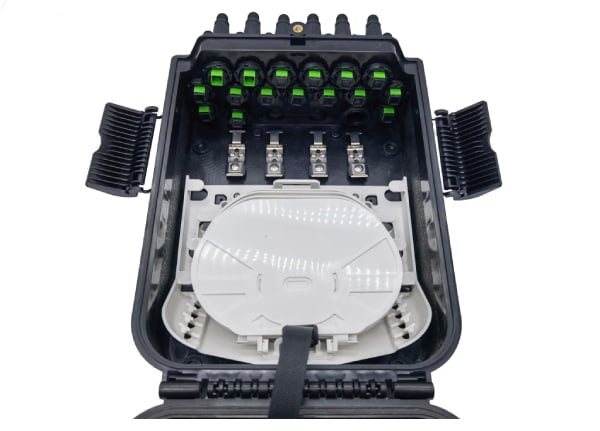

- 4 pcs splice trays, 2 for fusion, 2 for splitting;
- All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion;
- Cable clamp and fixture for entry and exit, and large redundant fiber storage space,reasonable bend radius;
- Top cover with laser mark, and large space for logo or wiring diagram printing.

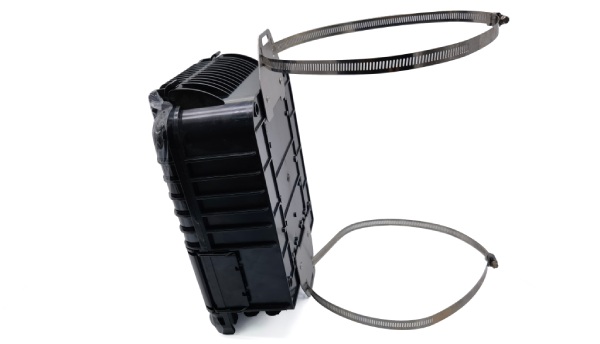

- FTTH outdoor wall mounted, pole mount,aerial mount;
- It is applicable for outdoor cables or indoor soft cable;
- The box can use for a minimum period of 20 years;
8 Port NAP Application
- FTTH access network
- Telecommunication network
- CATV networks
- Data communications network
- Local area networks
8 Port NAP Specification
Model | FAT-8R | FAT-16R |
Dimension | 319.3*200*97.5mm | 319.3*214*133mm |
Adapter | 8pcs SC adapter | 16pcs SC adapter |
Splitter qty and type | 1pc pcs 1:8 mini splitter | 2pcs pcs 1:8 splitter or 1pc 1:16 mini splitter |
Cable outlet | 8pcs SC connector with waterproof plugs | 16pcs SC connector with waterproof plugs |
Cable inlet | 2big round: ᴓ8~14mm, branch cable:ᴓ16mm | |
Max. Capacity | 40 cores single fiber | |
Minimum fiber bending | ≥30mm | |
Color | Grey, black | |
Protection grade | IP65 |
Cable wiring way
![FAT-16R cable wiring way](https://yingdapc.com/wp-content/uploads/2024/04/FAT-16R-cable-wiring-way-1024x506.png)
Splicing tray
Item | Splice tray A | Splice tray B |
Dimension (HXWXD) /mm | 134*104*8 | 134*104*4 |
Net weight/kg | 0.021 | 0.015 |
Picture | ||
Color | Customized | Customized |
Material | PC+ABS | PC+ABS |
Capacity | 12 cores (single fiber), 1 slot for 1×8 plc tube | 8 core (single fiber) |
Cable Outlet With Special Waterproof Plug
![FAT-16R outlet with waterproof plug](https://yingdapc.com/wp-content/uploads/2024/04/FAT-16R-outlet-with-waterproof-plug-1024x768.jpg)
