Description
Features of Fiber Splitter Box
- Box is with small special lock with 2 clips and 1 screw rod;
- High strength engineering plastic, whole box is enclosed with waterproof circle, protection class IP65;
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance;
- 2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix and winding, both sides with adapter holders;
- All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion;
- Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius
- Top cover with laser mark, and large space for logo or wiring diagram printing.
- FTTH outdoor wall mounted, pole mount, aerial mount;
- It is applicable for outdoor cables or indoor soft cable;
- The box can use for a minimum period of 20 years;
Specification
| Model | FAT-8L |
| Dimension | 306*237*116mm |
| Adapter | 16pcs SC adapter |
| Splitter qty and type | 2pcs pcs 1:8 splitter or 1pc 1:16 mini splitter |
| Max. Capacity | 24 cores single fiber |
| Minimum fiber bending | ≥30mm |
| Cable inlet | 1 mid span, 2pcs PG13.5 cable glands |
| Cable outlet | 16 pcs SC connector with waterproof plugs |
| Color | Grey, black |
| Protection grade | IP65 |
Details of Fiber Splitter Box

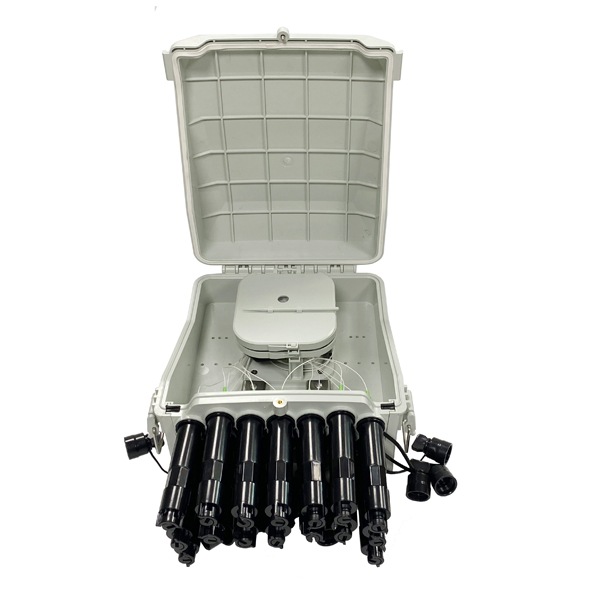

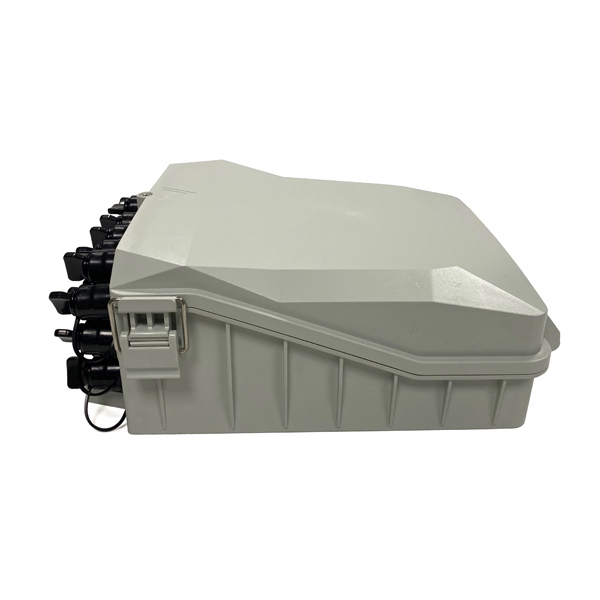

This box features with a light grey (could be cuxtomized in black), rugged plastic enclosure. The lid has a grid-like reinforcement structure for added durability. Inside, a fiber optic splice tray is visible, and multiple black cable glands are arranged at the front for waterproof and dustproof cable entry. This robust structure is suitable for both indoor and outdoor deployments, protecting fiber optic connections and management components.
Focusing on the internal splicing region, it features a fiber optic splice tray with a green SC-type fiber adapter. Several white optical fibers (pigtails or drop cables) are organized and secured on the tray. Metal fixing devices ensure the stability of the fibers and the splice tray, enabling reliable fiber fusion splicing and connections.
Optical fibers are neatly coiled around a circular fiber management spool, which prevents excessive bending and maintains fiber transmission performance. The spool is held by plastic clips within the light gray enclosure, ensuring systematic fiber organization for easy maintenance.
The port area is with multiple green SC fiber adapters arranged in rows. Optical fibers are terminated into these adapters, and black cable glands at the rear provide waterproof sealing for incoming cables. The orderly routing of fibers from the adapters supports efficient fiber optic distribution for multiple connections.
Optional Accessory for Fiber Splitter Box
| SC Adapter | 1×8 Splitter | SC Type Pigtail |
 |  |  |
| SC/APC, green SC/UPC, blue IL<0.2dB | SC APC Single Mode G657a1 fiber 900um | 0.9mm White Simplex G,657A1 LSZH 2M |
