Ftth Drop Cable Fiber Optic Distribution Box, 30 Cores Single Fiber, 2 Uncut Port, Ip65 White

Description

Features of Fiber Optic Distribution Box

• Box is with key + 4brackets, uncut port entry for cable go through the box without cutting;
• FTTH outdoor wall mount or pole mount;
• Box with waterproof circle, protection class IP65;
• High quality ABS+PC plastic, all metal parts stainless steel;
• Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance;
• 5splicetray with transparent cover, each fusion 8cores with 1 steel tube fix slot;
• 2pcs 1×8 or 1x16Mini /ABS splitter can be available;
• Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius;
• Output is standard SC adapter without flange, with number mark to distinguish each
• Laser mark, customer logo or cable port indication can be print on lid.

Specification

Details of Fiber Optic Distribution Box

This fiber optic termination box features a robust metallic enclosure. It has a rectangular form factor with mounting holes for secure installation. At the front, multiple black fiber optic connectors are visible, serving as ports for fiber optic cables to connect and terminate. The compact and sturdy design makes it suitable for both indoor and outdoor fiber management scenarios. There are latches on both sides to securely lock the box.

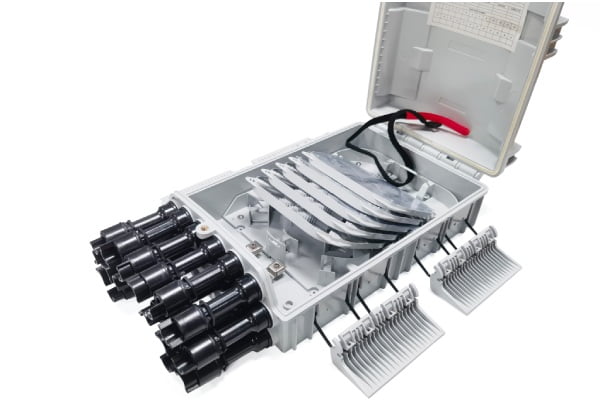

Inside, there are several fiber splicing trays where optical fibers are spliced and coiled in an organized manner. Black fiber bundles can be seen, and the inner side of the lid includes a labeling area for documenting fiber-related information. The enclosure is made of durable gray plastic, offering physical protection to the delicate optical components inside. 1×16 or 2pc 1×8 steel tube splitter are both well-matched here.

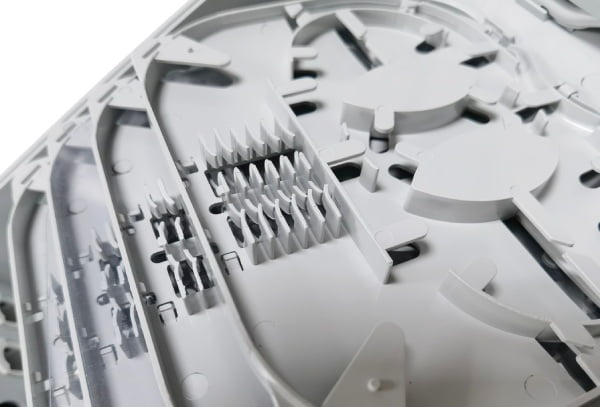

Here is a close-up that focuses on the internal fiber management details. The white, tooth-shaped structures are fiber organizers, designed to neatly route, separate, and secure individual fibers. These components prevent fiber entanglement, maintain proper bend radii (critical for signal loss prevention), and simplify future maintenance or troubleshooting.

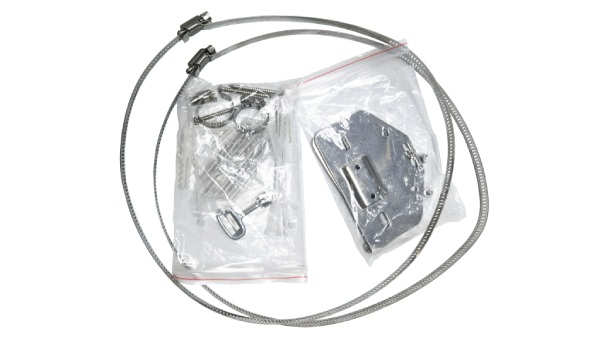

There are some necessary components for installation:

• Metallic Mounting Cables: Equipped with connectors, these cables are used to secure the fiber optic termination box to supports like utility poles. They offer flexibility and stability for aerial or outdoor deployments, ensuring the box is firmly fixed in place.
• Screws and Fasteners: These hardware components are crucial for assembling the termination box and attaching it to mounting surfaces or brackets. They ensure all parts are tightly connected, maintaining the structural stability of the installation and preventing loosening over time.
• Metallic Mounting Bracket: This bracket acts as an intermediate component for installing the termination box. It can be fixed to walls or other flat surfaces, and the box is then attached to it. It provides a stable, level mounting point, facilitating convenient and secure installation of the box.
