Description

FAT-16A Fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 2 trays to splice total 48fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.

Specification

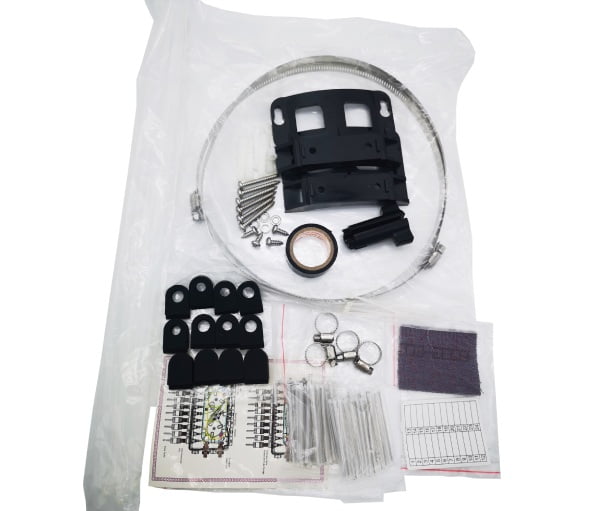

Package information

Application

• It can be installed in aerial mount, duct, direct buried, man holes,  pole mount, wall mount,etc.

• Small volume but large capacity.

Features

• Excessive fibers can be stored in storage baskets. Easy in fiber management.
• Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.

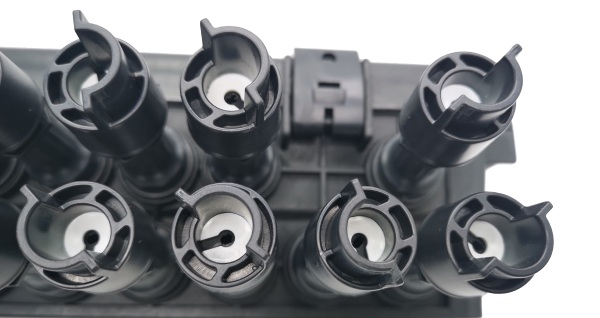

• Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

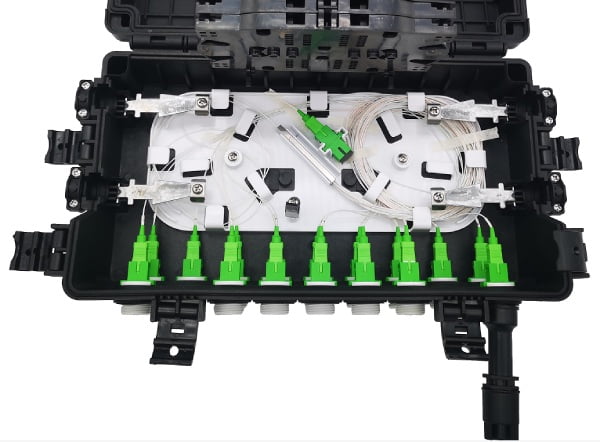

• The splice trays are hinged for access to any splice tray, without disturbing other trays.
• The inner parts and fixing parts are made of stainless steel.
• With a earthing device protect it from damage by lightning.
• Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, hand hole, manhole)and in many applications(tap-off, expressed, branch, and repair).

Technical Parameter

• Working Temperature: -40~+700C
• Atmospheric Pressure: 70~150Kpa
• Axial Tension: >2000N/1min
• Stretching Resistance: 2500N/10 square centimetre(1min)
• Insulation resistance: >2*104MΩ
• Voltage Strength: 15KV/1min, no arc overor breakdown
• Pressure in the water: 50m/72hours

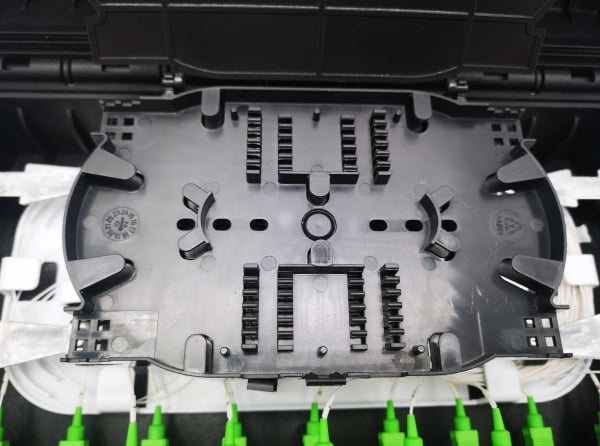

• Splice tray with optical taking-in radius: 30mm. Low optical loss.
