Description
Features of ATB Fiber Optic Distribution Box
- The body is made of high quality engineering plastic with good strength;
- With good water-proof performance, suitable for indoor and outdoor natural environments (Pic#4 for details);
- It can install 8pcs of SC Tyco adapter ( Pic#5 for details);
- The drop leaf can be installed 2 pcs of 1*4 & 1 pcs of 1*8 & 1 pcs of 1*9 tube splitter ( Pic#7 for details);
Technical Index
| Model No. | FAT-10A | Color | Black, Grey White.. |
| Capacity | 8 & 9 cores | Protection Level | IP55 |
| Material | PC+ABS, ABS | Flame retardant performance | Non-flame retardant |
| Dimension(L*W*D,MM) | 209*205*86 | Splitter | Can be with 2×1:4 tube splitter |
Details of ATB Fiber Optic Distribution Box

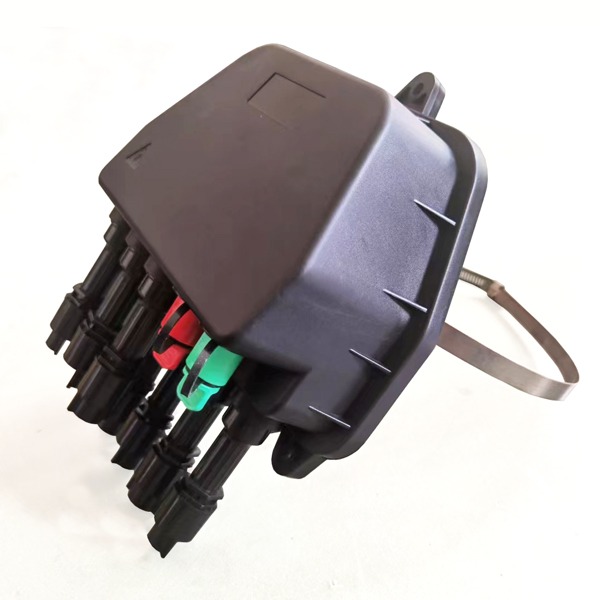

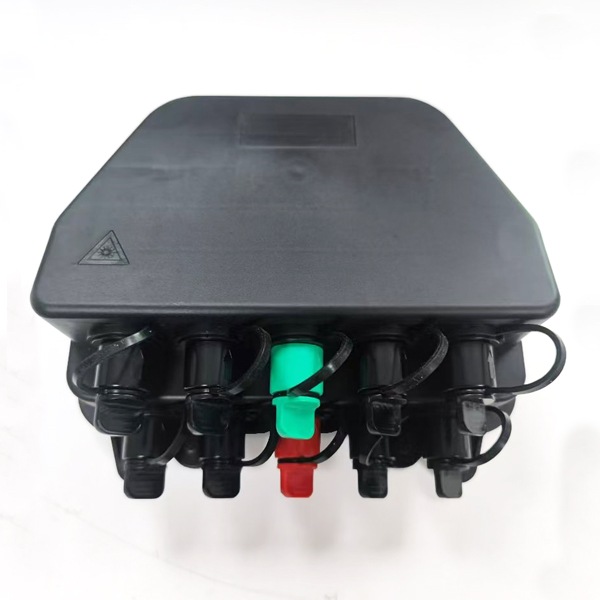

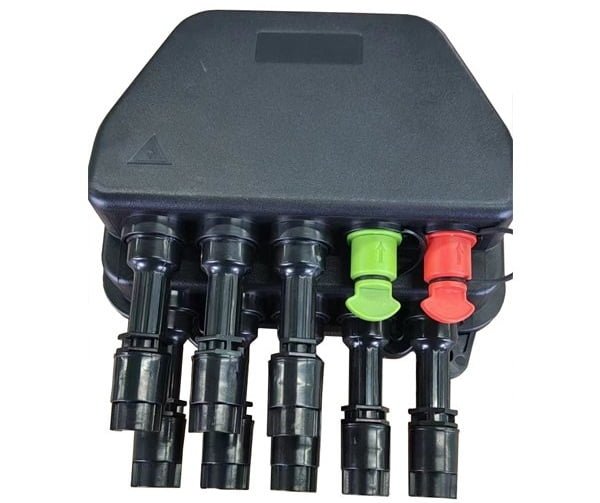

This fiber optic terminal box features a robust, black plastic (PC+ABS or ABS) enclosure. At the front, there are multiple connectors. Eight of them are black, uncolored connectors, while the remaining two have distinct colored caps—one green and one red with an upward arrow, indicating specific ports for input. A small triangular warning symbol is visible on the left side of the top cover, and there’s a rectangular blank area on the top for labeling or branding. The connectors appear to be designed for secure, weather-resistant fiber optic cable connections, suggesting the box is suitable for both indoor and outdoor applications.
When the enclosure is opened, the interior reveals a well-organized setup for fiber optic splicing and management. It could be equipped with several green fiber optic SC adapters, which aligned in rows, providing ports for fiber optic cables to be terminated or spliced. A bundle of multicolored fiber optic pigtails could be neatly routed and connected to a central green component. The internal structure includes mounting points and guides to manage the fibers, ensuring they are not bent or damaged, which is crucial for maintaining signal integrity. The interior design emphasizes organization and protection of the delicate fiber optic components. Besides, 2 pcs of 1*4 & 1 pcs of 1*8 & 1 pcs of 1*9 tube splitter are all well-matched to this box.

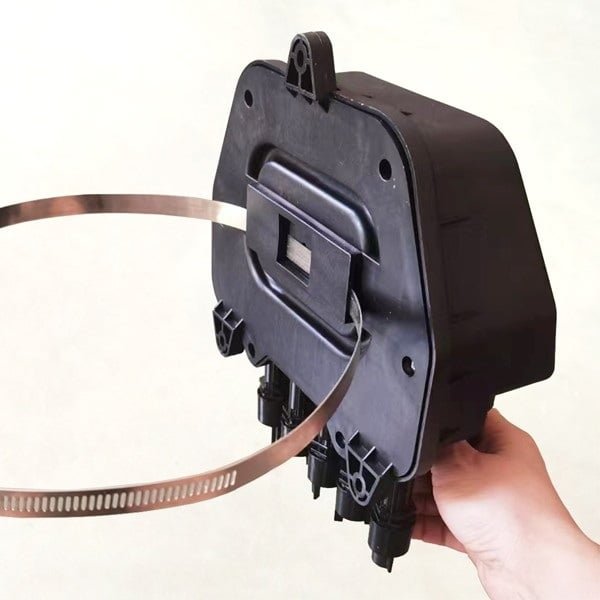

The back side of the box has several mounting holes and structural reinforcements, indicating it can be firmly fixed in place. The back and side design highlight its rugged construction, with molded plastic features that enhance durability and stability during installation and operation. The overall build suggests it can withstand various environmental conditions and mechanical stresses.

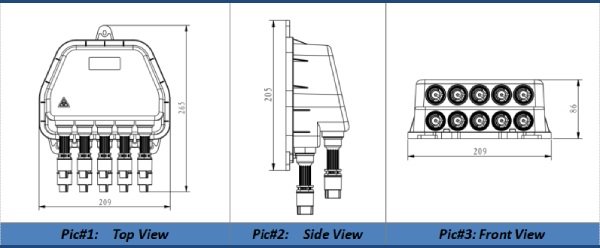

The dimension diagram:(mm)
Optional Accessory for ATB Fiber Optic Distribution Box
| SC Adapter | 1×8 Splitter | SC Type Pigtail |
 |  |  |
| SC/APC, green SC/UPC, blue IL<0.2dB | SC APC Single Mode G657a1 fiber 900um | 0.9mm White Simplex G,657A1 LSZH 2M |
