Description
Hybrid Fiber Cable Connector Strucrture
- The outer components of the ferrules are made of metallic or non-metallic materials. The mating ends of the ferrules must be ground, and the other end typically uses a bending restraint component to support the optical fiber or fiber optic cable and relieve stress.
- The coupling tube is generally made of two halves of a tightly fitted cylindrical component, typically made of ceramic or bronze, and often equipped with a metal or plastic flange for connector installation and fixation.
To achieve the most accurate fiber alignment, the machining precision requirements for the ferrules and coupling tube are very high.
Exterior Fiber Optic Cable Specification
| Item | Hybrid Fiber Cable 2 Fiber, 2 Electric Wires | |
| Material Composition | Shell Material: | stainless steel |
| Contact Materials: | Brass, Tin Bronze, Glass Tube | |
| Contact Plating Material: | Au | |
| Core Material: | PA66 (UL-certified environmentally friendly plastic granules) | |
| Locking Method | Threaded | |
| Waterproof Rating | IP67 | |
| Operating Temperature | -25°C to +85°C | |
| Rated Current | 5A, 10A, 20A, 30A | |
| Optional | 2 fiber+ 2 electric wires (neutral, live) 2 fiber+3 electric wires (neutral, live, ground) 2 fiber+4 electric wires 2 fiber+5 electric wires 4 fiber+2 electric wires 8 fiber+8 electric wires | |
Exterior Fiber Optic Cable Details

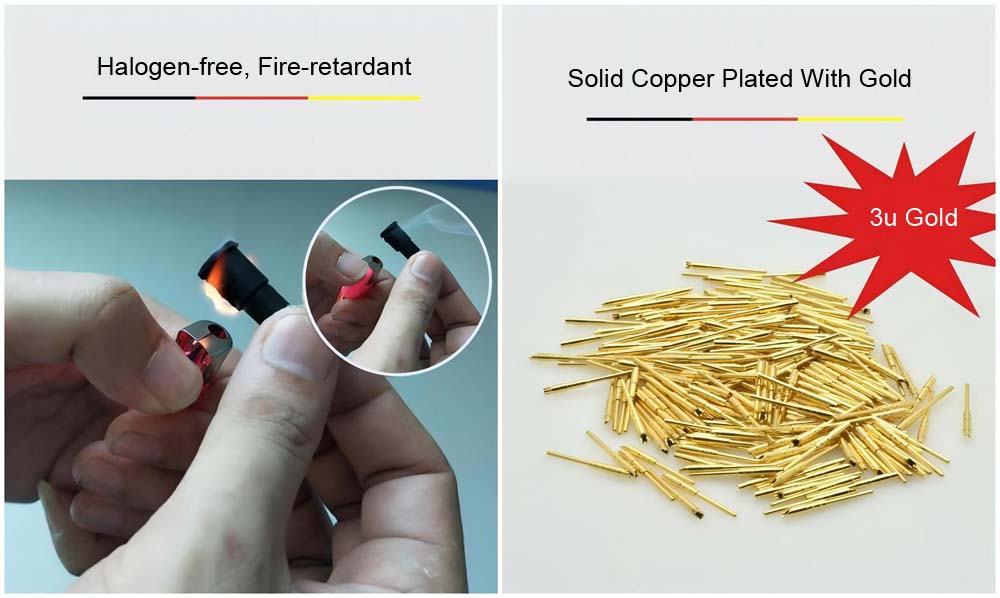

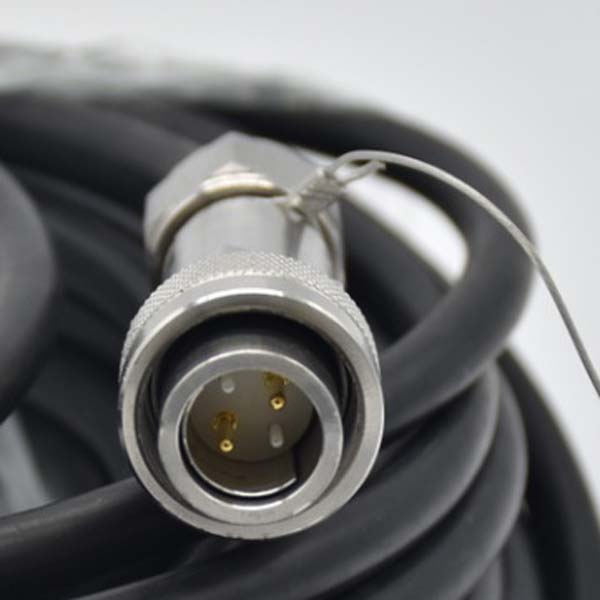

The core is made of UL material with a fire rating of UL94V0. And the contacts are made of solid copper plated with gold (3U). They are of high quality and have stable and reliable performance.

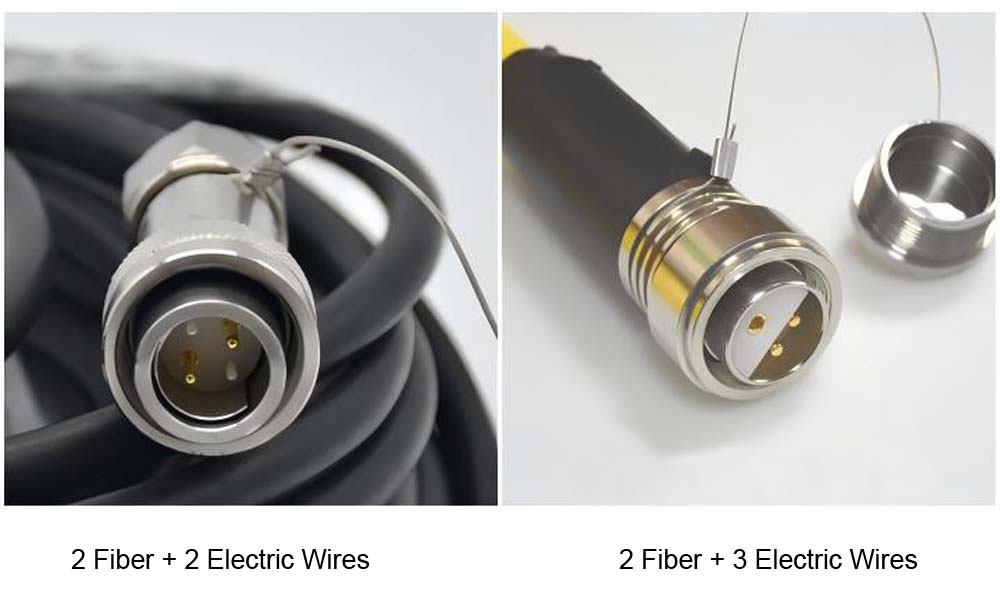

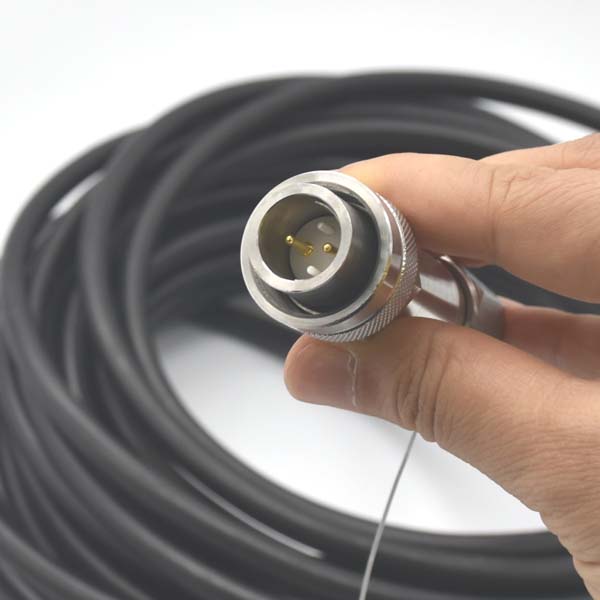

Yingda can provide not only products with 2 fiber and 2 electrical connections, but also products with 2 fiber and 3 electrical connections or other configurations. Please contact our sales team directly if you have any needs.

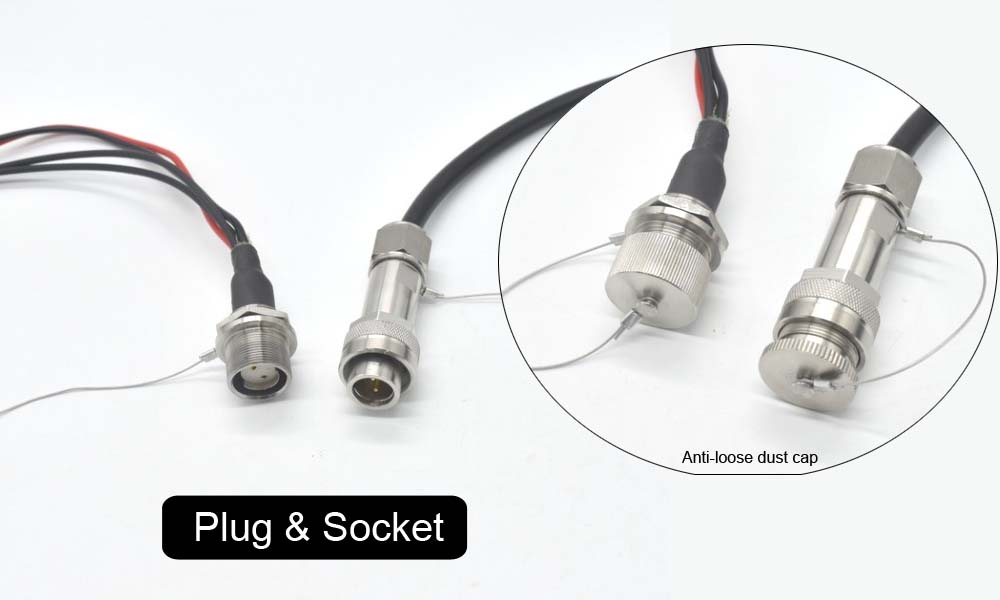

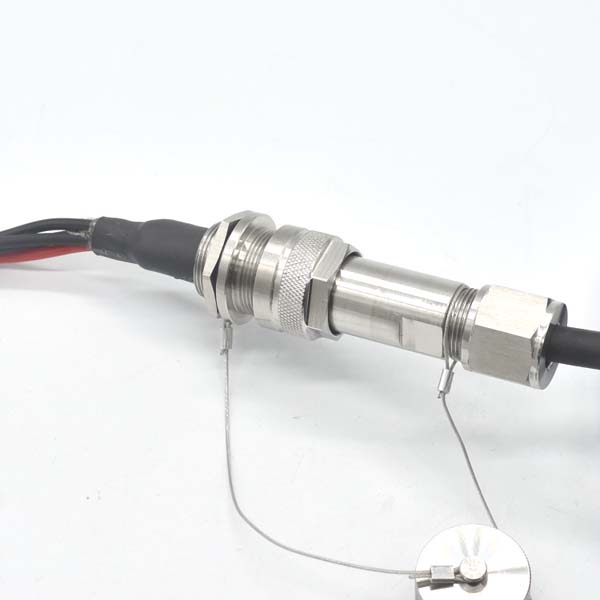

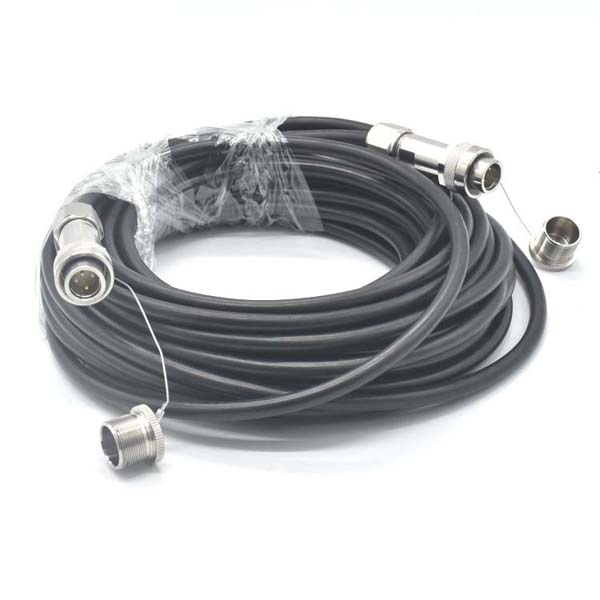

The optoelectronic hybrid connector features a robust and durable stainless steel housing and dust cap. The plug and socket utilize a precision-threaded design, allowing for simple assembly by rotating them to align with the corresponding holes. No additional adapters are required. It is quick, efficient, stable, and reliable.

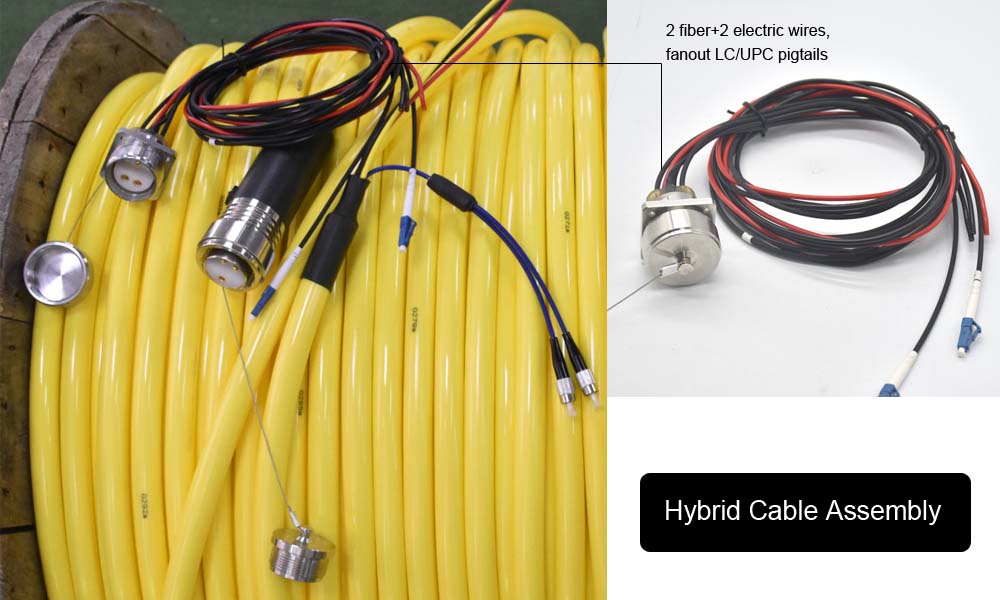

The image shows a hybrid fiber optic cable with 2-fiber 2-electric wires. Black cable is a hybrid fiber optic connector (female) to two LC/UPCs, and the yellow cable is the trunk cable with a hybrid fiber optic connector (male) to two FC/UPCs. Connecting the female and male connectors allows for the switching of different fiber optic device ports.
