Description
E2k Patch Cord Features
- Low insertion loss and high return loss
- Good change ability and durability
- High temperature stability
- 1005 interferometer measurement
- Telcordia GR-326-CORE
Specification
| Item | Parameter |
| Connector | E2000 |
| Polishing method | PC UPC APC |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc. |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Cable type | Simplex, duplex (zip cord), Φ3mm,Φ2.6mm, Φ2.4mm, Φ2mm,Φ1.6mm, Φ0.9mm, etc. |
| Polish manner | UPC, APC（8°）, PC |
| Cable color | Yellow, white, blue, orange, gray, green, etc. |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multimode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Detailed Display of E2k Patch Cord

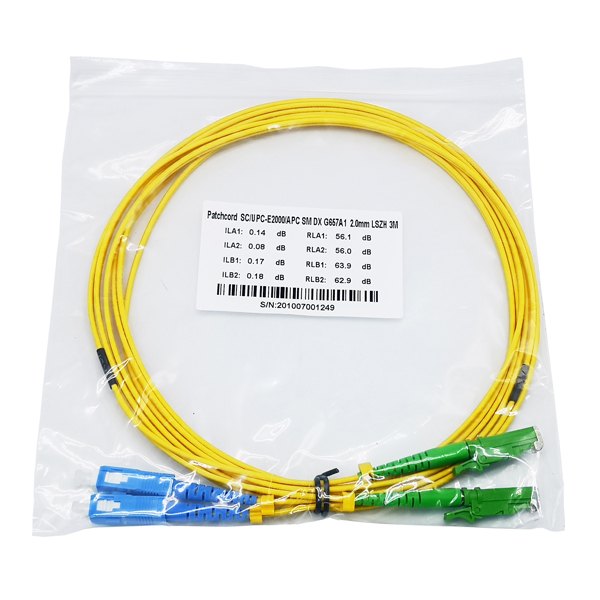

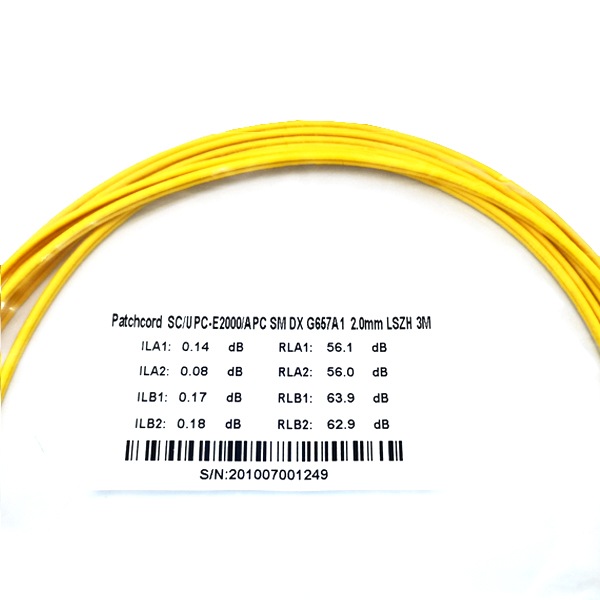

This product comes in a transparent plastic bag, with a label indicating product details, including a serial number (S/N: 201007001249) for traceability. Compliant with G657A1 standard, with a fiber diameter of 2.0mm. The cable jacket is LSZH (Low Smoke Zero Halogen), ensuring safety and environmental friendliness.
The fiber cable is yellow, facilitating easy identification in fiber optic cabling systems.

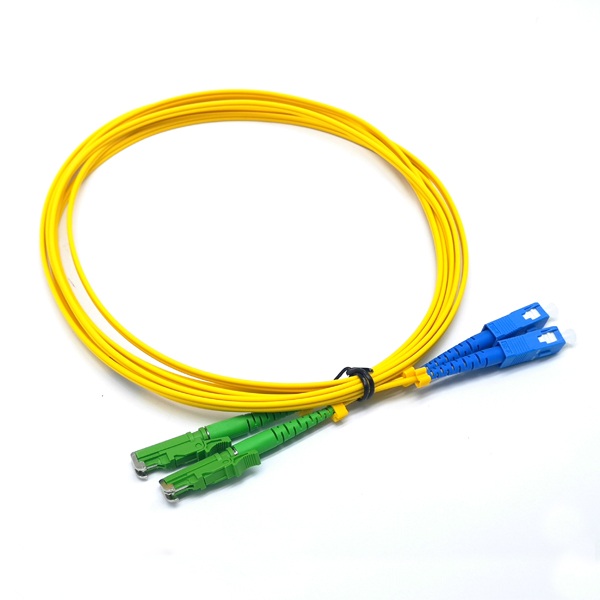

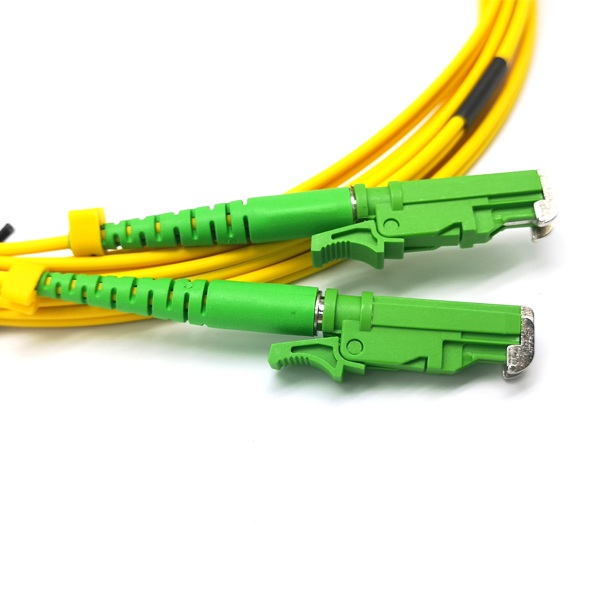

One end is SC/UPC (blue connector) and the other end is E2000/APC (green connector), designed for single-mode (SM) fiber optic connections.
