Description

E2000 connector is designed for high power applications up to 3 Watts optical power. It can  support the continuous rise of higher bit rates and longer transmission distances, within DWDM technology, and is based on expanded beam technology.

The E2000 fiber optic patch cord uses E2000 connectors with spring valves and push-pull locking devices at both ends. When you insert the connector, the locking device will fully lock, and when you pull it out, the spring valve can automatically close. The characteristic of this type of connector is to protect the pins from contamination and wear.



E2000 Patch Cord Specification

Connector type	E2000 connector
Fiber type	G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc
Wavelength	1260-1650nm
Fiber cores	1 core, 2 cores or multi-fiber
Cable diameter	Φ3mm,Φ2.6mm, Φ2.4mm, Φ2.0mm,Φ1.6mm, Φ0.9mm or custom
Polish method	UPC, PC, APC（8°）, SPC
Cable color	Yellow, white, blue, green, grey, red, black, aqua, orange, purple, etc.
Fiber radius of curvature	≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2)
Insertion loss	≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750
Return loss	UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multimode Tested by JDS RM3750
Repeat ability	±0.1dB
Operating temperature	-40 ° C to 85 ° C
Geometry Requirement (For Single mode)	Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1



E2000 Patch Cord Features

• Low insertion loss and high return loss
• Good exchange ability and durability
• High temperature stability
• 100% interferometer measurement
• Conforms to Telcordia GR-326-CORE



E2000 Patch Cord Application

• FTTH network (Fiber To The Home)
• Fiber Optic Telecommunications
• LAN (Local Area Network
• CATV&CCTV network
• High speed transmission systems
• Fiber optic sense

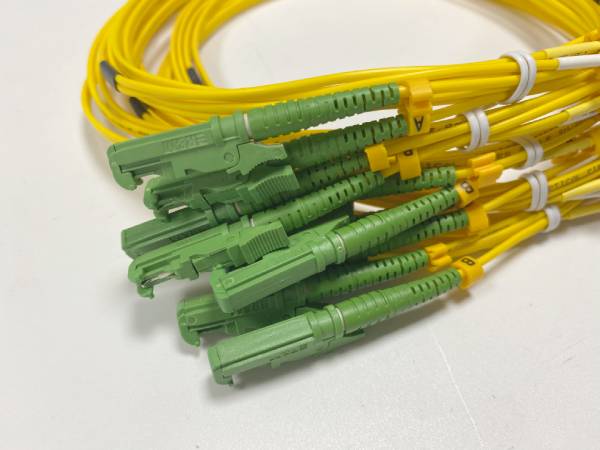

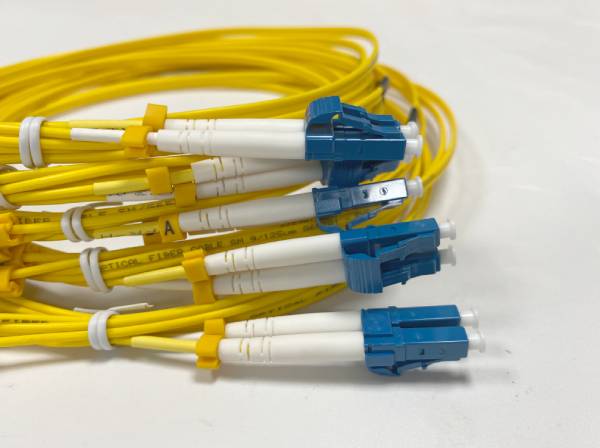

Meanwhile, we can make E2000 pigtails or E2000 to SC LC FC ST patch cords, which is hybrid patch cord upon customer request. See below some product for your reference, the cable color, material, length and diameter, fiber type or package can be customize. If need more information, please contact our sales team.

E2000 patch cord mulitmode orange                     E2000 FC patch cord SM green                  E2000 FC patch cord SM DX yellow           E2000 SC patch cord SM SX blue



2 Types of E2000 Fiber Optic Connectors

For E2000 patch cord, we have two types of different connectors, named HS and RM type. The difference is like below:

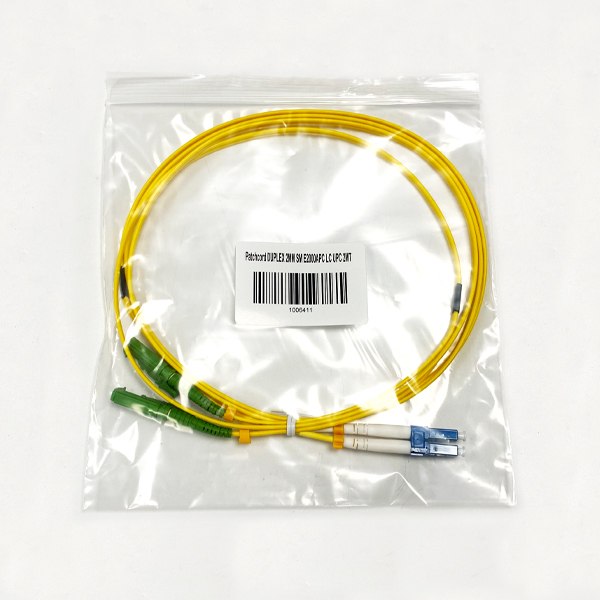

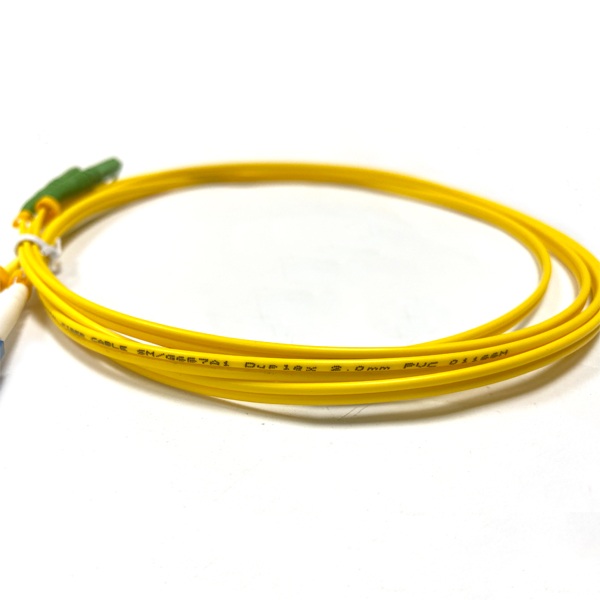

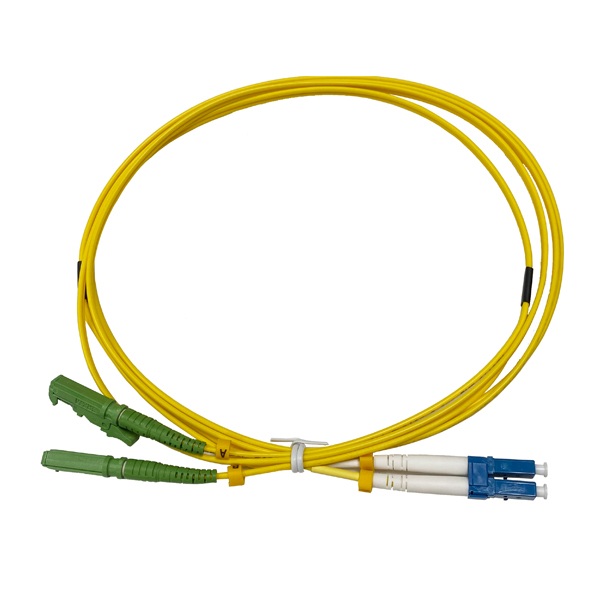

E2000 LC SM DX patch cord (RM)                                                             E2000 LC SM DX patch cord (SH)



For different types of E2000 connectors, we should use the compatible fiber optic adapters too, the difference as below:

E2000 fiber optic adapter (RM)                                       E2000 fiber optic adapter (SH)



Order Information

Eg: Patch Cord SC/APC-SC/UPC Simplex single mode OS1 2.0mm 25meter

Part no.: YDPC-SASU-SMSX-2025



E2000 Fiber Optic Patch Cord Package Information

ITEM	QTY/CTN	CTN SIZE	G.W./CTN
Patch cord SC-SC SM SX 1M	500pcs	47*47*26cm	14.8kg
