Description
E2000 APC Patch Cord Features
- Low insertion loss and high return loss
- Good change ability and durability
- High temperature stability
- 1005 interferometer measurement
- Telcordia GR-326-CORE
Specification
| Item | Parameter |
| Connector | E2000 |
| Polishing method | PC UPC APC |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc. |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Cable type | Simplex, duplex (zip cord), Φ3mm,Φ2.6mm, Φ2.4mm, Φ2mm,Φ1.6mm, Φ0.9mm, etc. |
| Polish manner | UPC, APC（8°）, PC |
| Cable color | Yellow, white, blue, orange, gray, green, etc. |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multimode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Detailed Display of E2000 APC Patch Cord

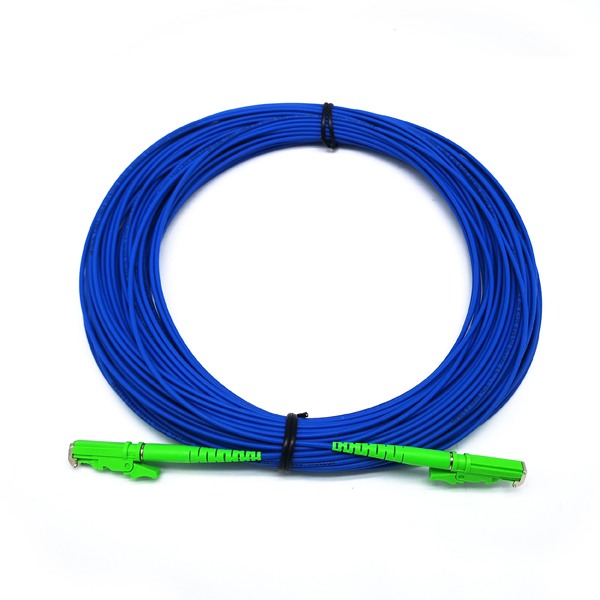

The cable is bundled neatly with black ties, ensuring manageability and preventing tangling. The APC (Angled Physical Contact) polish on the connectors ensures low back reflection, making it ideal for high-performance optical networks. It is typically used in fiber optic communication systems, data centers, and telecommunications networks where high reliability and low loss are critical
The E2000 APC connectors is identifiable by their bright green housing. One end has a male connector with a latch, and the other is a female connector, both designed for precise alignment and low insertion loss. The brand could be customized on the connector, indicating the manufacturer.
The patch cord uses a blue optical fiber cable. The cable is labeled with “OPTICAL FIBER CABLE” and specifications like “G657A1”, “SM”, “9/125”, and “2.0mm”, signifying it is a single-mode (SM) fiber with a 9/125μm core/cladding diameter, G657A1 bend-insensitive fiber type, and a 2.0mm outer diameter jacket, suitable for robust and flexible installations.
