Description

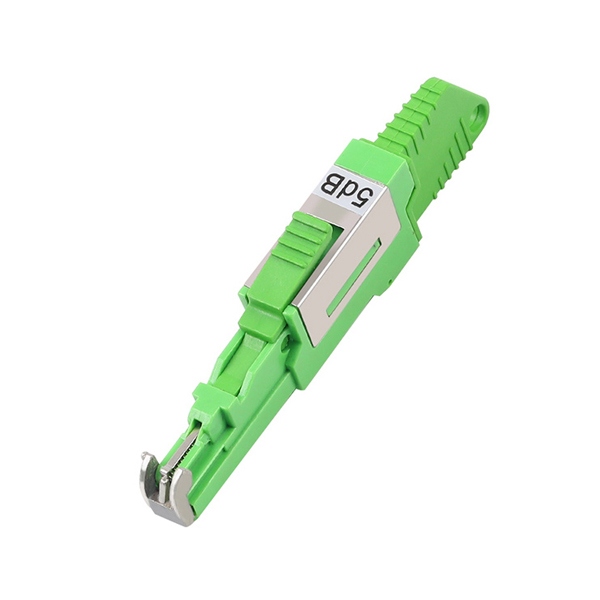

E2000 APC Fixed Attenuator Features
- When inserting the connector, the pull locking device will automatically lock it completely, and when pulling it out, the spring valve can automatically close
- Adopt high attenuation fiber with the cladding mode suppression design
- Attenuation precise and high return loss
- In accordance with Bellcore (GR-910-Core) standard
- Wide attenuation 0dB ~ 30 dB
E2000 Fixed Attenuator Optical Parameters
| Product name | E2000 Build out attenuator | |
| Polish method | UPC or APC | PC |
| Fiber type | Single mode (SM 9/125um) | Multi mode (50/125um) Multi mode (62.5/125um) |
| Operating wavelength | 1310&1550nm | 850&1300nm |
| Return loss | UPC≥50dB, APC≥60dB | ≥35dB |
| Attenuation range | 0-30dB (1 step) | |
| Tolerance | 0-9dB:±0.5dB | |
| 10-20dB:±10% | ||
| Repeatability | ≤0.1dB | |
| Interchangeability | ≤0.2dB | |
| Max optical power | ≤200mW | |
| Working temperature | -40 0C~+750C | |
| Storage temperature | -40 0C~+850C | |
Fixed Attenautor Details
Yingda’s E2000 attenuators are compatible with Diamond brand connectors and are available in both UPC and APC versions, both being single-mode attenuators. UPC connectors are blue, and APC connectors are green.
E2000 attenuator adopt spring valve device, when the E2000 connector is plugged in, the locking mechanism will fully engage. When unplugged, the spring-loaded valve closes automatically.
The fixed attenuator e2000 is made with precise attenuation values and excellent return loss, it can effectively suppress circuit noise and isolate various other signal interferences.
Due to good repeatability, strong interchangeability, and stable and reliable performance, e2000 fixed attenuators are widely used in fiber optic distribution frames, optical communication equipment, etc.
