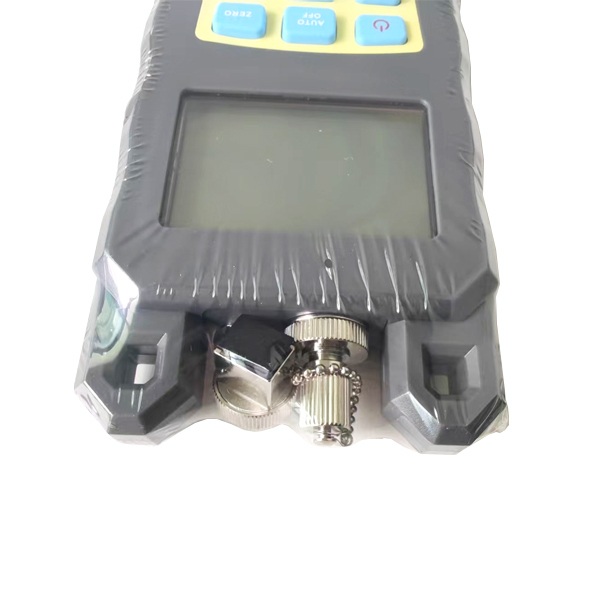

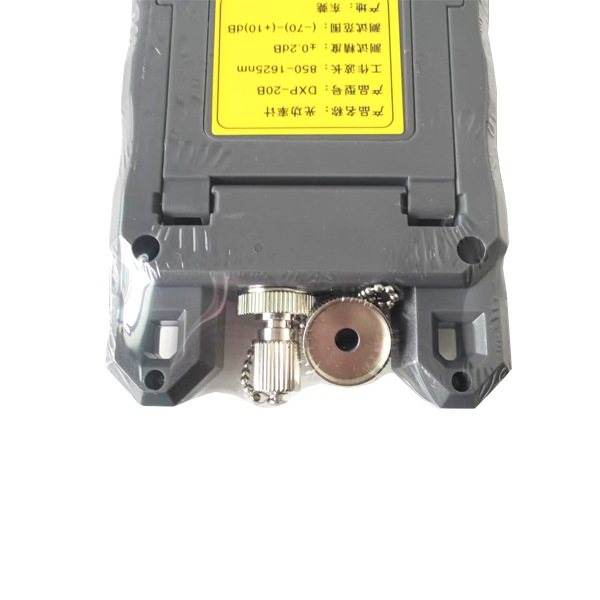

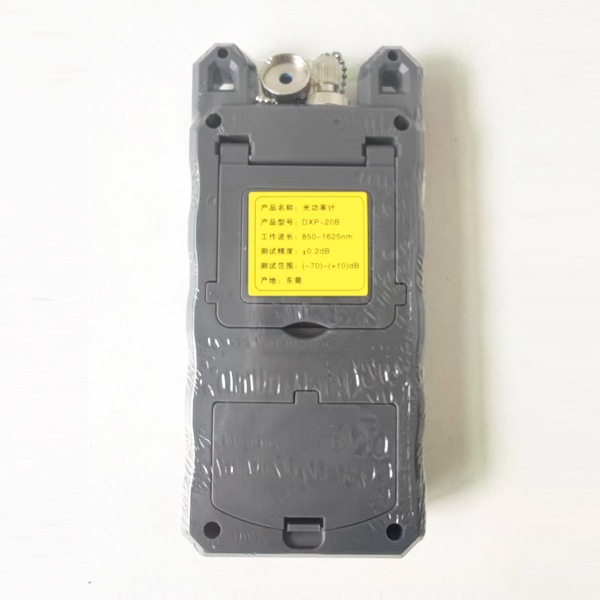

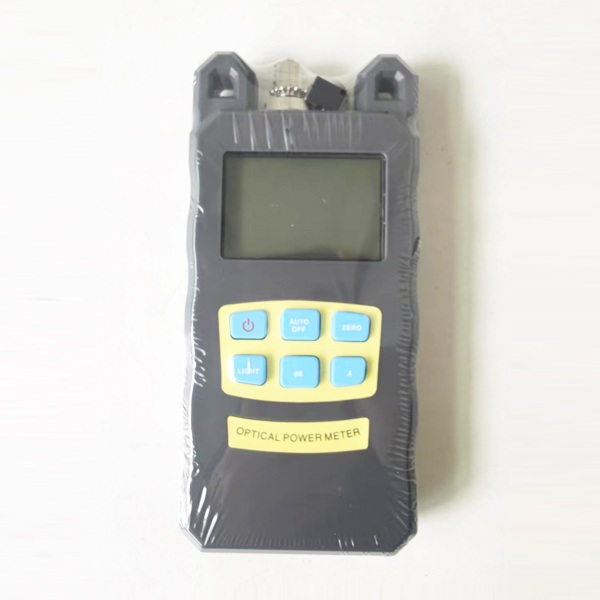

DXP-20B Optical Power Meter, -70~+10dBm, FC/SC/LC, Portable Fiber Tester

The handheld optical power meter (OPM) is specially designed for installation, debugging and maintenance of fiber network. And it is durable, accurate and portable. It has delicate appearance, a optional backlight display, as well as an auto shutdown function. Besides, it has a wide range of wavelengths, accurate testing accuracy, calibration function and available general interface SC FC ST, etc. Both linear index(mW) and nonlinear index(dBm) are displayed on the LCD screen.

Description

Power Meter Features

  • Supports three interfaces SC FC ST, six wavelengths 850/980/1300/1310/1490/1550/1625, with adhesive shock resistance, automatic calibration, and fine workmanship.
  • Shockproof and anti drop soft rubber, soft rubber protection, improves handheld comfort, and to some extent reduces damage caused by machine dropping.
  • Automatic calibration, press the enter+Light button at the same time to enter calibration mode. The screen letter dBm will not be displayed. Press the Zero button to save. Exit calibration mode and the screen letter dBM will be displayed again.
  • LED display instructions identify the current working status, with measured power values in dB, dBm, and MW. The display identifies 6 wavelengths and the current working status, with an error controlled within 0.5dB through rigorous technological technology.
  • It use alkaline battery no. 5 which will normally yield approximately 40hours of continuous operation.
  • It is supplied with a SC optical adapter and there are FC and ST available as options.
  • Optional auto-off function is available.
  • Optional backlight switch can be set from the front panel.
  • User can calibrate the meter by himself.



Power Meter Specification

Power measurement range -70~+10dBm
Probe type InGaAs
Wavelength Range 800~1700nm
Standard wavelength (nm) 850,980,1300,1310,1490,1550,1625
Display resolution Linear display: 0.15, logarithmic display: 0.01dBm
Working temperature -10 ~+65℃
Storage temperature -25 ~+70℃
Automatic shutdown time 10mins
Continuous working time of battery Not less than 40 hours
Dimensions (nm) 180*83*28
Power supply 2*rechargeable batter or 5*Alkaline battery
Net weight 292g
