Description

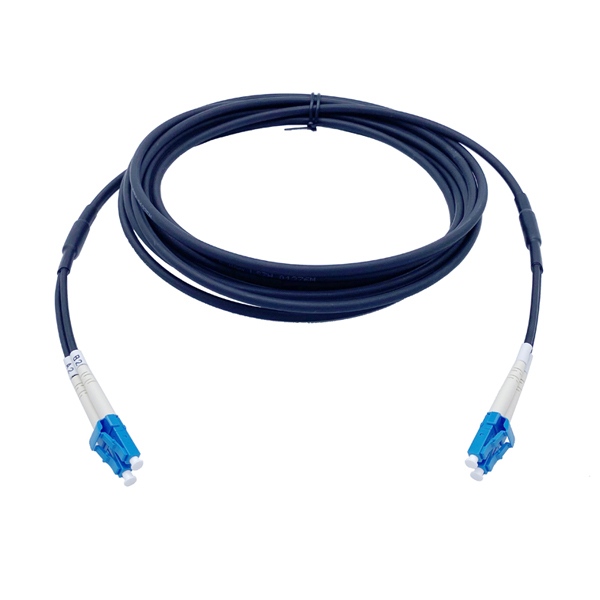

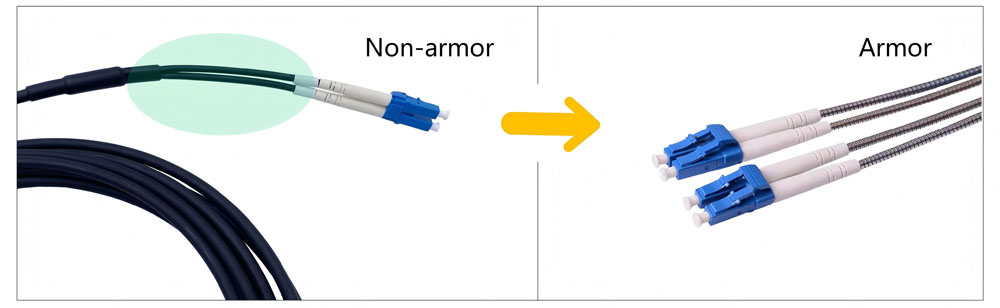

FTTA unarmored base station optical fiber jumper, using φ7.0mm LSZH black optical cable GJFJV. Both ends are in the form of branch armor, with LC / SC / FC / ST optical fiber connectors. In some application, will add pulling eye at both sides which are made from corrugated pipe or woven net outside of the connectors to protect and strengthen it during pulling in duct or pipes.
DLC Cable Assembly Features
- Good mechanical and environmental performance
- Soft, flexible, convenient connection, and support high-capacity data transmission
- Meet various requirements of the market and users
- Length, cable color,cable material, labels all can be customized
- Samples are available
- Meet YD/T895-1997, ITU-T G. 657 Standard
DLC Cable Assembly Application
- FTTA FTTP FTTX outdoor base station remote traction
- RRU to BBU port interconnection
- 3G, 4G, 5G distributed base stations
- Power communication system, etc
- Aerospace & Defence
- Equipment diagnosis
- FO sensor
- WIMAX, BBU, RRU, RRH, LTE
DLC Cable Assembly Patch cord structure
Connector specification
| ITEM | PARAMTER | ||
| Fiber mode | Single mode | Multi mode | |
| Polish mode | UPC | APC | PC |
| Insertion loss | ≤0.2dB | ≤03dB | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥35dB |
| Operating wavelength | 1310, 1550nm | 850nm, 1300nm | |
| Test wavelength | 1310, 1550nm | 850nm, 1300nm | |
| Repeatability | ≤0.1dB | ||
| Interchangeability | ≤0.2dB | ||
| Durability | ≤0.2dB | ||
| SFiber Length | 1m, 2m….. any length optional | ||
| Length and tolerance | 10cm | ||
| Connector type | SC FC LC ST, etc. | ||
| Operating Temperature | -40C ~ +85C | ||
| Storage Temperature | -40C ~ +85C | ||

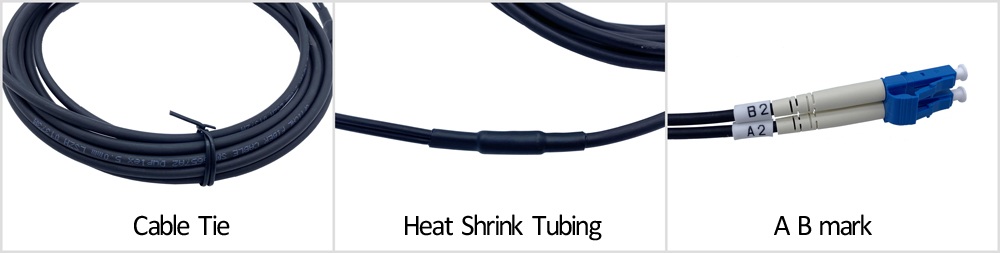

Product Details

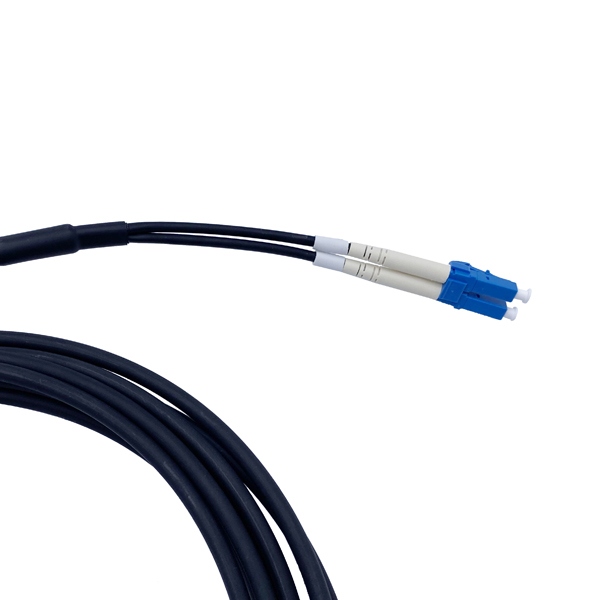

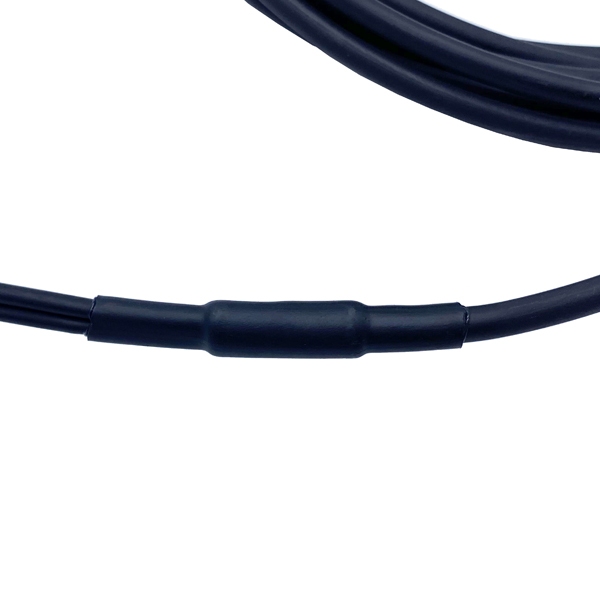

Fanout Length to Add Connectors
If clients not specify, will strip the cable and reserve below length to add connectors, one side 3cm and other side 34cm.

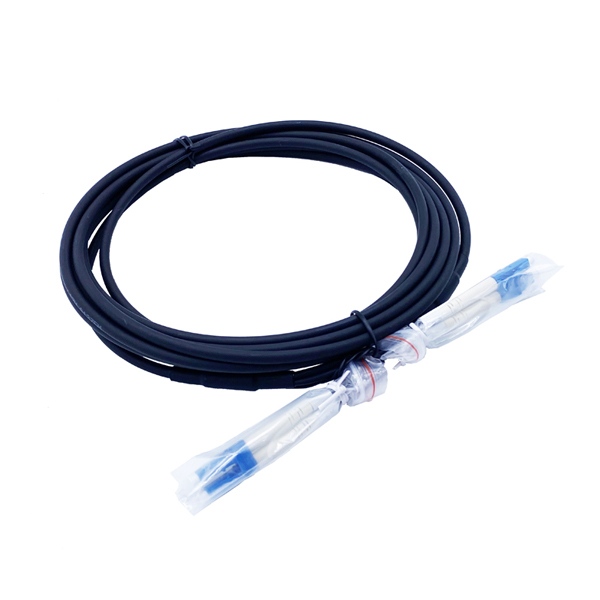

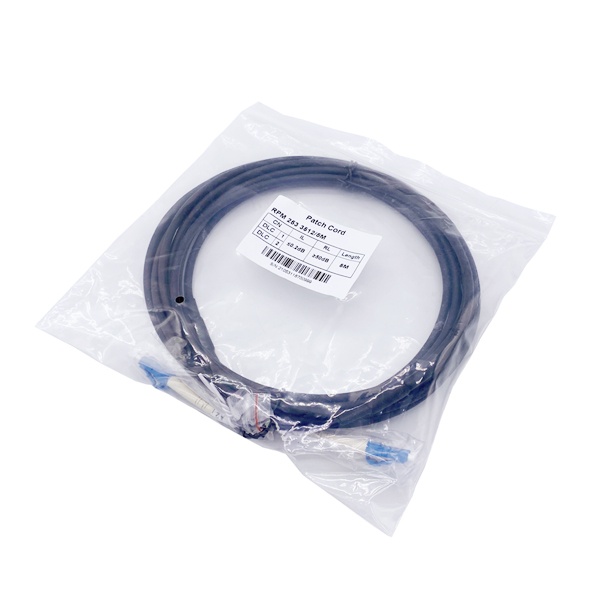

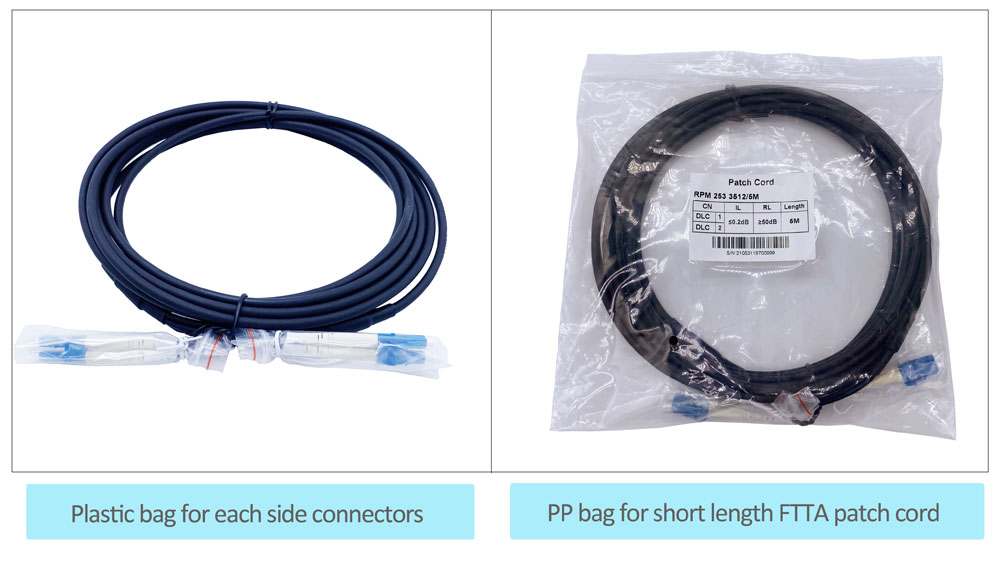

Pack Information
Yingda can use different package methods according to different length or application request, mainly include below 3 types.
Pulling Eye
Yingda can add pullig eyes at both ends or only one side for better pulling and protection during field installation, the pulling eye’s material, shape, and and the length can be custom.
Fiber Optic Connectors Types
All types of fiber optic connectors can be connected withe the cable, SC LC FC ST, Mini SC, DLC, MPO, etc.
GJFJV Cable 5.0mm Round 2Cores Section View
| GJFJV Cable Parameters
|
|||||||||||
| Fiber count | Cable dimension (mm) | Cable weight (kg/km) | Tensile | Crush N/100 (mm) | Min. Bend radius (mm) | Range of temperature (°C) | |||||
| Long term | Short term | Long term | Short term | Dynamic | Static | ||||||
| 2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30~+70 | ||
| Note:
1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||||
| STRUCTURE DETAILS | |||||||||||
| Tight buffer fiber | Diameter | 900±50µm | |||||||||
| Material | PVC | ||||||||||
| Color | white | ||||||||||
| Simplex cable-sub unit | Diameter | 1.9±0.1mm | |||||||||
| material | LSZH | ||||||||||
| Color | Yellow (1)(2) | ||||||||||
| Filler | Diameter | 1.9±0.1mm | |||||||||
| material | LSZH | ||||||||||
| Color | Black | ||||||||||
| Strength member | Kevlar | ||||||||||
| Jacket | Diameter | 7.0±0.2mm | |||||||||
| material | LSZH | ||||||||||
| Color | Black | ||||||||||
Single mode fiber parameter
| Item | Unit | parameter |
| Attenuation | dB/km | 1310nm≤0.4 ; 1550nm≤0.3 |
| Dispersion | Ps/nm.km | 1285~1330nm≤3.5 ;1550nm≤18.0 |
| Zero dispersion wavelength | nm | 1300~1324 |
| Zero dispersion slope | Ps/nm.km | ≤0.095 |
| Fiber cutoff wavelength | nm | ≤1260 |
| Mode field diameter | um | 9.2±0.5 |
| Mode field concentricity | um | ≤0.8 |
| Cladding diameter | um | 125±1.0 |
| Cladding non-circularity | % | ≤1.0 |
| Coating/cladding concentricity error | um | ≤12.5 |
| Coating diameter | um | 245±10 |
| Bending, dependence induced attenuation | 1550nm 1turn-, 32mm diameter;
100turns-60mm diameter |
≤0.5 dB |
| Proof test | kpsi | ≥100 |
Multi-mode fiber parameters
| Item | Unit | parameter | |
| Attenuation | dB/km | 850 nm≤3.5 ;1300 nm≤1.5 | |
| Bandwidth | MHz·㎞ | 50/125um | 62.5/125 um |
| 850 nm≥200 | 850 nm≥160 | ||
| 1300 nm≥200 | 1300 nm≥200 | ||
| Cladding diameter | um | 125±1.0 | |
| Cladding non-circularity | % | ≤1.0 | |
| Coating/cladding concentricity error | um | ≤12.5 | |
| Coating diameter | um | 245±10 | |
| bending, dependence induced attenuation | 850nm,1300nm
100turns,75mm diameter |
≤0.5 at 850 nm1300 nm | |
| Proof test | kpsi | ≥100 | |
Order information -YDPC-CTA-CTB-F1F2-FTFC-CLXXX
| YDPC | – | CTA=Connector A | – | CTB=Connector B | – | F1=fanout length A | F2=fanout length B | – | FT=fiber type | FC=Fiber count | – | CL=Cable length | XXX=Waterproof type |
| YD=yingda
PC=patch cord PG=pigtail |
DLC=LC dupdx
DSC=SC duplex … |
DLC=LC dupdx
DSC=SC duplex … |
01=1CM
03=3CM 34=34CM … |
01=1CM
03=3CM 34=34CM … |
2D=G652D
A1=G65A71 A2=G65A72 M1=OM1 M2=OM2 M3=OM3 M4=OM4 M5=OM5 … |
02=2core
04=4core |
010=10mts
020=20mts 120=120mts … |
PDLC
ODVC NSN FULLAXS H CONNECTOR Opti-tap Mini SC … XXX=no |
For example:
Optical Cable Assembly,DLC/PC,DLC/PC,Multi-mode,GYFJH , 2A1a(LSZH),70m,7.0mm,2 ,Cores,0.03m/0.34m,2mm,Outdoor Protected Branch Cable
ftta patch cord DLC-DLC single mode G65A72 2core—–Part No.: YDPC-DLC-DLC-0334-M202-070XXX
