FTTA unarmored base station optical fiber jumper, using φ 7.0mm LSZH black optical cable GJFJV. Both ends are in the form of branch armor, with LC / SC / FC / ST optical fiber connectors. In some application, will add pulling eye at both sides which are made from corrugated pipe or woven net outside of the connectors to protect and strengthen it during pulling in duct or pipes.
| ITEM | PARAMTER | ||
| Fiber mode | Single mode | Multi mode | |
| Polish mode | UPC | APC | PC |
| Insertion loss | ≤0.2dB | ≤03dB | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥35dB |
| Operating wavelength | 1310, 1550nm | 850nm, 1300nm | |
| Test wavelength | 1310, 1550nm | 850nm, 1300nm | |
| Repeatability | ≤0.1dB | ||
| Interchangeability | ≤0.2dB | ||
| Durability | ≤0.2dB | ||
| Fiber Length | 1m, 2m….. any length optional | ||
| Length and tolerance | 10cm | ||
| Connector type | SC FC LC ST, etc. | ||
| Operating Temperature | -40C ~ +85C | ||
| Storage Temperature | -40C ~ +85C | ||

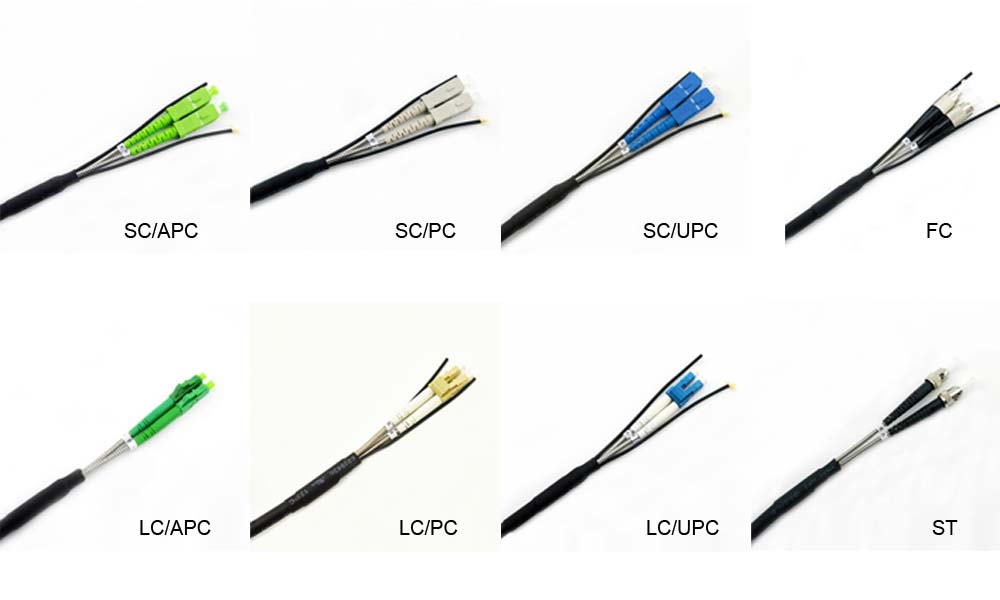

Yingda is a professional fiber patch cord manufacturer that can customize various fiber optic connectors SC LC FC ST, using high-quality ceramic ferrule, grinding methods UPC, PC, APC, etc.

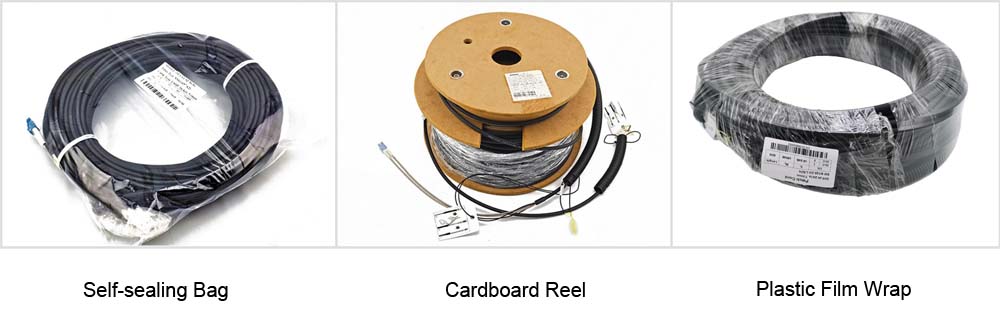

Yingda provide different package for different length, if short patch cord, we use plastic self seling bags; if longer like 50m, 100m, 200m will use plastic film to wrap them. For better field installation, there are customer who prefer a paper reel allows for better control over the fiber optic cable’s movement and improves the ease of cable deployment and retraction. If your budget allows, this method is worth considering.

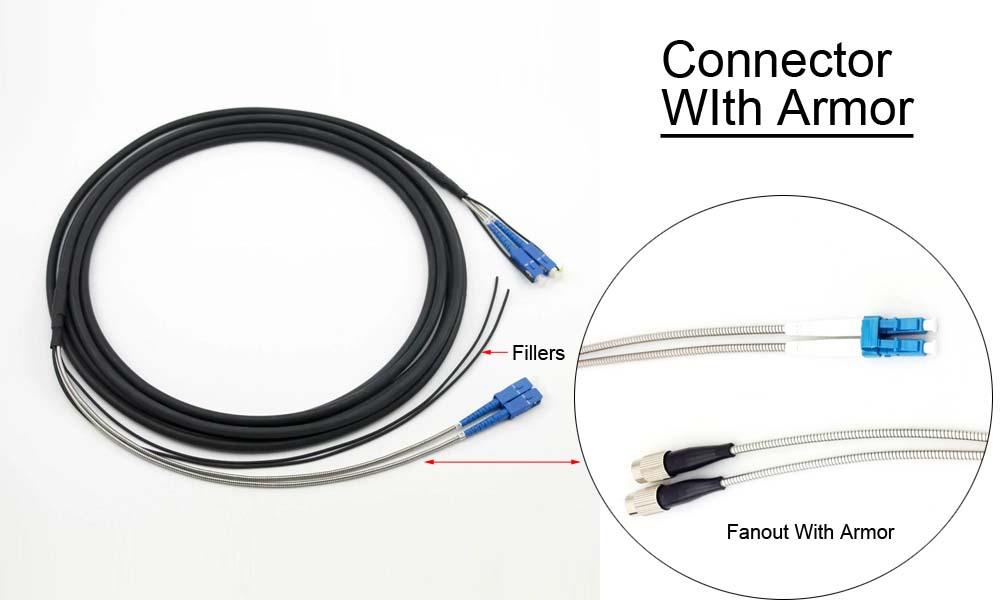

The standard practice for this duplex fiber optic patch cord is to strip the outer sheath of the main cable, then add stainless steel armor tubes to both ends, and finally pre-terminated a connector. Adding the metal armor allows it to withstand higher tension, better protecting the cable from damage. The two black filler cords are cut off during the cable cutting process.

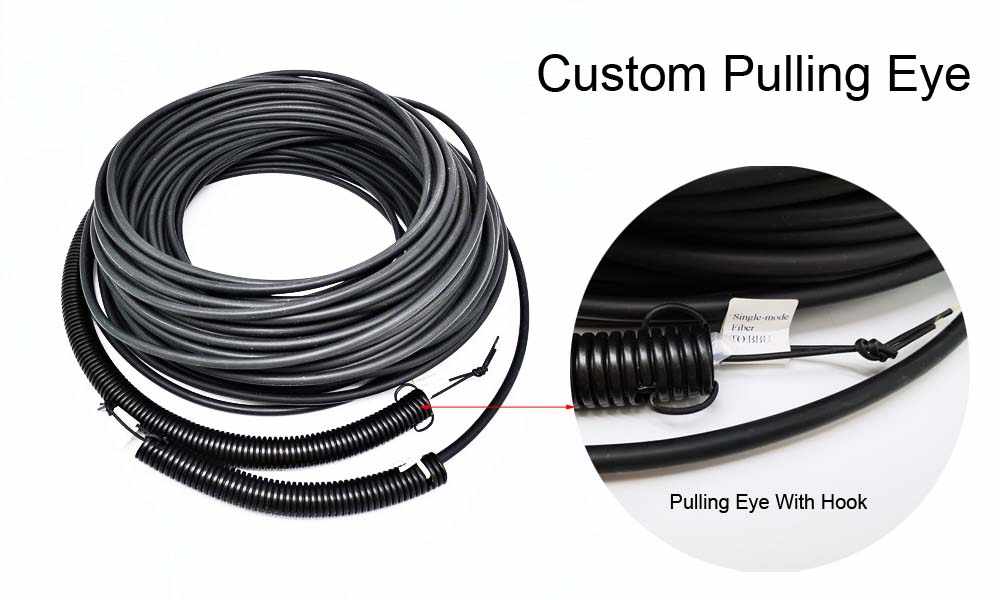

In addition to the simple operations mentioned above, sometimes outdoor construction requires dragging fiber optic cables through conduits or narrow spaces. In such cases, we can add corrugated protective tubing to both ends of the patch cord and two nylon hooks at the very end. This effectively protects the fiber optic connectors inside, preventing scratches or breakage, and also allows for faster and more efficient cabling.
EXW, FOB, CFR, CIF, DDU, DDP, CPT are optional.
TT, Paypal, Escrow, Alipay, Wechat are optional, no credit.
Yingda accept small bulk order, and sample order. If retailer, please consult our fiber optic distributor in local.
Yingda support team working time: 9am-18pm from Monday to Friday, but AI robot will be always online, you can leave message, will get back to you on the first sight your mails.
If urgent, please CHAT ON WhatsApp:+8618688982406
Yingda productivity is high efficiency, very fast. Normally 2-15 days on different quantity. Let's talk for more details.
Yes, we can do pack or assembly like your requirements, please specify details in purchase order.
High productivity efficiency, skilled front-line operators and strict production control ensure timely delivery.
High-precision testing equipment and top industry quality control system ensure high quality standards.
Long-term stable supply chain and cost control that changes in line with market trends ensure the best price
The more details, the better offer, will reply you in 24 hours.
