Description
Features of Din Rail Splice Box
- Standard size, light weight and reasonable structure
- Made of cold rolled steel or aluminum material with spraying
- Splice tray can be overturn, easy to manage
- E2000 SC LC FC ST adapter ports optional
- DIN guide rail, easy to install on rack patch panel in cabinet
- Capacity for 4cores, 6core, 8core, 12cores to 24cores
- Indoor wall mount or DIN rack
- Color white or black both ok
Din Rail Splice Box Specification
| Model | Adapter | Adapter Quantity | Capacity (core) | Dimension (mm) |
| DIN-SC06 | SC simplex | 6 | 6 | 130*141*45(1U) |
| DIN-8ST | ST simplex | 8 | 8 | 130*141*45(1U) |
| DIN-2SC06 | SC duplex | 6 | 12 | 130*141*45(1U) |
| DIN-12ST | ST simplex | 12 | 12 | 130*141*45(1U) |
| DIN-2SC12 | SC duplex | 12 | 24 | 130*141*67.5(1.5U) |
| DIN-SC24 | SC simplex | 24 | 24 | 130*141*67.5(1.5U) |
Detailed Display of Din Rail Splice Box

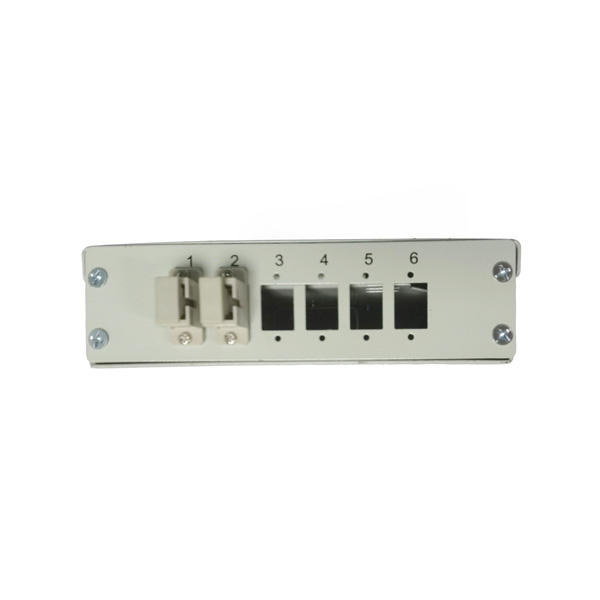

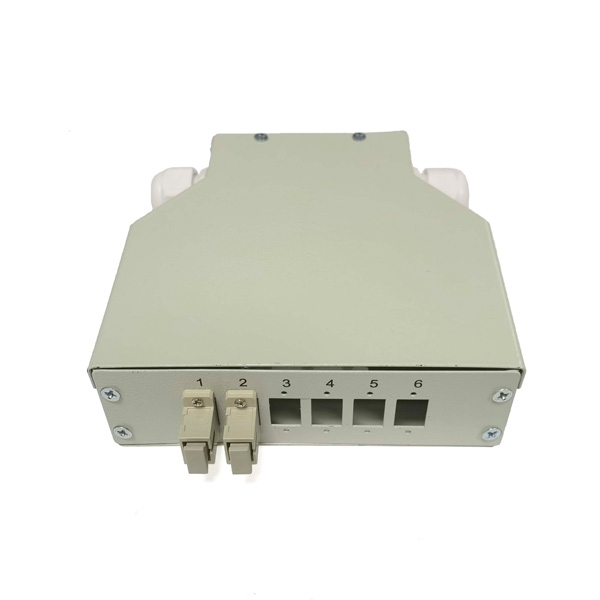

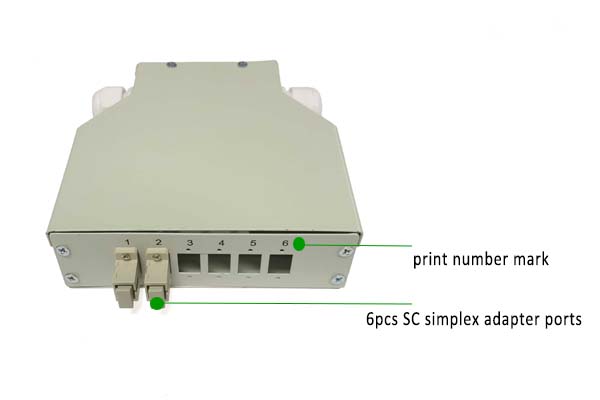

The splice box SC06 has 6pcs SC simplex adapter ports, which are essential for fiber optic connections. There are print number marks (1-6) to help identify and manage the ports conveniently.

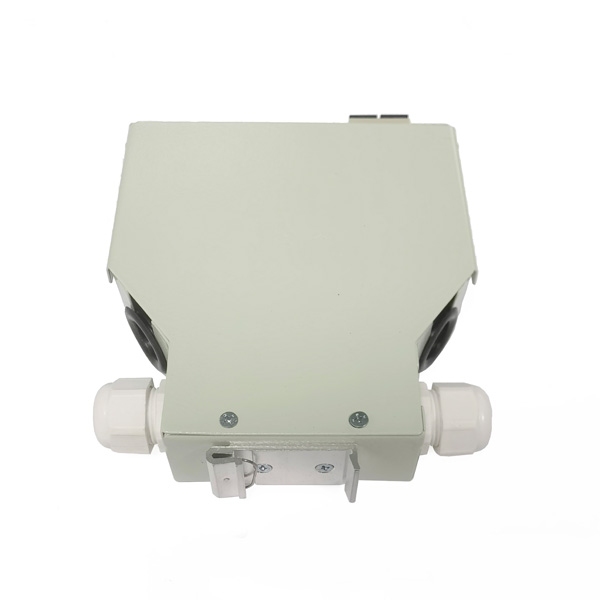

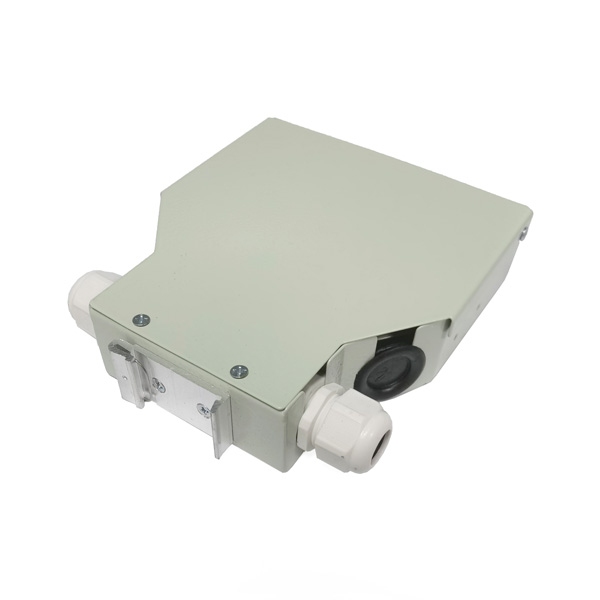

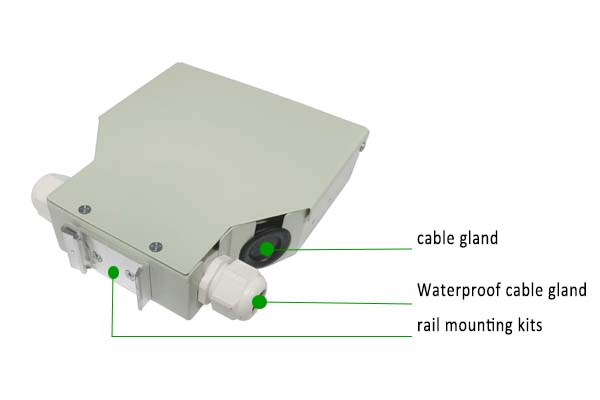

In terms of cable management, it is equipped with a cable gland and a waterproof cable gland, ensuring effective cable entry and exit while providing waterproof protection, which is crucial for maintaining the integrity of fiber optic signals in various environments.
Additionally, rail mounting kits are included, allowing for easy and stable installation on DIN rails, enhancing its usability in different setups. The overall design is practical, catering to the needs of fiber optic splicing and connection with considerations for organization, protection, and installation convenience.
Optional Accessory
 |  |  |
| GJS-H015 3×3 Fiber Optic Joint Closure | lc apc adapter duplex, SC footprint welding body | ST Connector 12 Strands Pigtail |
