Description
Features of Din Rail Fiber Splice Box
- Standard size, light weight and reasonable structure
- Made of cold rolled steel or aluminium material with spraying
- Splice tray can be overturn, easy to manage
- E2000 SC LC FC ST adapter ports optional
- DIN guide rail, easy to install on rack patch panel in cabinet
- Capacity for 4cores, 6core, 8core, 12cores to 24cores
- Indoor wall mount or DIN rack
- Color white or black both ok
Specification
| Model | Adapter | Adapter Quantity | Capacity (core) | Dimension (mm) |
| DIN-SC06 | SC simplex | 6 | 6 | 130*141*45(1U) |
| DIN-8ST | ST simplex | 8 | 8 | 130*141*45(1U) |
| DIN-2SC06 | SC duplex | 6 | 12 | 130*141*45(1U) |
| DIN-12ST | ST simplex | 12 | 12 | 130*141*45(1U) |
| DIN-2SC12 | SC duplex | 12 | 24 | 130*141*67.5(1.5U) |
| DIN-SC24 | SC simplex | 24 | 24 | 130*141*67.5(1.5U) |
Details of Din Rail Fiber Splice Box

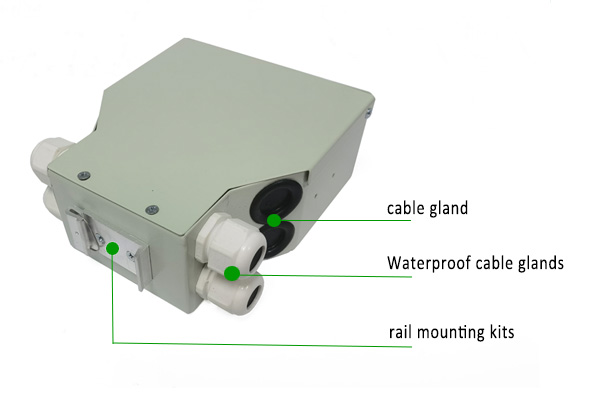

Externally, it features cable glands and waterproof cable glands, which ensure the cables enter and exit the box securely while preventing water ingress, making it suitable for various environments. Rail mounting kits enable easy installation on DIN rails, enhancing convenience in deployment.

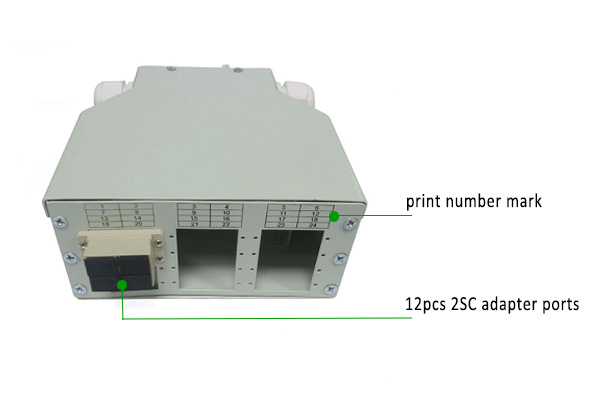

On one side, there are 12pcs 2SC adapter ports for connecting fiber optic cables, and print number marks help in identifying and organizing different ports and cables efficiently.
Internally, the box has a well-designed structure with components to manage fiber splicing and storage. The internal layout allows for orderly arrangement and protection of fiber optic cables during splicing and distribution, ensuring stable and reliable fiber optic connections.
