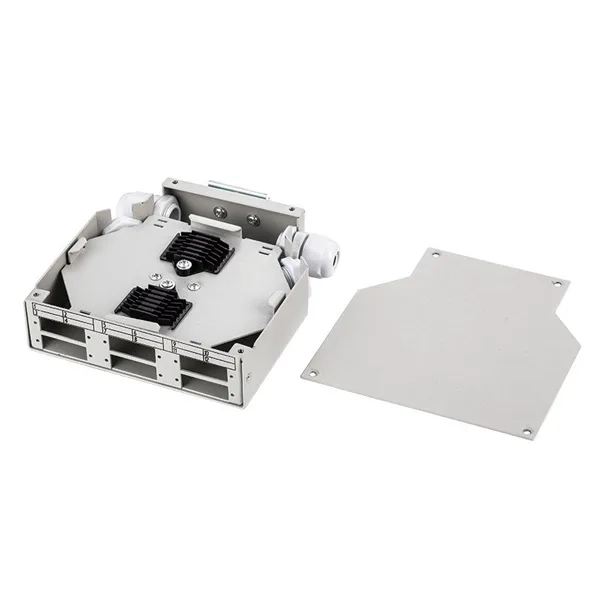

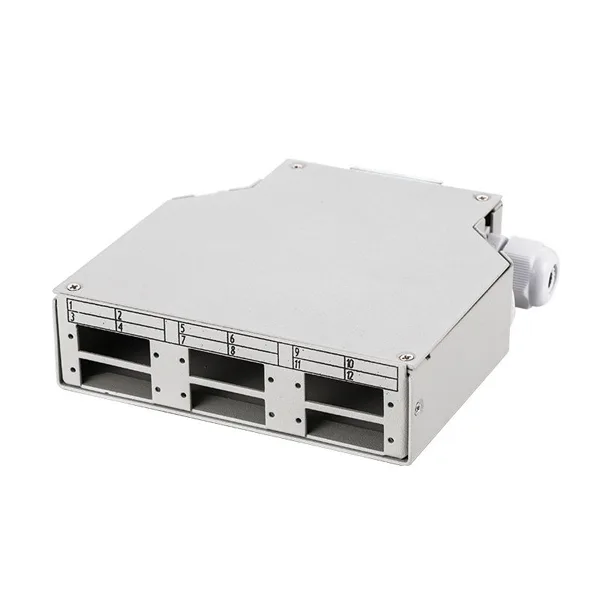

Yingda Fiber Optic DIN terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. This metal terminal box is made of cold rolled steel, adapter plate is changeable, suitable for SC FC LC ST adapters, back with brackets to mounted on the 35mm DIN rail.

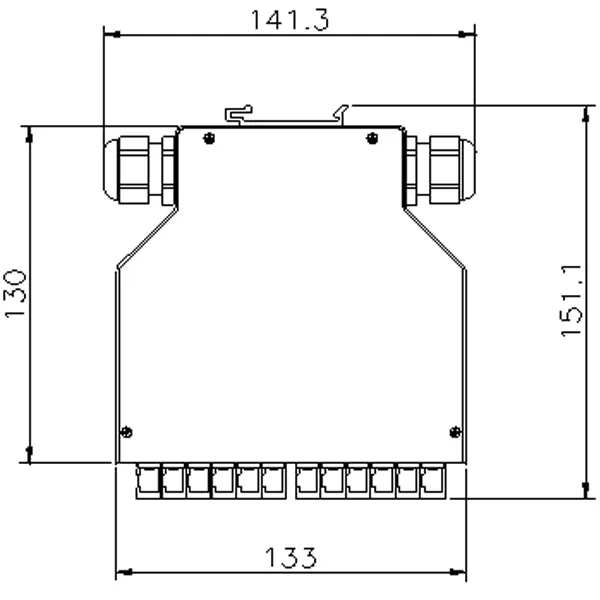

| Model | Adapter | Adapter Quantity | Capacity (core) | Dimension (mm) |
| DIN-SC06 | SC simplex | 6 | 6 | 130*141*45(1U) |
| DIN-8ST | ST simplex | 8 | 8 | 130*141*45(1U) |
| DIN-2SC06 | SC duplex | 6 | 12 | 130*141*45(1U) |
| DIN-12ST | ST simplex | 12 | 12 | 130*141*45(1U) |
| DIN-2SC12 | SC duplex | 12 | 24 | 130*141*67.5(1.5U) |
| DIN-SC24 | SC simplex | 24 | 24 | 130*141*67.5(1.5U) |

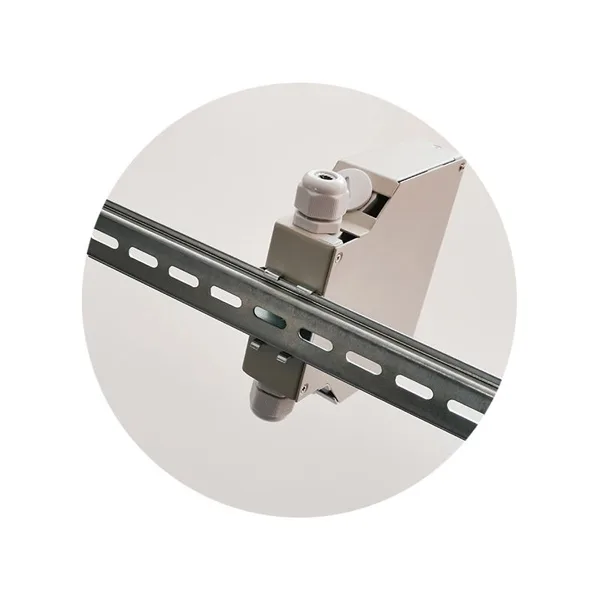

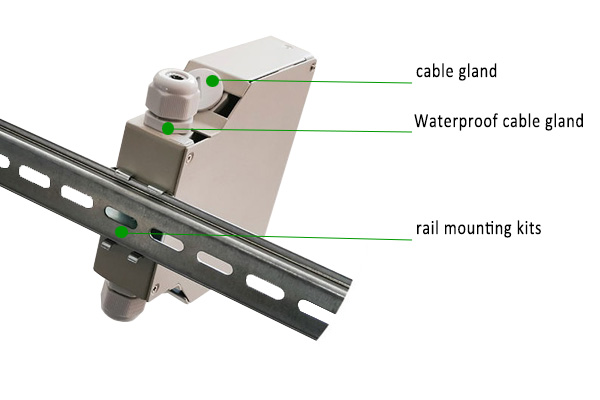

From the side view, it is equipped with a cable gland, a waterproof cable gland to ensure good sealing and waterproof performance, and rail mounting kits that allow it to be conveniently mounted on a DIN rail.

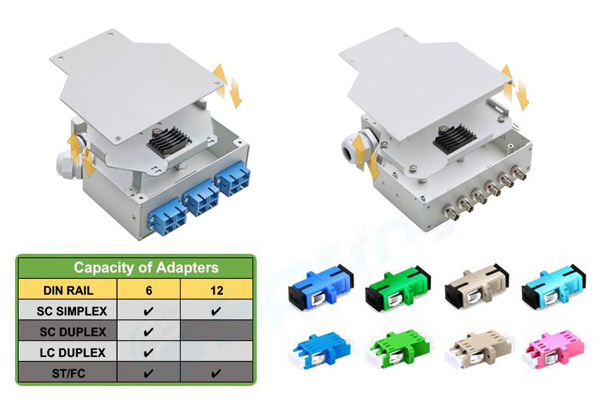

In terms of adapter capacity, for DIN rail installation, it can support 6 or 12 SC simplex adapters, as well as SC duplex, LC duplex, and ST/FC adapters.

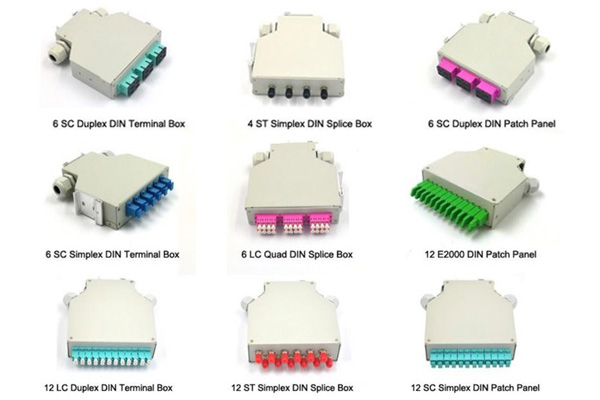

There are various similar products in the series, such as 6 SC Duplex DIN Terminal Box, 4 ST Simplex DIN Splice Box, etc., showing a wide range of options for different fiber optic connection and splicing needs.
 |
 |
 |
