Description
SM Fiber Patch Cord Features
- Low insertion loss and high return loss
- Good exchange ability and durability
- High temperature stability
- 100% interferometer measurement
- Conforms to Telcordia GR-326-CORE
Specification
| Connector type | D4 connector |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc. |
| Wavelength | 1260-1650nm |
| Fiber cores | 1 core, 2 cores or multi-fiber |
| Cable diameter | Φ3mm,Φ2.6mm, Φ2.4mm, Φ2.0mm,Φ1.6mm, Φ0.9mm or custom |
| Polish method | UPC, PC, APC（8°）, SPC |
| Cable color | Yellow, white, blue, green, grey, red, black, aqua, orange, purple, etc. |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multimode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Detailed Display of SM Fiber Patch Cord

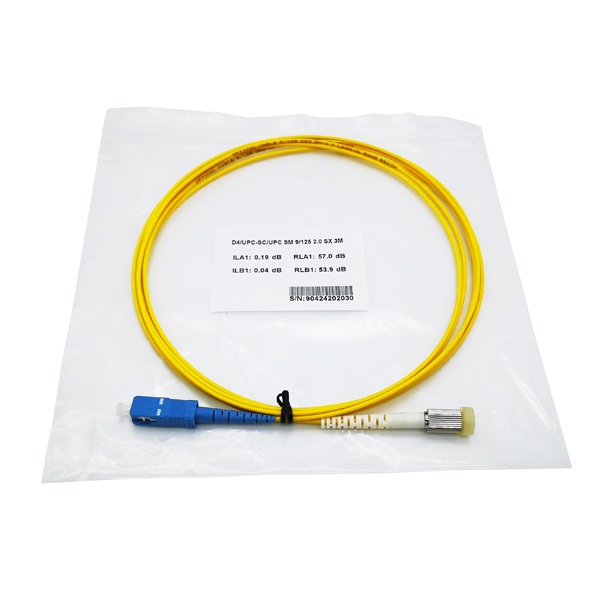

This fiber cable is yellow, providing good protection for the internal fiber and ensuring durability. Length in 3 meters, it is suitable for various deployment scenarios in optical communication systems, such as connecting network devices, optical transceivers, and fiber optic distribution frames.
The goods comes in a transparent plastic bag, keeping the patch cord clean and protected during storage and transportation.
The one end is an SC connector (blue, with a push-pull latching mechanism) and the other end is an FC connector (with a metal ferrule and screw-on latching mechanism, featuring a white boot).
