Description

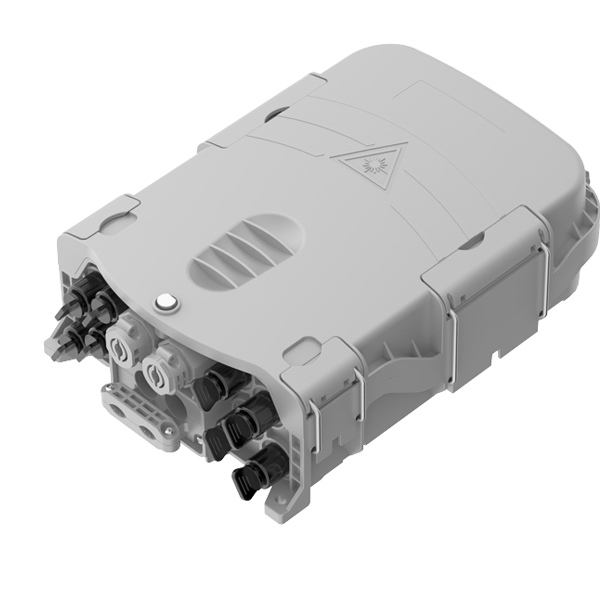

CTO-8SX Fiber Distribution Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.
It is normally installed in the way of wall mounting or pole mounting.
Specification
- Water-proof design with IP65 Protection grade.
- Integrated with splice cassette and cable management system.
- Manage fibers in a reasonable fiber radius condition.
- Fiber bend radius control more than 35mm.
- 1 uncut cable port for feeder cables.
- Fixed hermetic seals in all its grooves
- The entire fiber route protected by transport tube
- Complete opening of the hinges with stop included
- Protected and organized pigtail space
- Natural route “not forced” of the loose tubes and optical fiber.
- Protection of Splitters and Pigtails
- Support customized services such as logo screen printing.
Specification
Model | CTO-8SX |
Size (Pic 1) | H×W×D = 300×200×95 (MM) |
Material | PC+ABS |
Color | Gray(Customizable) |
Splice Capacity | 36 Cores |
Splitter Capacity | 3 Sets |
Splitter Type | SC, Mini Type, 1:2 / 1:4 / 1:8 |
Adapter Type | SC/APC ,Pre Connectorized |
Adaptor Capacity | 8 Pcs |
Incoming Cable Port | 3x(Φ10~14mm), 1x Mid-span 10~14mm |
Drop Cable Port | 8 Ports |
Installation Method | Wall, Pole Mounted |
Operating tempertaure | -10~+70℃ |
Life time | 25 years |
Table 1 Model and configuration
CTO-8SX optical splitter distribution box Dimension
![CTO-8SX dimension](https://yingdapc.com/wp-content/uploads/2024/04/CTO-8SX-dimension.png)
Installation
5.1 Wall-mounted installation
Drill 3 holes in the wall according to the installation size,place the expansion bolt,place the box to match up the holes and use bolt to fasten.
5.2 Pole-mounted installation
Fix 2 set of the hose clamps to the telecom pole .
Pic 4 Pic 5
