Description
ODB Fiber Optic Features
- Separatecompartments for splicing and patching. Each compartment has a door closed by a triangle key system
- Possible scalability depending on the number of operators addressing the building
- Optical cable access left with lashing system
- Standardized dimension, according to TELEFONICA recommendations.
ODB Fiber Optic Specification
Model | CTO-48P |
Dimension(W*H*D) mm | 450*180*150 |
Cable port | 2uncut port:15mm, 2round port:20mm |
Net weight | 3.2kg |
Max capacity | 96 cores (6*16F) |
Adapter qty | 48SC |
Splitter qty | Max. 4 pcs 1:16 PLC splitter |
Color | Grey |
Working temperature | -25°C ~ 55°C (5 to 95% Humedad relative) |
Protection Level | IP30 |
ODB Fiber Optic Details

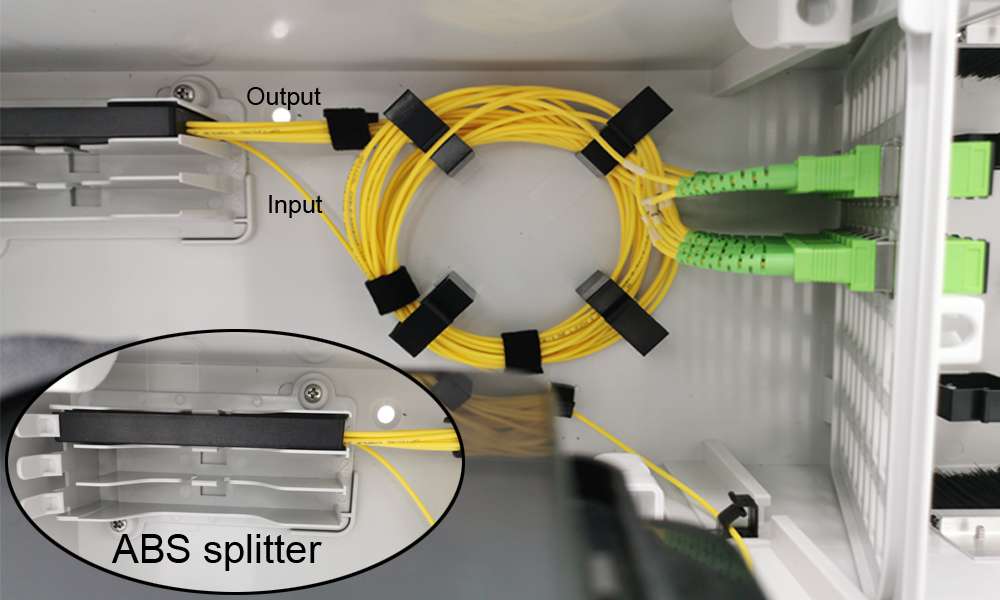

This wall mounted ODB fiber optic box are designed to hold 3pcs ABS splitter PLC 1×16 with SC connectors, the input pigtail of ABS splitter will be brought into the splice tray, while the output SC pigtails of ABS splitter will be connected into the SC adapters on the distribution area.

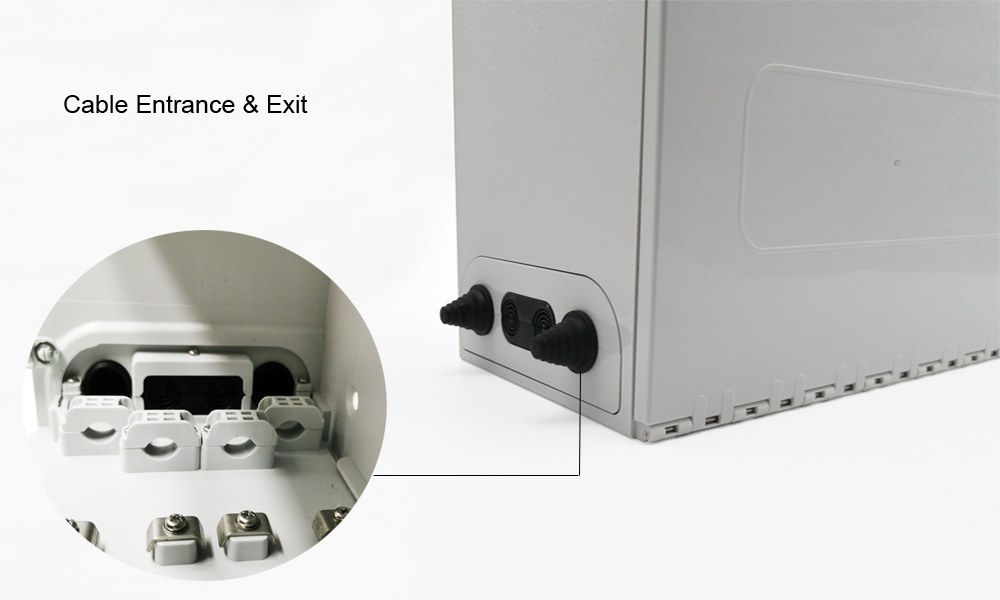

CTO-48P fiber optic box are total enclosed with rubber seals for cable entrance or exit. there is cable clamps or fixtures inside of the box to hold the strength member or armid yarns in place, not bother the cable winding and distribution.

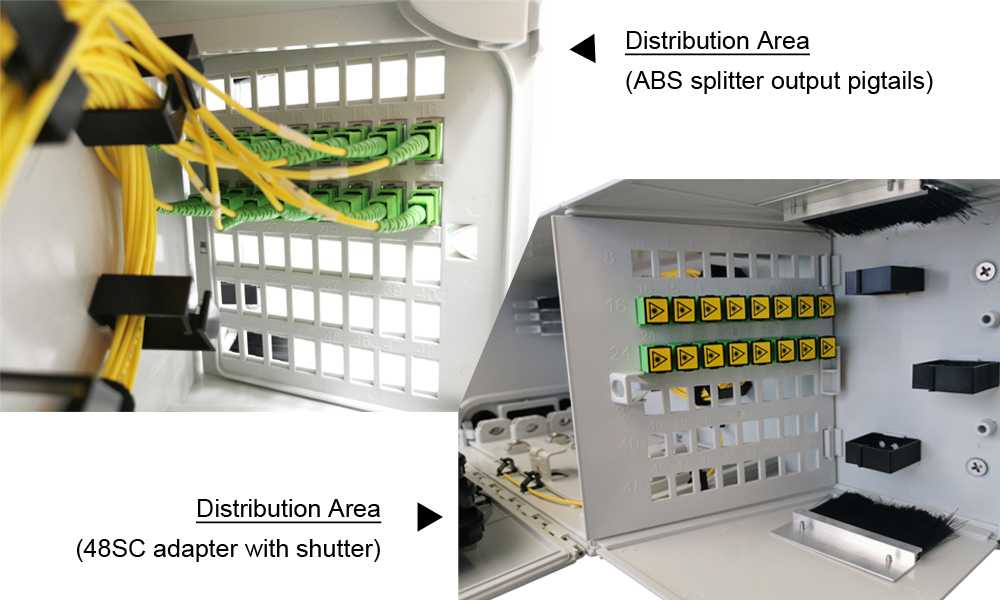

The distribution area with 48 SC simplex holes to hold the ABS PLC Splitter output pigtails and then distribute them into 48pcs subscribers with drop cable patch cords. On the right of the adapter panel, there are cable entrance from the top and bottom, with dust proof protection and cable clamps for better reasonable cable management.

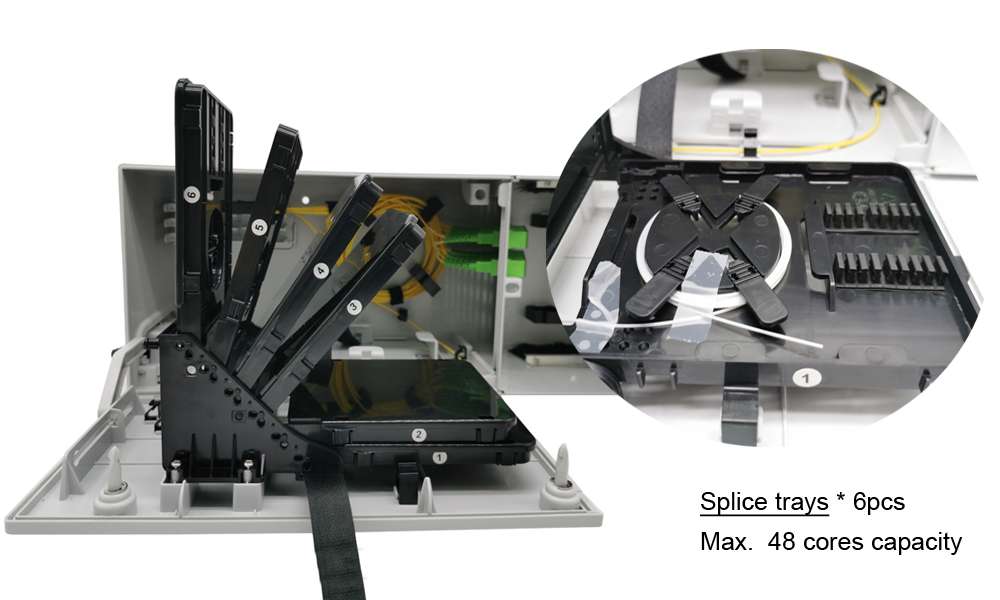

This fiber box can used as fiber splice box which do maximim 48 cores single fiber splicing with 6pcs plastic splice trays, each tray hold 8pcs slots for heat shrink protection tubes on the right, and left area is fiber winding area. Each splice tray is separate with cover with clip on the bottom holder and can be flip up 90 degree for better management.

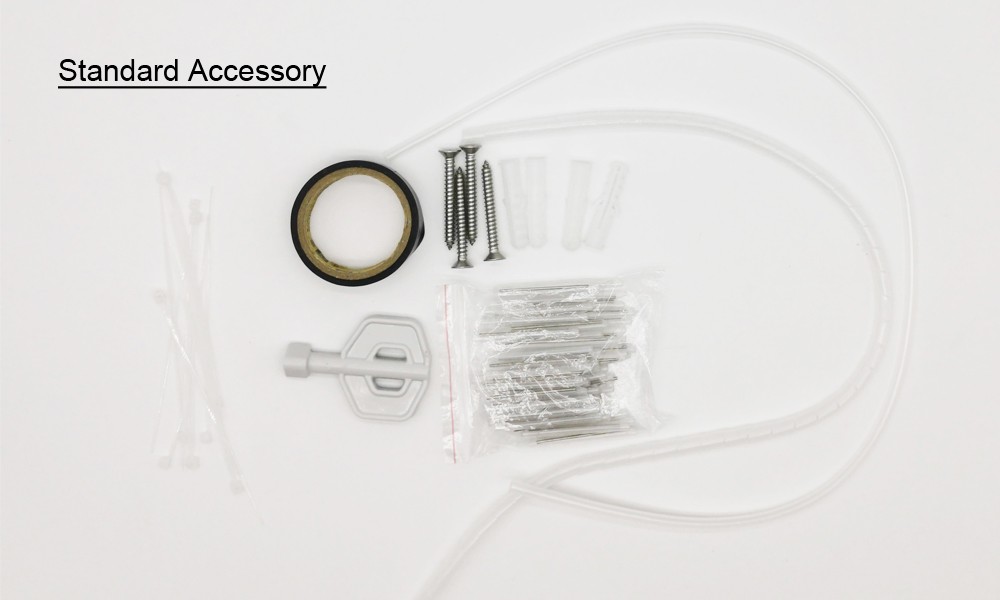

Yingda configure standard accessory for each optical distribution box ODB fiber optic: nylon ties, adhesive tape, buffer tube, spiral tube, wall mounting screws, sleeve, open key, etc
