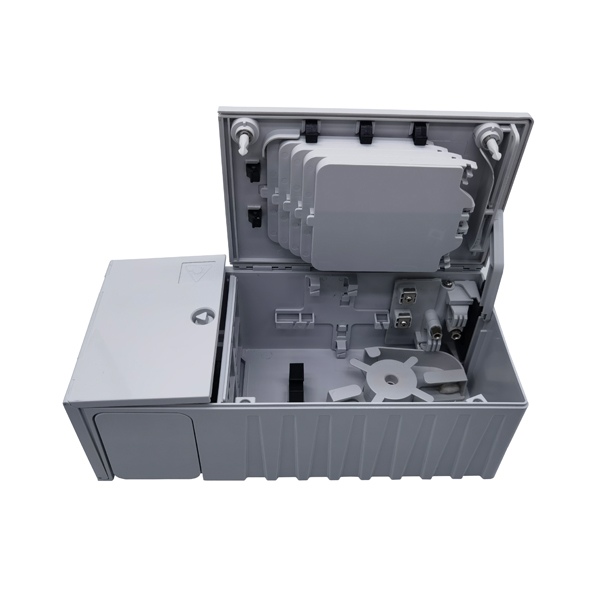

32 Sc Plastic Wall Mount Fiber Dp Box For Fiber Pigtails And Adapters, White Color

It is an optical distribution box for Fiber to The Home application, pooling module for splicing, coupling ,and stirring up to 32 optical fibers. The modules can be stacked to support configuration of greater capacity or to allow the pooling between building operators and commercial operator. It allows the connection between the cable coming from the outside and the cable of the riser.

SKU CTO-32P Category Tags , Brand:
SEND INQUIRY

Description

Features

  • Separatecompartments for splicing and patching. Each compartment has a door closed with triangle key
  • Possible scalability depending on the number of operators addressing the building
  • Optical cable access left with lashing system
  • Standardized dimension, according to TELECOM recommendations



Specification

Model CTO-32P
Dimension(W*H*D) mm 320*150*105
Cable port 1big round:15mm, 2 small round:7mm
Net weight 1.8kg
Max capacity 32cores (4*8F)
Adapter qty 32 SC without flange
Splitter qty 2pcs 1×16 ABS splitter
Color Grey
Material PC+ABS
Working temperature -25°C ~ 55°C (5 to 95% Humedad relative)
Protection Level IP30
