Description

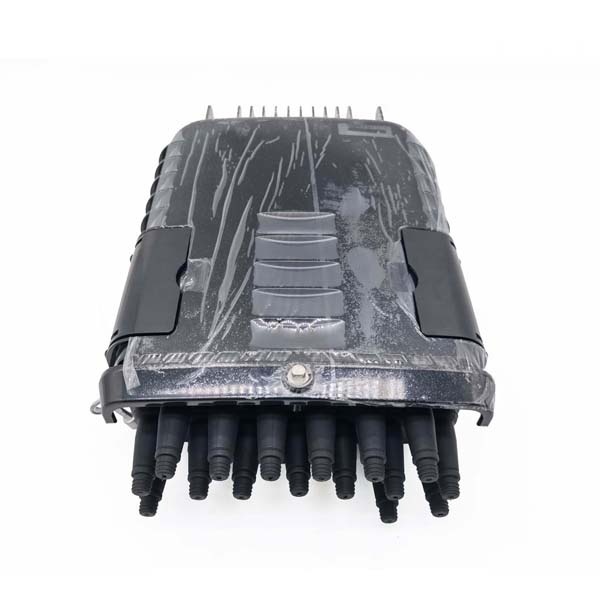

CTO-16R Fiber distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
- Total enclosed structure with key and buckles
- High strength engineer plastic,wet-proof, water-proof, dust-proof, anti-aging
- Outdoor wall mount, pole mount or aerial mount, protection level up to IP65
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one
- Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
Specification
| Model | CTO-16R |
| Dimension (A*B*C) /mm | 290*210*82mm |
| Max.Capacity | 48 cores ( dual fiber) |
| Cable entry | Uncut port: á´“12.5-15 mm |
| Cable exit | 16pcs Mini SC adapters |
| Splitter quantity | 1pc 1×16 or 2pcs 1×8 splitter |
| Waterproof grade | IP65 |
| Material | PC+ABS |
| Color | black |
Standard Accessory:
expansion screws, buffer tube, nylon tie, clamps, sleeve, key, etc.
Mounting method:
pole mount, wall mount
