Description

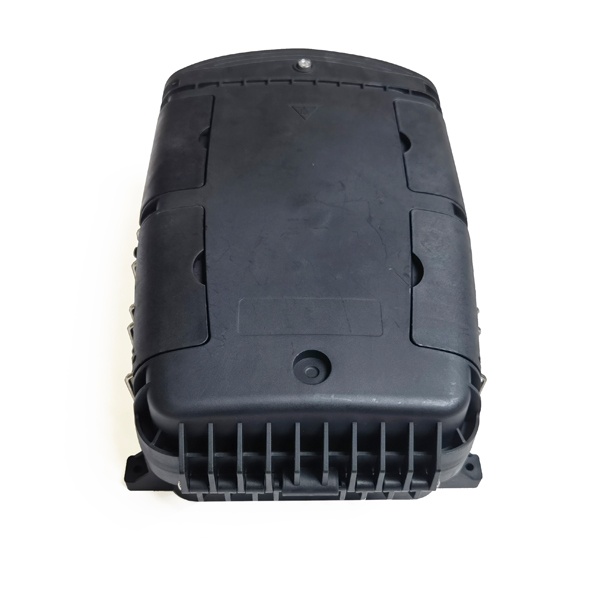

CTO-16QX Fiber Optic Splice Box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
- Water-proof design with IP-68 Protection level. Integrated with flap-up splice trays
- Impact test:IK10,Pull Force:100N,Full rugged design
- All stainless metal plate and anti-rusting bolts, nuts
- Fiber bend radius control more than 32mm
- 4x 12F splice trays, 4pcs of 1*8 PLC splitter can be installed as an option
- Plug-and-play installation, easy for maintenance and expansion
- 180 degree access with 4pcs of buckled lock structure
- 8x reinforced adapters for drop cable with reinforced connectors
- 1x mid-span cable entrance for uncut cables (7-18mm) and 2x mechanical glands for distribution cable (7-18mm)
Specification
| Model | CTO-16QX |
| Dimension (A*B*C) /mm | 355*256*140 |
| Max Capacity | 48 cores (4*12fiber tray) |
| Cable entry | 2 big round: ᴓ8~14mm, branch cable:ᴓ16mm |
| Cable exit | 16 pcs Mini SC adapters |
| Splitter quantity | 2pcs 1X8 mini splitter or 1pc 1×16 splitter |
| Waterproof grade | IP68 |
| Material | PP+GF |
| Color | Black |
Standard Accessories
Splice trays x 4pcs, wall mounted kits, fiber protective sleeves, cable protection tube, manual.
Optional Accessories
Pole mounted kits, aerial hanging kit.
Splicing tray
| Item | Splice tray A | Splice tray B |
| Dimension (HXWXD) /mm | 134*104*8 | 134*104*4 |
| Net weight/kg | 0.021 | 0.015 |
| Picture | ||
| Color | Customized | Customized |
| Material | PC+ABS | PC+ABS |
| Capacity | 12cores (single fiber), 1slot for 1×8 plc tube | 8core (single fiber) |
