Description

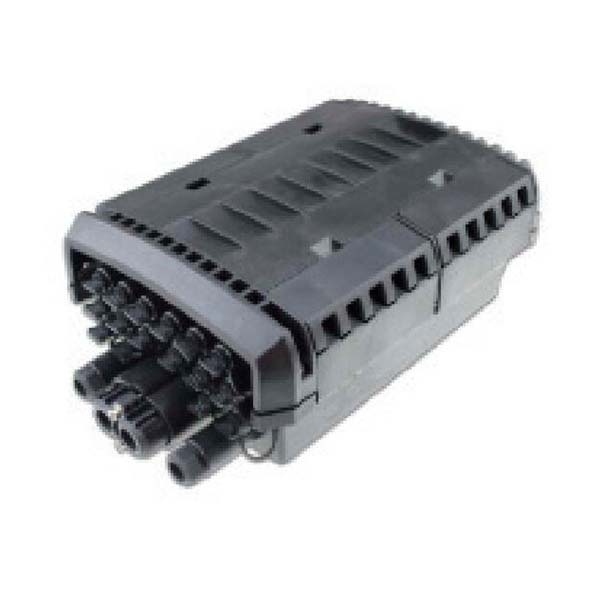

CTO-16C is access splitter distribution box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
- Box is total enclosed with screw rod + 4 brackets
- High quality PP+GFplastic, with strength strips on lid or bottom
- Anti-UV, Ultra violet and rainfall resistant,protection class IP68
- Dis-mountable adapter panel max. 24SC, 5trays max. fusion 48 cores single fiber
- Cable clamp and fixture for entry and exit, and large redundant fiber storage space,reasonable bend radius
- Support mid span termination, easy operation and installation
Specification
| Model | CTO-16C |
| Dimension (A*B*C) | 385*245*145mm |
| Max.Capacity | 48 cores single fiber (4pc 12F tray) |
| Cable entry | 1mid span+2round ports |
| Cable diameter | 1mid span:10-17.5mm; 2 round ports: 8-17.5mm |
| Cable exit | 16 pcs mini SC hardened adapters |
| Adapter quantity | 24 SC |
| Splitter quantity | 2pc 1×8 or 1pc 1×16 steel tube splitter |
| Material | PP+GF (Modified polymer plastic + Glass fiber) |
