Description

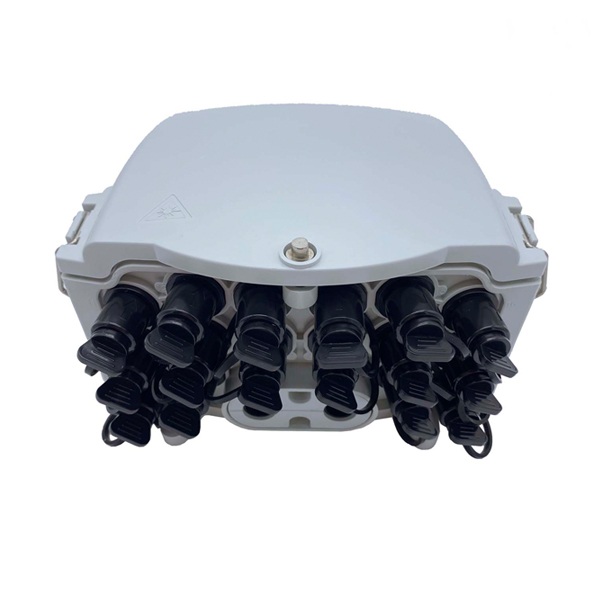

CTO-16A is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter.
It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
- Box is with key + 2brackets, cable entry can be waterproof gland or uncut port
- FTTH outdoor wall mount or pole mount
- Box with waterproof circle, protection class IP65
- High quality ABS+PC plastic, all metal parts stainless steel
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance
- 2splice tray with transparent cover, each tray can fusion 8cores with 1 steel tube fix slot. 1×16 splitter tube can be choose.
- Cable clamp and fixture for entry and exit, and large redundant fiberstorage space, reasonable bend radius
- Output is Huawei Opti-tap SC adapter, with number mark to distinguish each easily.
- Laser mark, customer logo or cable port indication can be print on lid
Specification
| Model | CTO-16A-I | CTO-16A-II |
| Dimension (A*B*C) | 208*241*117mm | |
| Max.Capacity | 16 cores (single fiber) | |
| Cable entry | 1cable gland | 1 mid span |
| Cable diameter | Φ18mm | φ18mm |
| Cable exit | 16pcs Huawei Compatible Mini SC Reinforced adapter | |
| Splitter quantity | 1×16 or 2pc 1×8 steel tube | |
| Color | Grey | |
CTO-10A Splitter Distribution Box Dimension
Pack information
| Net weight | Inner box | Quantity / carton box | Carton box size | Gross weight/carton box |
| 1.3Kg | 29*23*13cm | 10pcs | 48*29*70cm | 13.5kg |
