Description
CTO-10-8P Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx telecommunication network system it can also provide feeder cable for the next SDSP after splitting. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
- Water-proof design with IP65 Protection level.
- Integrated with splice cassette and cable management system.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- Suitable forpre-Connectorized Cable Assemblies.
- 10ports cable entrance for FTTH drop cable.
- perform in accordance with IEC 61753-1 Table A.14.
- Identification table labeling inside the cover.
Applications
- FTTH accessnetwork
- Telecommunicationnetwork
- CATVnetworks
- Data communicationsnetwork
- Local areanetworks
Specification
Model | CTO-10-8P |
Size (Pic 1) | H×W×D = 176×222×79(mm) |
Material | PP+GF (Anti UV) |
Color | Black |
PR Connection Capacity | 10 Ports |
Adapter Type | SC |

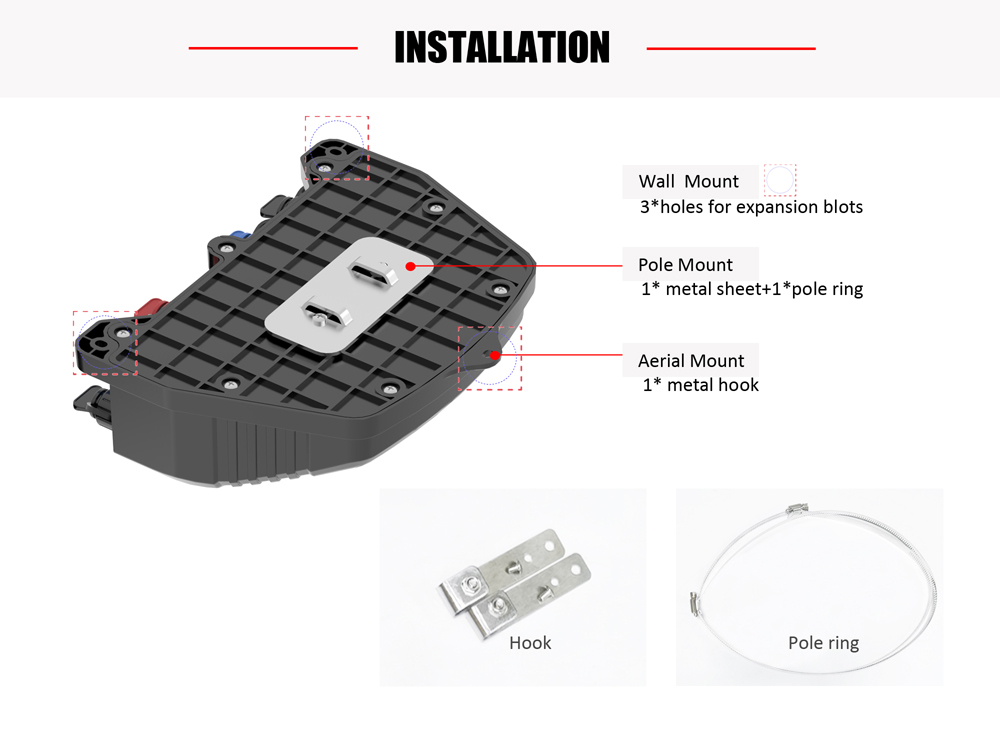

Installation Method | Wall Mounted & Pole Mounted |

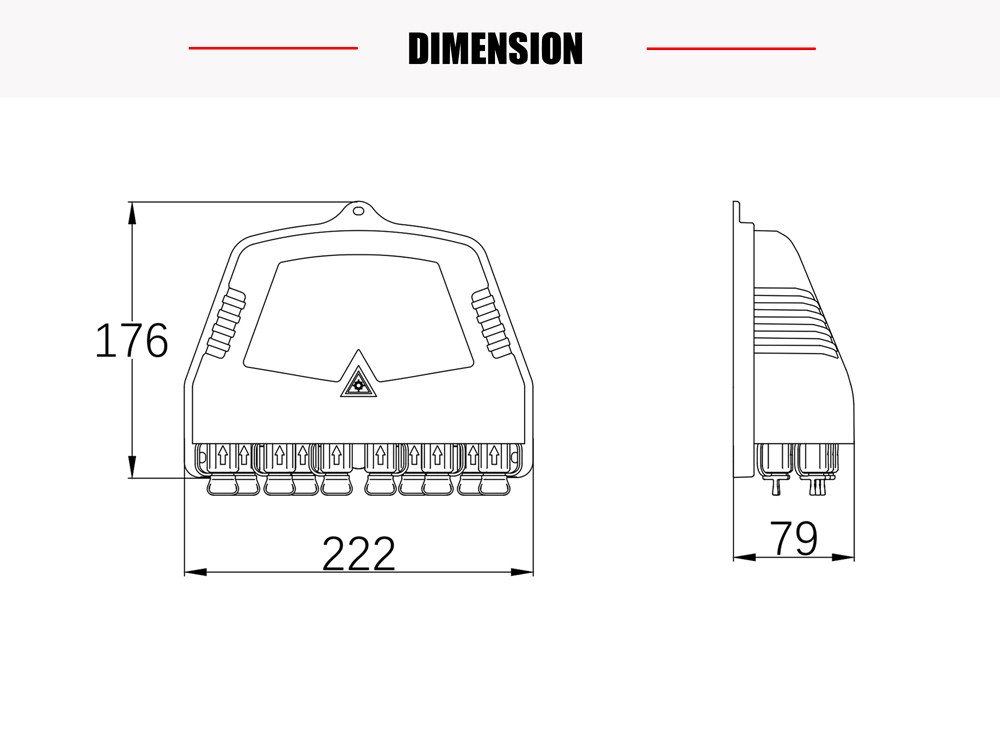

CTO-10-8P Fiber Distribution Box Dimension
![cto-10-8p fiber distribution box dimension](https://yingdapc.com/wp-content/uploads/2024/04/dimension.jpg)
