Description

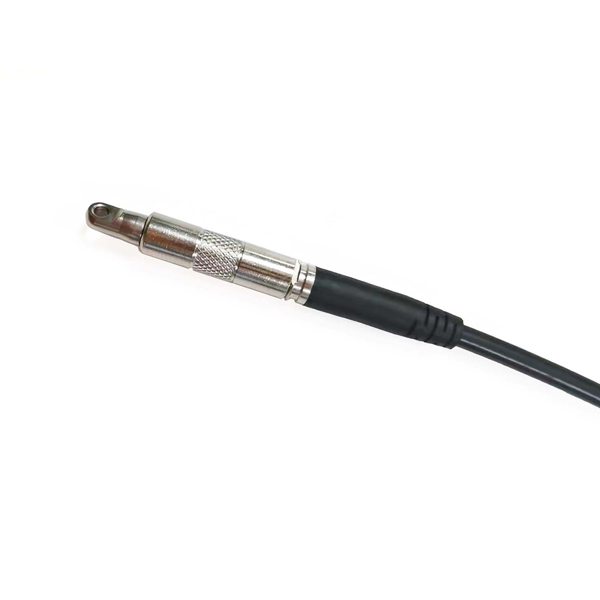

Bullet Head SC Patch cord is fiber optic patch cord with sc connectors at both sides, sc pigtails is available, but with metal head housing to protect the sc connectors inside, which is quite popular to use in pipleline or duct limited space, where the hole is less than 10mm diameter.

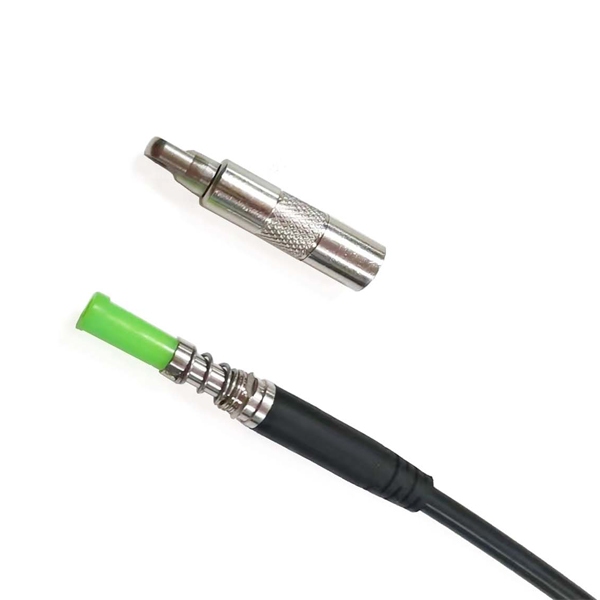

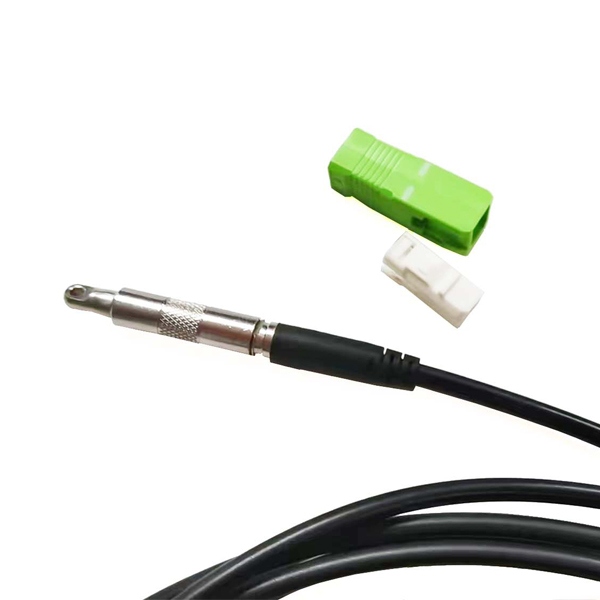

During field installation, you don’t need to take off the dust cap, after deploy the cable in place, only unscrew off the metal head, then put on the white body and green housing of the SC connector, it can finish installation, no need special tools, and which ensure the ceramic ferrule in clean and good optical performance. Meanwhile, there is pulling eye for the rope to pull at head of the housing and flexible rotating in any angel. The metal head is made of high quality and durability copper or zinc alloy material, which ensure the connector and fiber in good condition after pulling. And it is ideal solution for ftth upgrade network or access network.
Metal SC Patch Cord Features
Fast and convenient to operate, no need special tools
Special design for limited space less than 8mm
Unique crimping ensure high tensile strength
Compatible with general SC interface
Metal SC Patch Cord Application
FTTH access network
Fiber optic upgrade project
Narrow space construction
Pipeline construction
Metal SC Patch Cord Specification
Connector type | SC |
Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc |
Wavelength | 1260-1650nm |
Fiber cores | 1 core, 2 cores or multi-fiber |
Cable diameter | Φ3mm,Φ2.6mm, Φ2.4mm, Φ2.0mm,Φ1.6mm, Φ0.9mm or custom |
Polish method | UPC, PC, APC(8°), SPC |
Cable color | Yellow, white, blue, green, grey, red, black, aqua, orange, purple, etc. |
Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
Insertion loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
Return loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multimode Tested by JDS RM3750 |
Repeat ability | ±0.1dB |
Operating temperature | -40 ° C to 85 ° C |

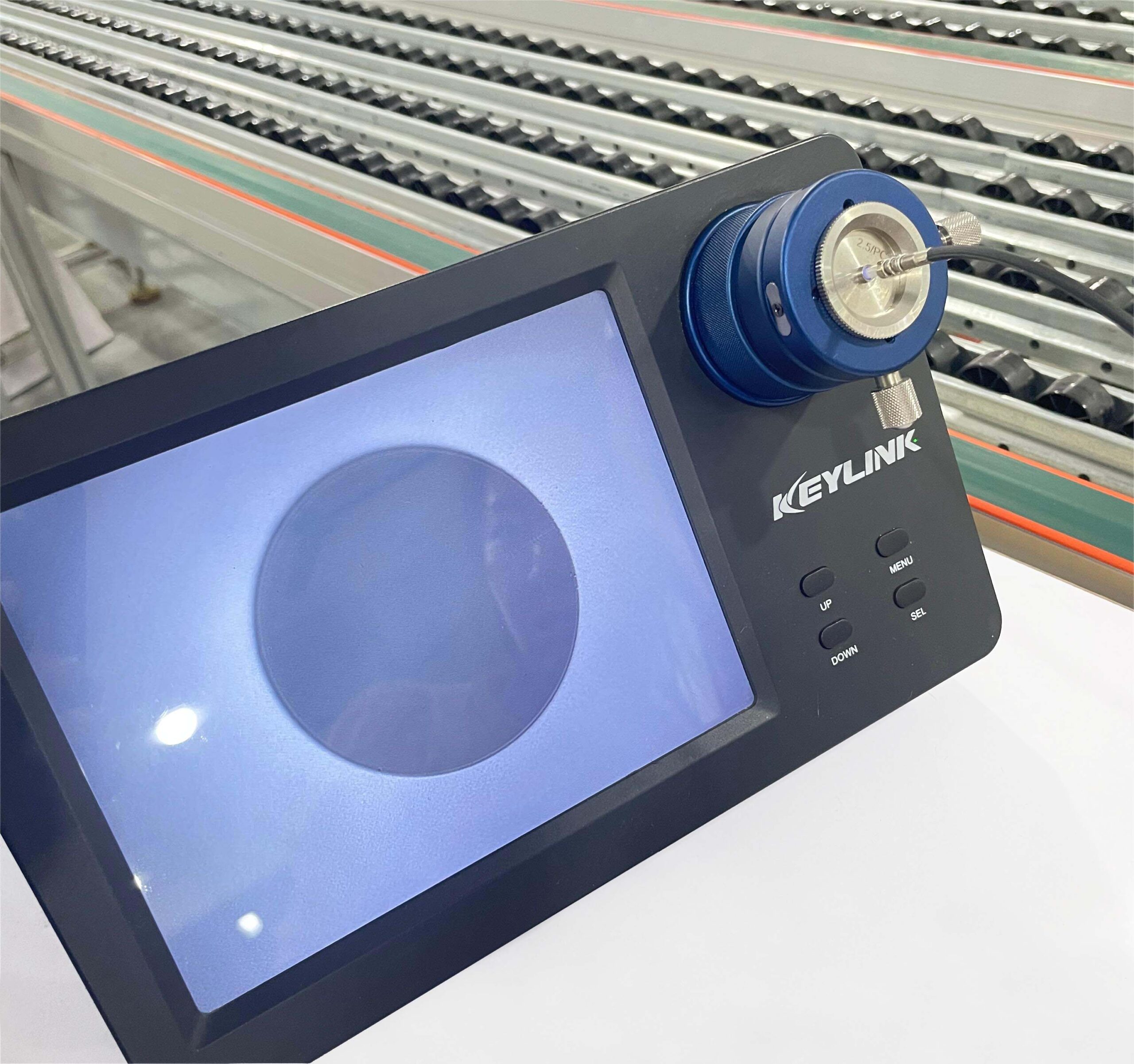

Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
