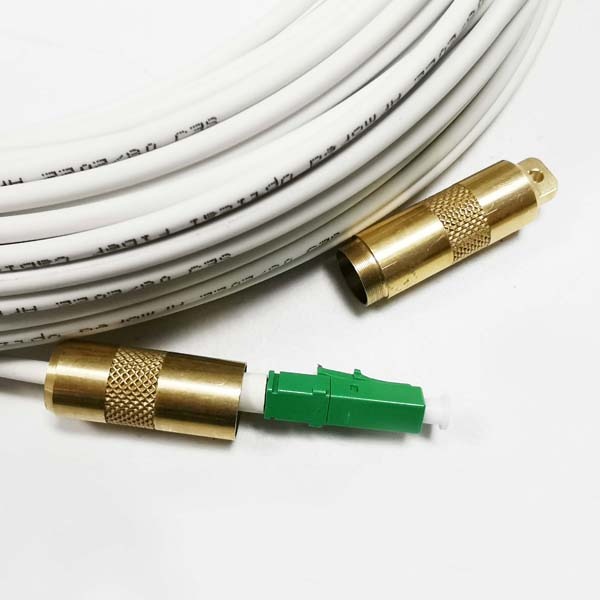

Wall Pushable SC To LC Patch Cord Single Mode SMF 9/125um 3mm Corning G657-A2 Fiber, 20 Meter TPU White

SC To LC Patch Cord Single Mode is a type of pushable fiber optic patch cord with SC or LC connectors at both sides, but with metal protective sleeve to protect the connectors inside when pulling in duct, it can greatly reduce the installation cost and time in pipeline or duct limited space deployment, where the hole is less than 10mm diameter.

Category Tag Brand:

Description

During field installation, you don’t need to take off the dust cap or add plastic housing after pull, only need to unscrew off the metal head, then finish installation, it contain the whole connectors inside of the metal head. Furthermore, there is pulling eye for the rope to pull at top of the head for rope to pull. The metal head is made of high quality and durability copper or zinc alloy material, which ensure the connector and fiber in good condition after pulling. And it is ideal solution for ftth upgrade network or access network.

Pushable SC To LC Patch Cord Features

  • Fast and convenient to operate, no need special tools
  • Special design for limited space less than 10mm diameter
  • Unique crimping ensure high tensile strength
  • Compatible with general SC LC interface
  • Metal protective sleeve are screw on and off, east and fast to operate

Pushable SC To LC Patch Cord Specification

Connector type SC
Fiber type G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc.
Wavelength 1260-1650nm
Fiber cores 1 core, 2 cores or multi-fiber
Cable diameter Φ3mm,Φ2.6mm, Φ2.4mm, Φ2.0mm,Φ1.6mm, Φ0.9mm or custom
Polish method UPC, PC, APC(8°), SPC
Cable color Yellow, white, blue, green, grey, red, black, aqua, orange, purple, etc.
Fiber radius of curvature ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2)
Insertion loss ≤ 0.1dB (Master)

≤ 0.3dB (Standard)

Tested by JDS RM 3750

Return loss UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode

UPC≥ 35dB (typ.38dB)-Multimode

Tested by JDS RM3750

Repeat ability ±0.1dB
Operating temperature -40 ° C to 85 ° C
Geometry Requirement

(For Single mode)

Ferrule End face Radius:

7mm ≤ R ≤ 12mm (APC)

10mm ≤ R ≤ 25mm (Standard)

Apex Offset ≤ 30 μm (Master)

Apex Offset ≤ 50 μm (Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1

Pushable Patch Cord Cable Structure

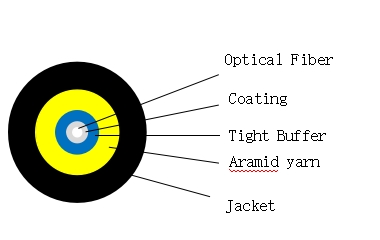

1 core 3mm indoor outdoor cable round for pushable patch cord SC to LC G657A2 TPU

Fiber Types

No. Item Unit Specification
G657A2
1 Mode Field Diameter 1310nm μm 8.4~9.2
1550nm μm 9.3~10.3
2 Cladding Diameter μm 125 ± 0.7
3 Cladding Non-Circularity % ≤ 0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 240 ± 5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm ≤ 1260
9 Before cabled Attenuation(max.) 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
10 After cabled Attenuation(max.) 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3



Cable Parameters

 Items  Specifications
Fiber Count 1
Tight-buffered Fiber Dimension 850μm±50μm
Material TPU
Color blue
Strength member Aramid yarn 4*1100
Jacket Dimension 3.0mm±0.2mm
Material TPU
Color Black

Mechanical and Environmental Characteristics

 Items Unit  Specifications
 Tension(Long Term) N 400(Fiber optic strain≤0.3%)
 Tension(Short Term) N 600(Fiber optic strain≤0.6%)
 Crush(Long Term) N/10cm 100
Crush(Short Term) N/10cm 500
Min. Bend Radius(Dynamic) mm 15D
Min. Bend Radius(Static) mm 10D
Operating Temperature -20~+70
Storage Temperature -40~+70
