Description
Power Meter Features
- Supports three interfaces SC FC ST, six wavelengths 850/980/1300/1310/1490/1550/1625, with adhesive shock resistance, automatic calibration, and fine workmanship.
- Shockproof and anti drop soft rubber, soft rubber protection, improves handheld comfort, and to some extent reduces damage caused by machine dropping.
- Automatic calibration, press the enter+Light button at the same time to enter calibration mode. The screen letter dBm will not be displayed. Press the Zero button to save. Exit calibration mode and the screen letter dBM will be displayed again.

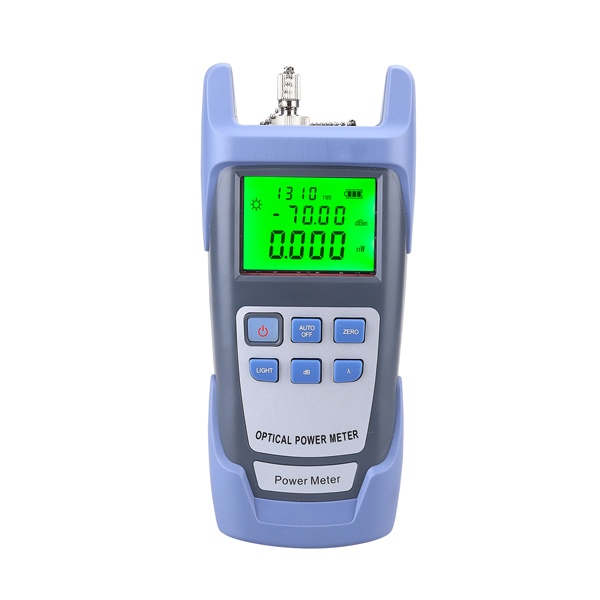

- LED display instructions identify the current working status, with measured power values in dB, dBm, and MW. The display identifies 6 wavelengths and the current working status, with an error controlled within 0.5dB through rigorous technological technology.
- It use alkaline battery no. 5 which will normally yield approximately 40hours of continuous operation.

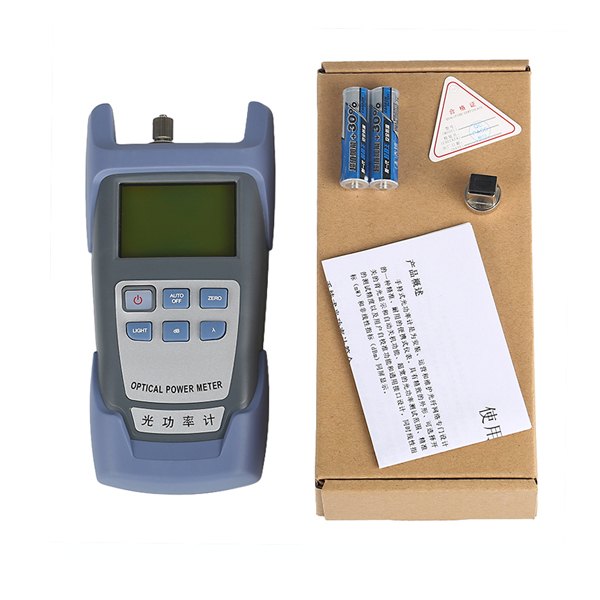

- It is supplied with a SC optical adapter and there are FC and ST available as options.
- Optional auto-off function is available
- Optional backlight switch can be set from the front panel.
- User can calibrate the meter by himself.
Power Meter Specification
| Power measurement range | -70~+10dBm |
| Probe type | InGaAs |
| Wavelength Range | 800~1700nm |
| Standard wavelength (nm) | 850,980,1300,1310,1490,1550,1625 |
| Display resolution | Linear display: 0.15, logarithmic display: 0.01dBm |
| Working temperature | -10 ~+65℃ |
| Storage temperature | -25 ~+70℃ |
| Automatic shutdown time | 10mins |
| Continuous working time of battery | Not less than 40 hours |
| Dimensions (nm) | 180*83*28 |

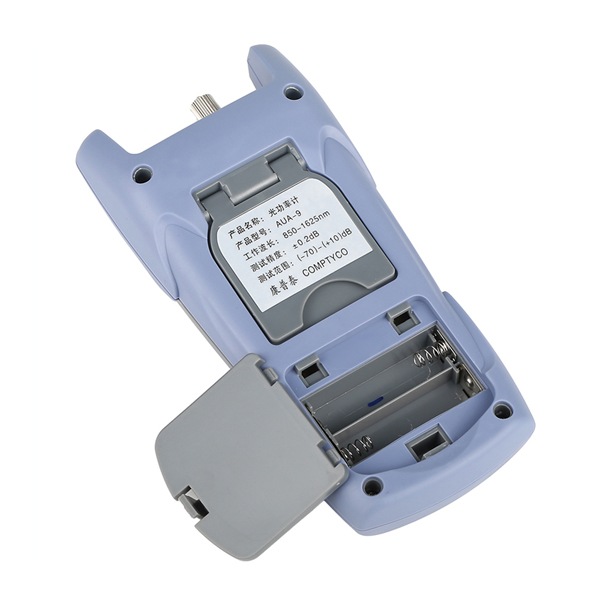

| Power supply | 2*rechargeable batter or 5*Alkaline battery |
| Net weight | 292g |
