AI9 Fiber Fusion Splicer, 0.02dB Loss, 6s Fast Heat, for SM/MM, with 5-inch Touchscreen & WiFi Logging

AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.

Description

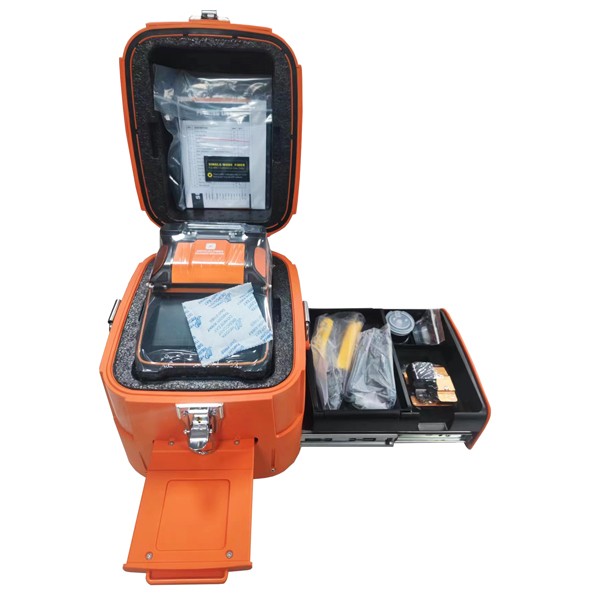

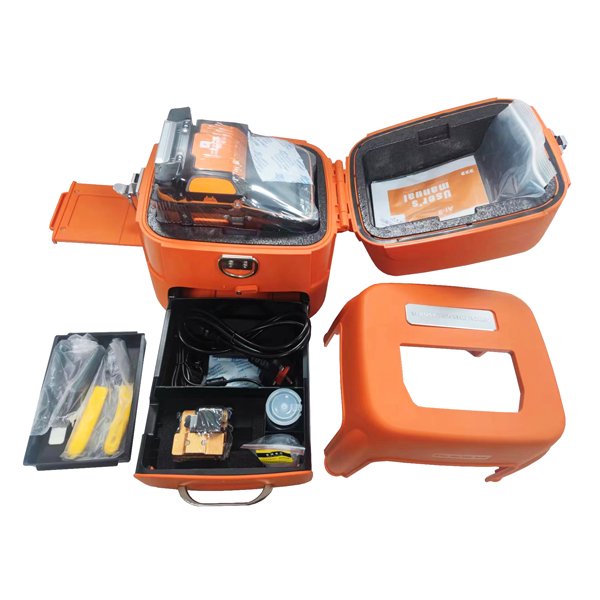

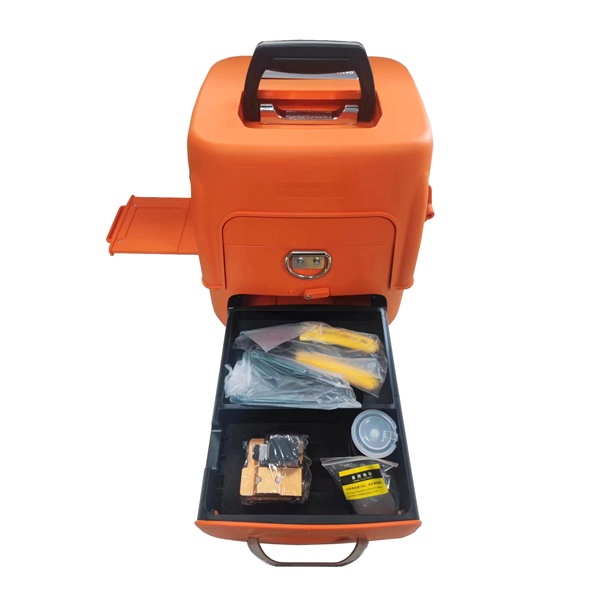

Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.



Basic Parameters

Fiber alignment Core/cladding alignment/Manual alignment Language Setting 10 languages to switch freely
Splicing time 5s Tension Test Standard 2N
Heating time 15s Fiber holders 3 in 1 fiber holder, SM, MM, bare fiber, pigtail,

rubber-insulated, multi fiber cable

Heating mode Automatic heating (Preheating) Magnification 300 for X or Y view, 150 for X or Y view
Focus mode Six motors Auto focus Screen 5 inch TFT color display
Applicable Fibers SM (G.652&G.657), MM (G.651), DS (G.657), NZDS (G.655) Splicing Mode Normal / high precision splicing
Splice Loss 0.025dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS) Splicing method Fully automatic, Step by step splicing
Control

technology

Real-time control and calibration of fusion ARC Splicing record

storage

Synchronize to the phone, the server to cloud storage unlimited
Return loss Better than 60DB Built-in battery 7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 260 times
Fiber diameter Cladding Diameter: 80-150μm

Coating Diameter: 100-1000μm

Power supply Input AC100-240V 50/60HZ, output DC13.5V/4.8A, the current power mode can be identified, real-time detection of battery power
Fiber Cleave Length Coating less than 250µm: 8-16mm

Coating less than 250-1000µm: 16mm

Operating

Conditions

Temperature -15~+50℃, humidity: <95% RH (no condensation)

Working altitude: 0~5000m. Resist max. wind speed: ≤ 15m/s

Software updates

Length

Automatically update、 Update by a key Shrinkable tube 60mm, 50mm, 40mm, 25mm
Boot time 1 second Product protection Waterproof, dust proof, shock-resistant
