Description
The polish film is a silica ADS polishing pad developed by NTT in Japan. The particles of 0.02 microns are uniformly coated on a substrate of a 3mil precision grade polyester film, and used for polishing optical fiber grinding terminals.
Features
- Smooth grinding of the plug end face reduces scratches to a minimum.
- During grinding, the end face of the inserted core does not adhere to pollutants.
- Compared with existing polishing pads, it has longer grinding times and more economical grinding costs.
- Provide UPC horizontal grinding.
Application
- Cutting angle, rough grinding, medium grinding, fine grinding of fiber optic connectors.
- Grinding and polishing of optical lenses, optical crystals, LEDs, and LCDs.
- Polishing of magnetic heads and hard drives.
Specification
| Product name | ADS 127um polish film |

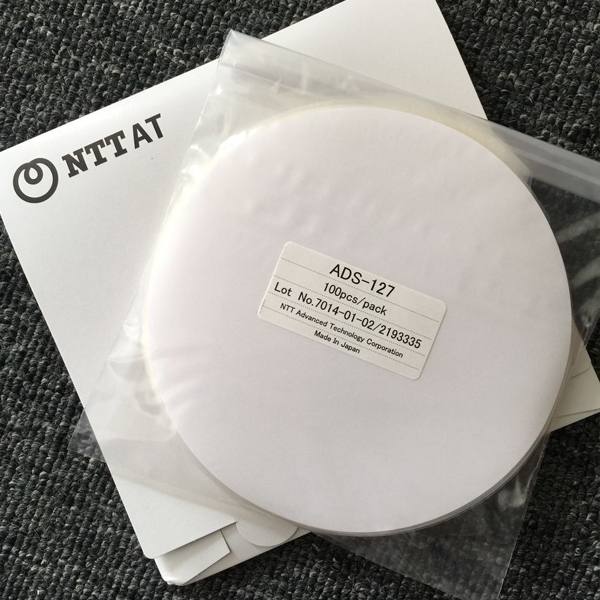

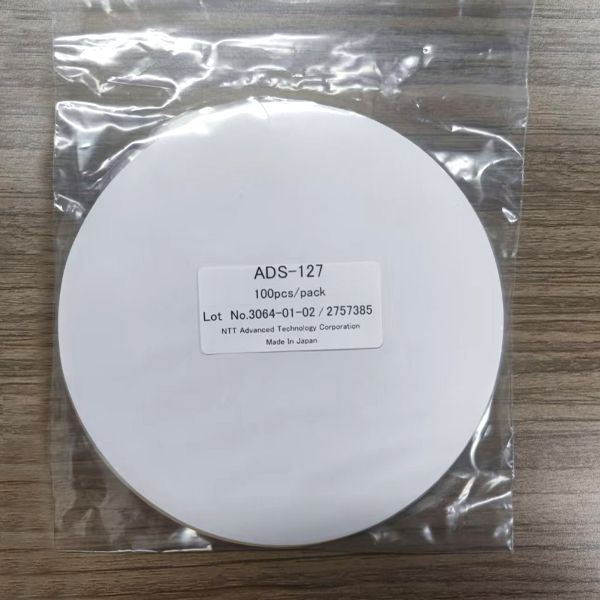

| Standard size | Disc type: 127 millimeters (5 inches) diameter (100 pieces/set)
Roll type: 140mm (5.5 inches) x 12m (1 roll/set) |

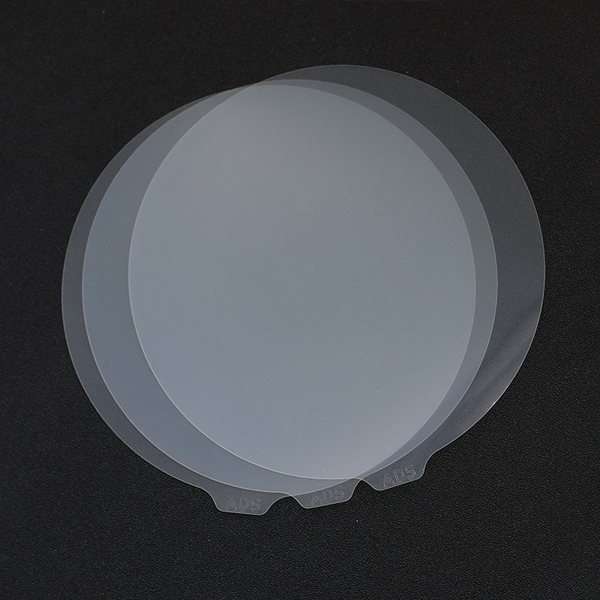

| Polishing pad color | ADS-NEXT: colorless, semi transparent (marked with “NEXT” in the middle of the disc)
ADS: colorless, semi transparent (marked with “ADS” in the middle of the disc) ADS-SKY: light blue, semi transparent (marked with “SKY” in the middle of the disc) |
| Base thickness | 75 microns (3 milliinches) |
| Applicable sleeve (ferrule) | 2.5mm diameter zirconia sleeve (ferrule)
1.25mm diameter zirconia sleeve (ferrule) |
| Storage conditions: | Temperature 10~30 ℃, humidity 30~60% |
