IL ≤20.7dB Cassette Splitter 1×64, Lc Apc Connectors 3.0mm Yellow Input And Output Fiber Pigtails, 1pc/Box Pack

A 1×64 ABS splitter is a fiber optic splitter. It features an ABS plastic module that houses mini steel tube splitters. Equipped with input and output pigtails, it evenly divides optical signals. It supports customization of 1×N, 2×N configurations, fiber connectors (SC, LC, FC, ST), fiber type, fiber length, and cable diameters. Widely applied in fiber optic termination boxes, fiber joint closures, and cabinets, it plays a key role in passive optical network signal distribution.

SKU YDPLC-AM-164-LALA Category ABS splitter Tags Optical Splitter, Plc Splitter Brand: YINGDA

Description

Description

Cassette Splitter 1×64 Features

Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
High Reliability and Stability
Conforms to Telcordia GR-1209&GR-1221, ROHS

Application of Cassette Splitter 1×64

Data Center Moves: Aligns with your migration needs—can split trunk fibers (e.g., 288-fiber vault feeds) into smaller 96/36/24-count pigtails for staged deployment.
FTTH/FTTx Networks: Distributes signals from a central OLT (Optical Line Terminal) to 64 ONUs (Optical Network Units).
Staggered Migration: Cassette’s plug-and-play design lets you add/remove splitters during multiple enclosure accesses, minimizing downtime.

Passive Cassette Splitter Technical Specification

Split ratio	1×64
Operating Wavelength (nm)	1260-1650nm
Insertion loss with connector (dB)	≤20.7
Uniformity	≤2.0
PDL(dB)	≤0.3
Return loss (db)	UPC≥50, APC≥55
Directivity (dB)	≥55
Operating Temperature(℃)	-40- +85
Storage temperature(℃)	-40- +85

Package Information of Cassette Splitter 1×64

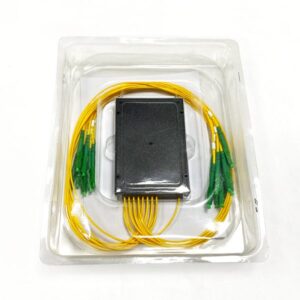

ABS cassette packaging: 130*80*29

Details of Cassette Splitter 1×64

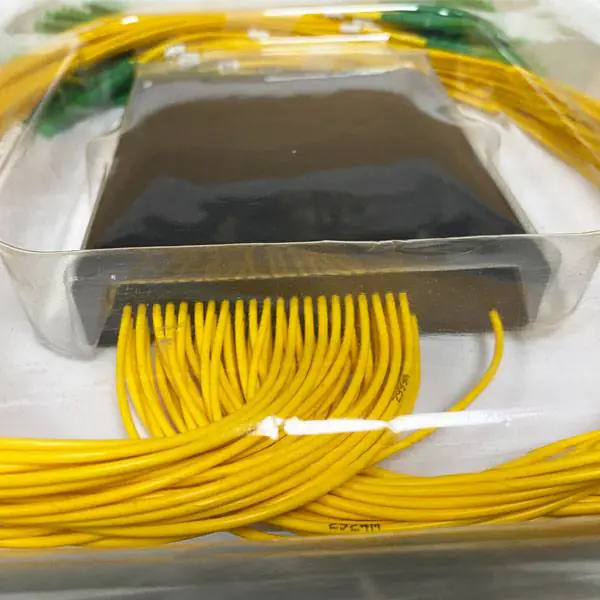

il ≤20.7db cassette splitter 1x64, lc apc connectors 3.0mm yellow input and output fiber pigtails, 1pc/box pack — 1 input port → 64 output ports, using LC/APC connectors (angled physical contact, minimizing back reflection for better signal integrity).
