Description
PLC Splitter Module 1×4 Features
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
- Conforms to Telcordia GR-1209&GR-1221, ROHS
Detailed Display of PLC Splitter Module 1×4

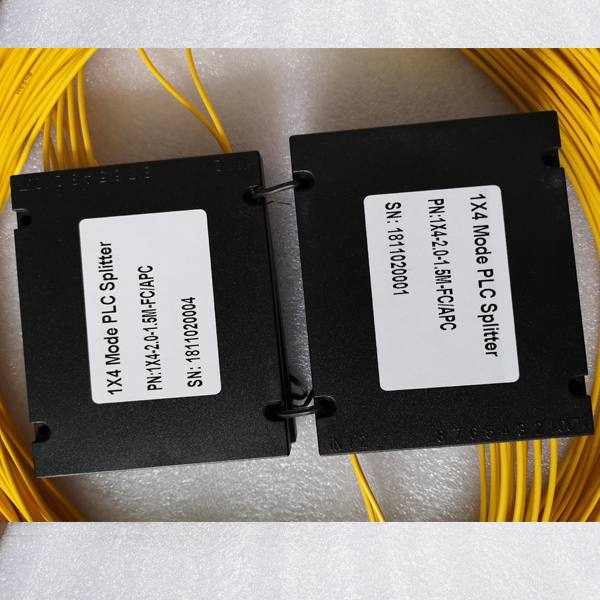

The middle part of the plastic box is where the labels are attached, including the information of Product Type, Part Number (P/N) and Serial Number (S/N). Some markings such as “In” and numbers “12345678” are to clearly identify the input and output cable positions, facilitating installation, commissioning, and maintenance.

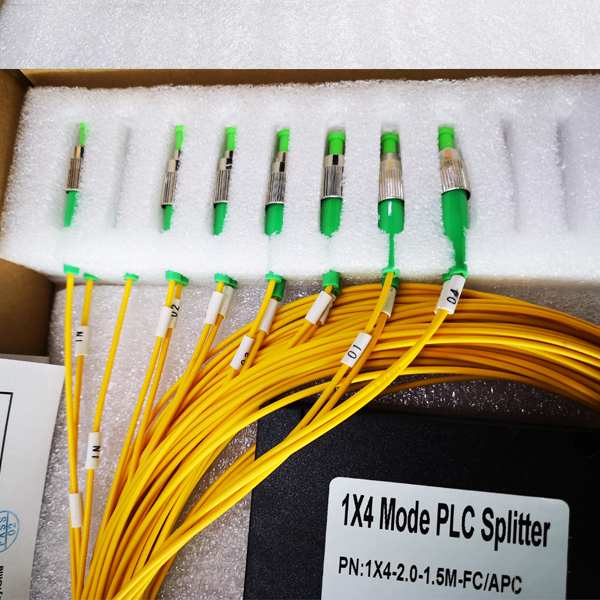

The remaining empty positions on the splitter enclosure can be customized with the customer-desired logo, which is conducive to brand promotion and product differentiation. There are yellow optical fibers attached, which are used for optical signal splitting. The enclosures have holes for hanging or fixing, enabling easy installation in relevant optical communication setups.
PLC Splitter Module 1×4 Technical Specification
| Split ratio | 1×4 |
| Operating Wavelength (nm) | 1260-1650nm |
| Insertion loss with connector (dB) | ≤7.6 |
| Uniformity | ≤0.8 |
| PDL(dB) | ≤0.2 |
| Return loss (db) | UPC≥50, APC≥55 |
| Directivity (dB) | ≥55 |
| Operating Temperature(℃) | -40- +85 |
| Storage temperature(℃) | -40- +85 |
