Description
ABS PLC Splitter 1×16 Features
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
- Conforms to Telcordia GR-1209&GR-1221, ROHS
ABS PLC Splitter 1×16 Module Technical Specification
| Split ratio | 1×16 |
| Operating Wavelength (nm) | 1260-1650nm |
| Insertion loss with connector (dB) | ≤13.8 |
| Uniformity | ≤1.0 |
| PDL(dB) | ≤0.2 |
| Return loss (db) | UPC≥50, APC≥55 |
| Directivity (dB) | ≥55 |
| Operating Temperature(℃) | -40- +85 |
| Storage temperature(℃) | -40- +85 |
Package Information of ABS PLC Splitter 1×16
ABS packaging: 100*80*10
Details of ABS PLC Splitter 1×16

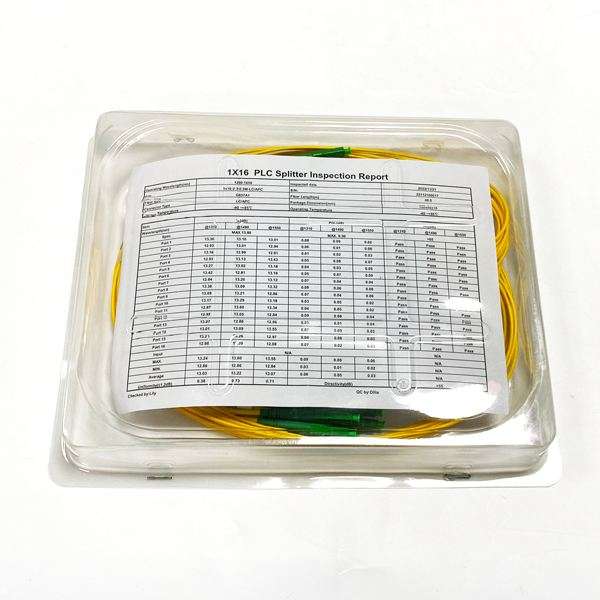

This 1×16 ABS PLC splitter comes in a transparent plastic box for protection and easy visual inspection. Inside, the yellow single-mode pigtails with green SC/APC connectors, the splitter. The box shields against physical damage during transit/storage. Pigtails and the splitter are fixed to avoid tangling/bending. Though not shown here, the splitter has “In”/number markings for cable positions and customizable logo spaces. Ideal for quick quality checks and secure storage, streamlining installation and traceability.
