Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
ABS PLC splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It’s mainly used for various connection and distribution products (outdoor fiber distribution box) or network cabinets.
Yingda can offer optical splitter in 1×2 1×4, 1×8, 1×16, 1×32 1×64 split ratio, and package can be mini module, ABS module, LGX modular, rack type, or closure type of optical plc splitter on different application.
ABS Module PLC Splitter Features
- Low Insertion loss
Low PDL - High Return Loss
- Uniform Power Splitting
- Compact Design
- Wide Operating Wavelength
- Wide Operating Temperature
- Excellent Environmental & Mechanical Stability
- Qualified Under Telcordia GR-1221 and GR-1209
ABS Module PLC Splitter Application
- FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON) - Local Area Networks (LAN)
- CATV Systems
- Test Equipment
Optical Splitter Specification
1×N, 2XN PLC Splitter
| Parameters | 1×2 | 2×2 | 1×4 | 2×4 | 1×8 | 2×8 | 1×16 | 2×16 | 1×32 | 2×32 | 1×64 | 2×64 | 1×128 | ||||
| Operating Wavelength(nm) | 1260～1650 | ||||||||||||||||
| Insertion Loss (dB)（P/S Grade） | 3.8/ 4.0 |
4.0/ 4.2 |
7.1/ 7.3 |
7.6/ 7.8 |
10.2/ 10.5 |
11.0/ 11.2 |
13.5/ 13.7 |
14.4/ 14.6 |
16.5/ 16.9 | 17.5/ 17.9 | 20.5/ 21.0 | 21.0/ 21.5 | 24.2/ 24.5 | ||||
| Loss Uniformity(dB) | 0.4 | 0.6 | 0.6 | 1.0 | 0.8 | 1.2 | 1.2 | 1.5 | 1.5 | 2.0 | 2.0 | 2.2 | 2.5 | ||||
| Return Loss (dB)（P/S Grade） | 55/50 | ||||||||||||||||
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.25 | 0.3 | 0.3 | 0.4 | 0.35 | 0.4 | 0.5 | ||||
| Directivity (dB) | 55 | ||||||||||||||||
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.4 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||
| Temperature Stability (-40～8℃)(dB) |
0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||
| Operating Temperature(℃) | -40～85 | ||||||||||||||||
| Storage Temperature(℃) | -40～85 | ||||||||||||||||
| Module Dimension (mm)(L×W×H) | 100×80×10 | 120×80×18 | 140×115×18 | ||||||||||||||
Note:
- Specified without connectors.
- Add an additional 0.15dB loss per connector
Splitter module Order Information
| Port configuration | Module type | Cable type | Fiber length | Input connector | Output connector |
| 101=1×2 | L=140x115x18,plastic | 09=0.9mm | 10=1.0m | 00=None | 00=None |
| 104=1×4 | M=120x80x18,plastic | 20=2.0mm | 15=1.5m | FC=FC/UPC | FC=FC/UPC |
| … | S=100x80x18,plastic | 30=3.0mm | 20=2.0m | FCA=FC/APC | FCA=FC/APC |
| 202=2×2 | MM=mni module | … | … | … | |
| 204=2×4 | XX=customized | ||||
| … |
Application
The ABS Module Splitter can be used in different fiber optic boxes, like optical distribution box, splice enclosures, wall mount distribution box or 19inch rack.
Splitter in optical distribution box Splitter in optical splice closure
Splitter in optical fiber patch panel Splitter in wall mount distribution box
Splitter Module Product Details
To make them uniform, there are nubmer rings on all connectors boot, IN for input pigtail, and output 1 2 3 4 .. for output pigtails, so it is easy to connect with connectors and check optical line internet if there is problem.
Each splitter module will configure a test report, and 100% qualified splitter can be delivered after test.

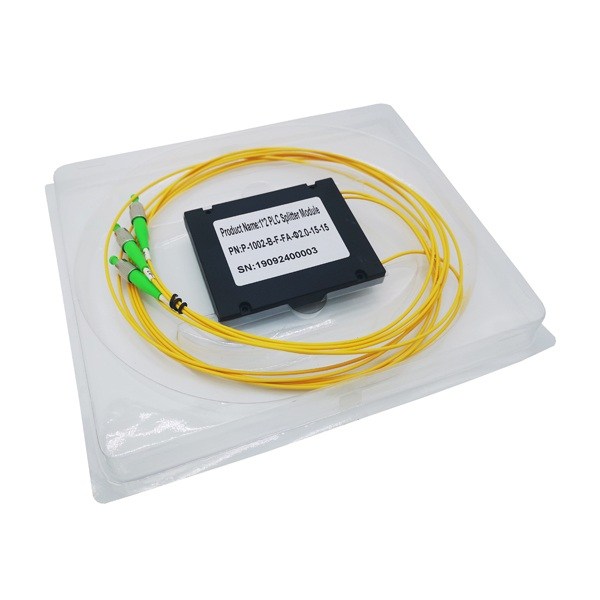

The splitter module will be with a label sticker on the ABS surface to describe the product details and serial number mark the production date and order, also there are 4 holes for mounting on the boxes where to install them.
All the ABS module with number mark IN for input pigtail, and 1 2 3 4 … to identify the output pigtails, the diameter can be 900um, 2.0mm, and 3.0mm with loose tubes to protect bare fiber inside.
