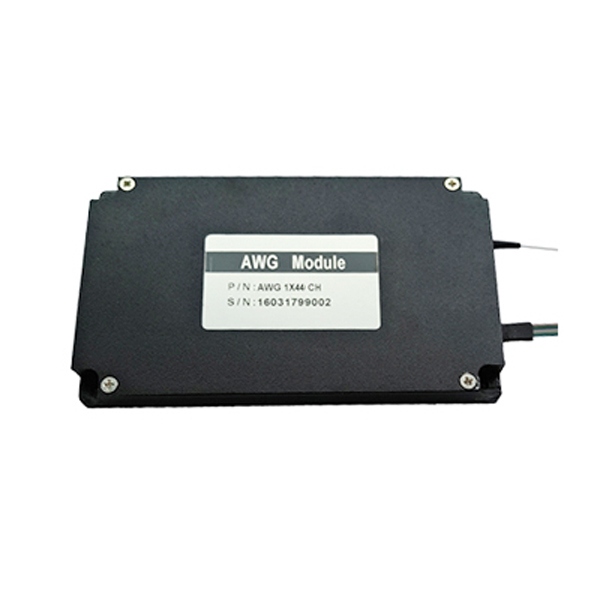

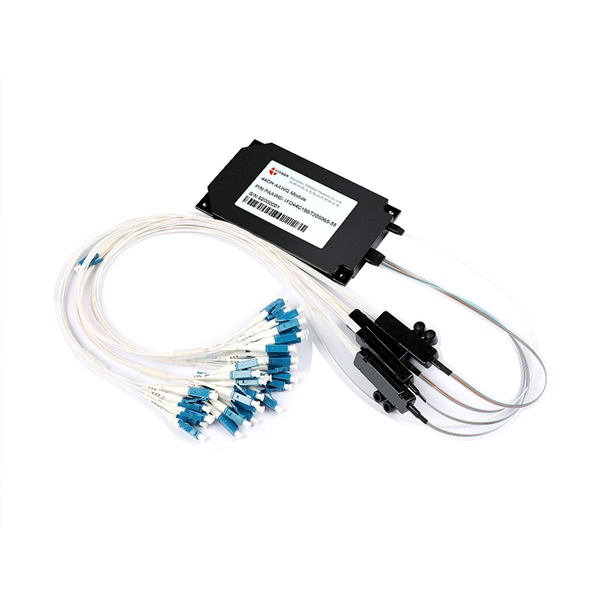

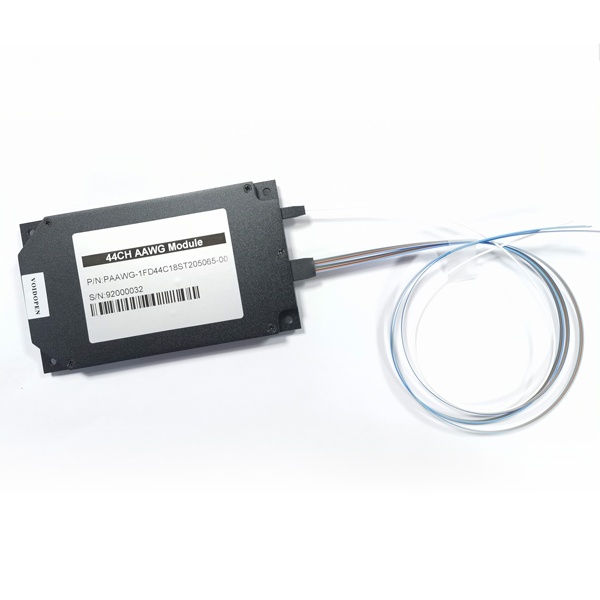

44CH AAWG Module 100G, with awg standard and waveguide, Breakout Kits LC connectors 1 meter

AWG (AWG) is the preferred technology in Dense Wavelength Division Multiplexing (DWDM) systems. It is a grating formed by an array of waveguides with equal length differences, utilizing the ability to split waves.

Category Tags , , Brand:

Description

Features

  • Low Insertion loss
  • High channel Isolation
  • Good channel-to-channel uniformity
  • High Reliability and Stability
  • Telcordia Compliant
  • RoHS Compliant



Applications

  • Broadband networks
  • ROADM
  • CATV system
  • DWDM System



Specifications

Parameters Unit Value
Operating Wavelength nm 1525~1565
Pass Band Type / Flat-top Gaussian
Channel Port Number / 40 40
Center Wavelength / ITU Grid (C21 ~C60) or Customized
Channel Space nm 0.8
Center Wavelength y Accuracy nm +/-0.05
Pass band @1dB nm ≥0.38 ≥0.2
Pass band @3dB nm ≥0.58 ≥0.4
Port Insertion Loss dB ≤6.0 ≤3.8
Isolation Adjacent dB ≥25 ≥27
Non-adjacent dB ≥30 ≥30
Uniformity dB ≤1.5
Ripple dB ≤0.5 ≤1.5
PDL dB ≤0.5
RL dB ≥40
Directivity dB ≥50
Power mw ≤300
Fiber Type / G657.A1 with 0.9mm loose tube
Fiber Length(m)

(Ribbon Fiber+Fan-out Fiber)

m 0.5+/-0.1 or Customized
Connector / LC/UPC or Customized
Operating Temperature -5~65
Storage Temperature -40~85
Housing mm 120*70*11
