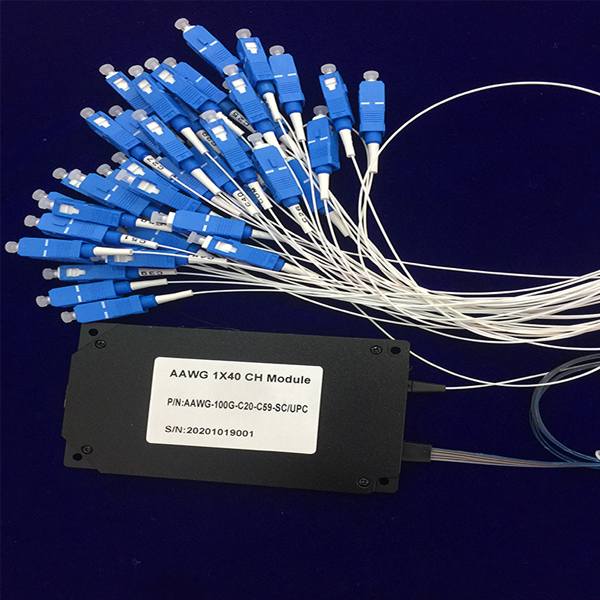

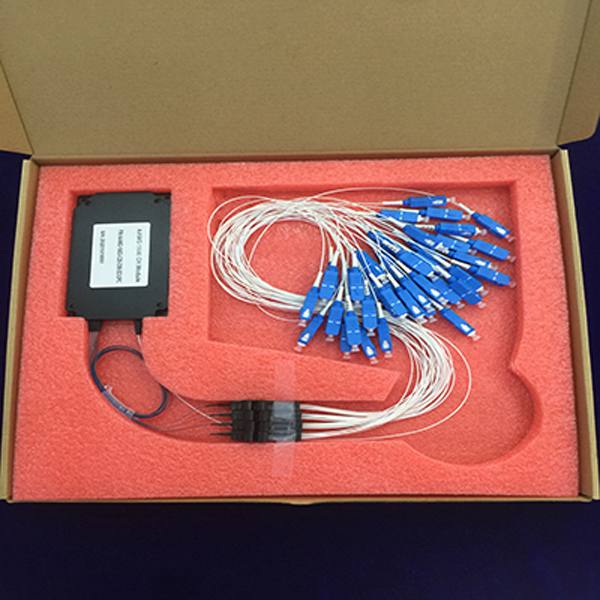

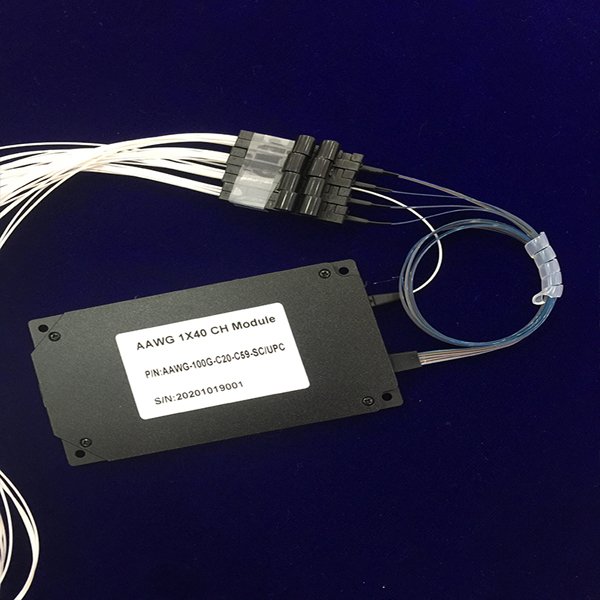

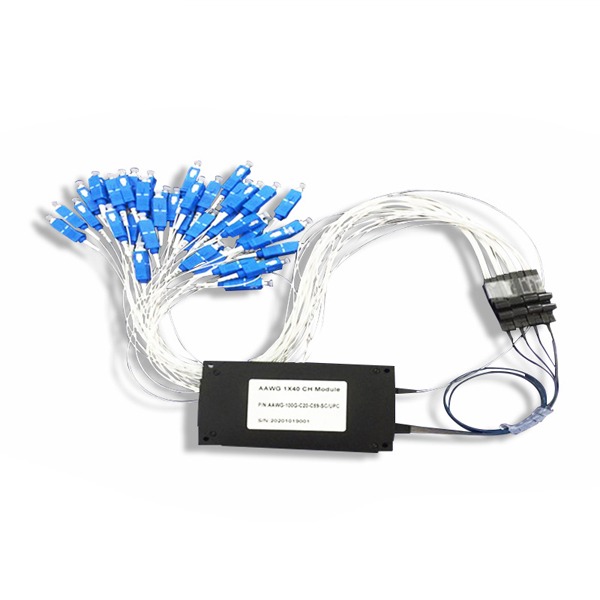

100G AWG Module 40CH SC UPC, 4 fanout ktis, SC/UPC Connectors, white 1.5 meter 0.9mm

AWG (AWG) is the preferred technology in Dense Wavelength Division Multiplexing (DWDM) systems. It is a grating formed by an array of waveguides with equal length differences, utilizing the ability to split waves.

Category Tags , , Brand:

Description

AWG Module Features

  • Low insertion loss
  • Low PDL
  • Multiple packaging methods



AAWG application

  • DWDM transmission system
  • Optical add/drop multiplexing



Specification

Operating wavelengthC20C21C22C23C24C25C26C27
Insertion loss (dB)<3.52.512.642.622.582.622.702.512.53
Operating wavelengthC28C29C30C31C32C33C34C35
Insertion loss (dB)<3.52.622.632.662.502.512.552.572.53
Operating wavelengthC36C37C38C39C40C41C42C43
Insertion loss (dB)<3.52.632.612.552.542.662.532.632.62
Operating wavelengthC44C45C46C47C48C49C50C51
Insertion loss (dB)<3.52.602.692.612.602.522.532.632.62
Operating wavelengthC52C53C54C55C56C57C58C59
Insertion loss (dB)<3.52.562.662.522.542.592.632.612.66
Channel ripple(dB)Max0.7
Polarization dependent loss (dB)Max0.5
PMD (ps)Max0.1
IsolationAdjacent(dB)min25
Non-adjacent(dB)min30
Directivity (dB)min50
Return loss (dB) (all ports)min45
Total crosstalk (dB)max22
Uniformity (dB)max1.5
Power handling (mW)max300
Fiber length (m)1M (ribbon -0,5meter, 900um -0,5meter)
Fiber typeSMF-28e
ConnectorCOM:SC/UPC, OTH:sc/upc
Operating temperature-5 ~+70 ℃
Storage temperature-40 ~+85 ℃
Package dimension120x70x12mm
