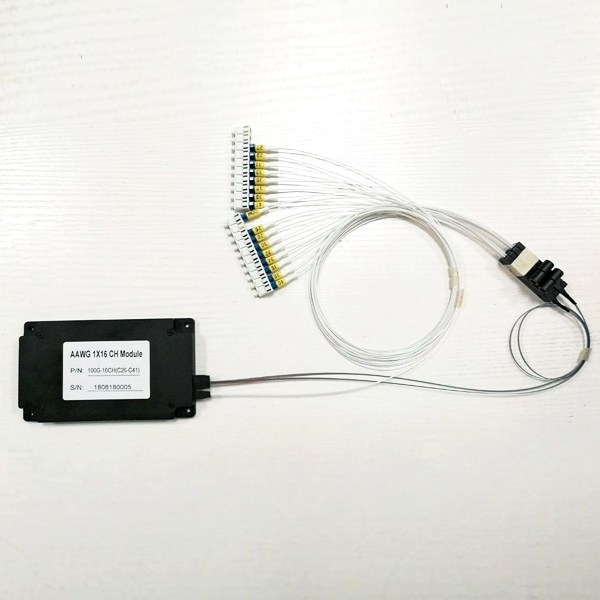

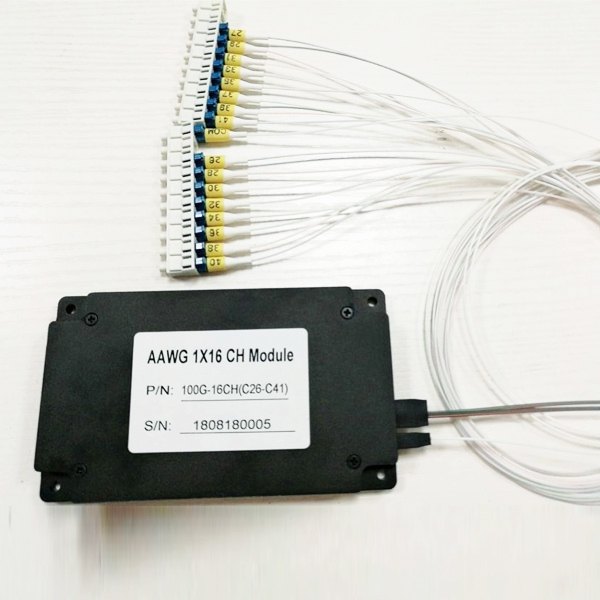

100G AWG Module 16CH C26-C41 LC UPC connectors, single mode 1meter white 09mm pigtails 1×16

AWG has filtering characteristics and multifunctionality, which can obtain a large number of wavelengths and channels, achieving multiplexing and demultiplexing of tens to hundreds of wavelengths. By using an N × N matrix form, N different optical signals can be transmitted simultaneously at N wavelengths, and can be flexibly combined with other optical devices to form multifunctional devices and modules. In addition, AWG also has high stability and cost-effectiveness, making it very suitable for high-speed and high-capacity DWDM systems.

Category Tags , , Brand:

Description

AWG (AWG) is the preferred technology in Dense Wavelength Division Multiplexing (DWDM) systems. It is a grating formed by an array of waveguides with equal length differences, utilizing the ability to split waves.



AAWG features

  • Low insertion loss
  • Low PDL
  • Multiple packaging methods



AAWG application

  • DWDM transmission system
  • Optical add/drop multiplexing



AAWG Optical Technical Parameter

ParameterMinMaxUnitComment
Input channel1
Output channel40  16,32,48 channels available
Channel spacing100 GHz
Reference pass band-12.512.5GHz
Wavelength accuracy-5050PmRelative to ITU Grid
1dB bandwidth0.2(G),0.4(F)nmgaussion type

F-flat top type

3dB bandwidth0.4(G),0.6(F)nm
I.L. 6dBWorst case in ITU passband
I.L uni. 1dB
Ripple 0.7dBLoss variation in ITU passband
PDL 0.5dBMax. Value in ITU passband
Adjacent crosstalk25 dBWorst case in ITU Passband
Non-adjacent crosstalk30 dBWorst case in ITU Passband
Total crosstalk22 dBCumulative crosstalk of all other channels
Return loss40 dB
Maximum continuous optical power 250mwMaximum input optical power
Chromatic dispersion(CD)-20+20Ps/nm
PMD 0.5ps
