32 CH 100G Athermal Arrayed Waveguide Grating AWG Module C20-C51 Channel Single mode LC UPC Connectors

Yingda offers a full range of non thermal AWG (Athermal Array Waveguide Grating, abbreviated as AAWG) products, including 50GHz, 100GHz, and 200GHz non thermal AWG. Non thermal AWG, also known as AAWG, can exhibit different waveforms in DWDM systems, generally divided into Gaussian and Flat top types.

Category Tags , , Brand:

Description

AWG (AWG) is the preferred technology in Dense Wavelength Division Multiplexing (DWDM) systems. It is a grating formed by an array of waveguides with equal length differences, utilizing the ability to split waves.



AAWG features

  1. Low insertion loss
  2. Low PDL
  3. Multiple packaging methods



AAWG application

  1. DWDM transmission system
  2. Optical add/drop multiplexing



AAWG Optical Technical Parameter

ParameterMinMaxUnitComment
Input channel1
Output channel40  16,32,48 channels available
Channel spacing100 GHz
Reference pass band-12.512.5GHz
Wavelength accuracy-5050PmRelative to ITU Grid
1dB bandwidth0.2(G),0.4(F)nmG-gaussion type

H-F-flat top type

3dB bandwidth0.4(G),0.6(F)nm
I.L. 6dBWorst case in ITU passband
I.L uni. 1dB
Ripple 0.7dBLoss variation in ITU passband
PDL 0.5dBMax. Value in ITU passband
Adjacent crosstalk25 dBWorst case in ITU Passband
Non-adjacent crosstalk30 dBWorst case in ITU Passband
Total crosstalk22 dBCumulative crosstalk of all other channels
Return loss40 dB
Maximum continuous optical power 250mwMaximum input optical power
Chromatic dispersion(CD)-20+20Ps/nm
PMD 0.5ps

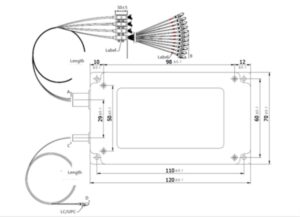

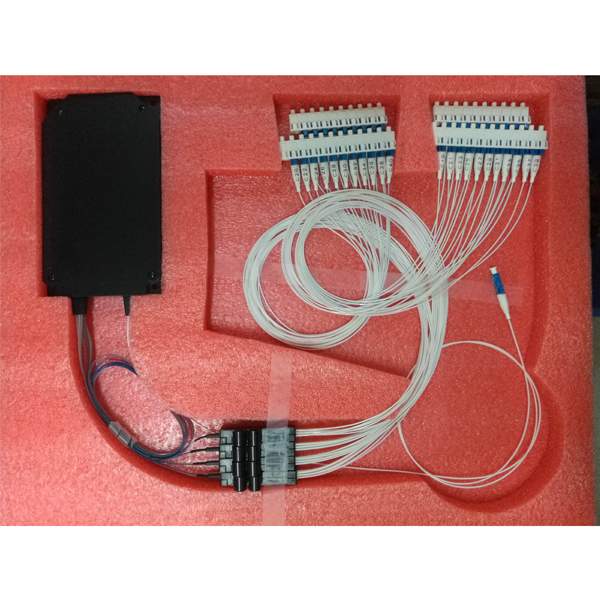

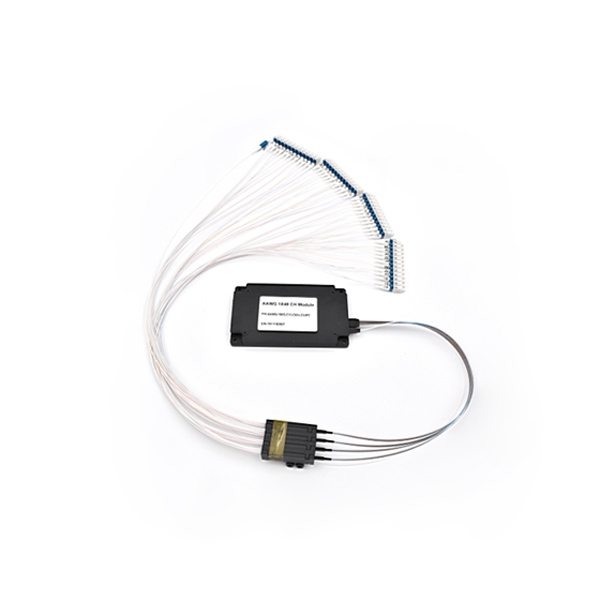

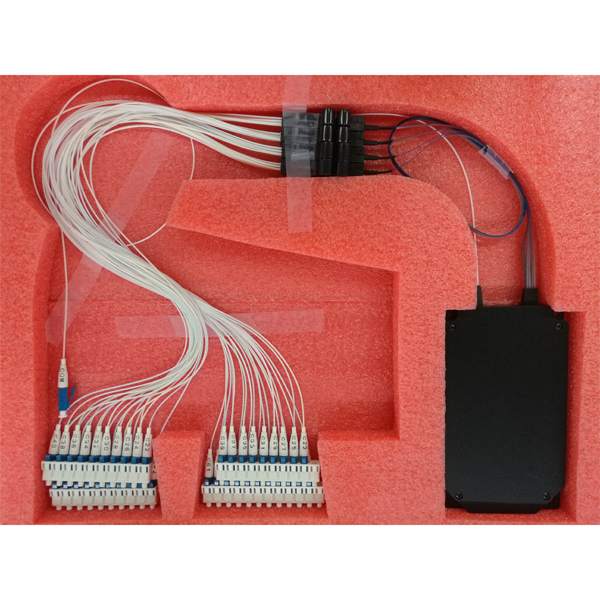

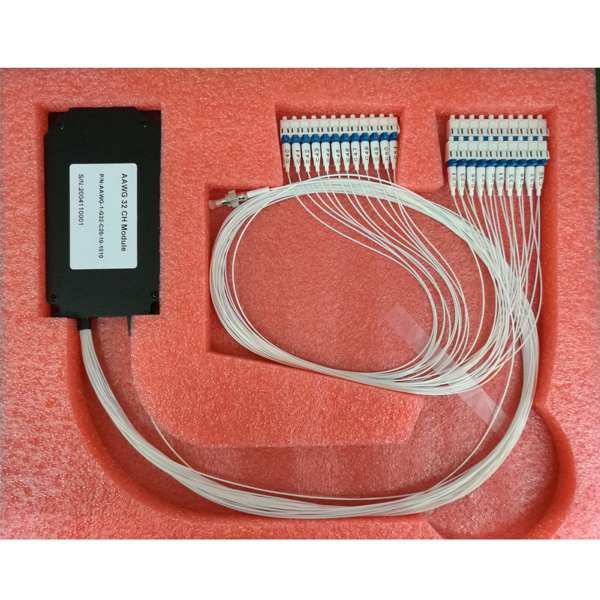

Detailed Display
